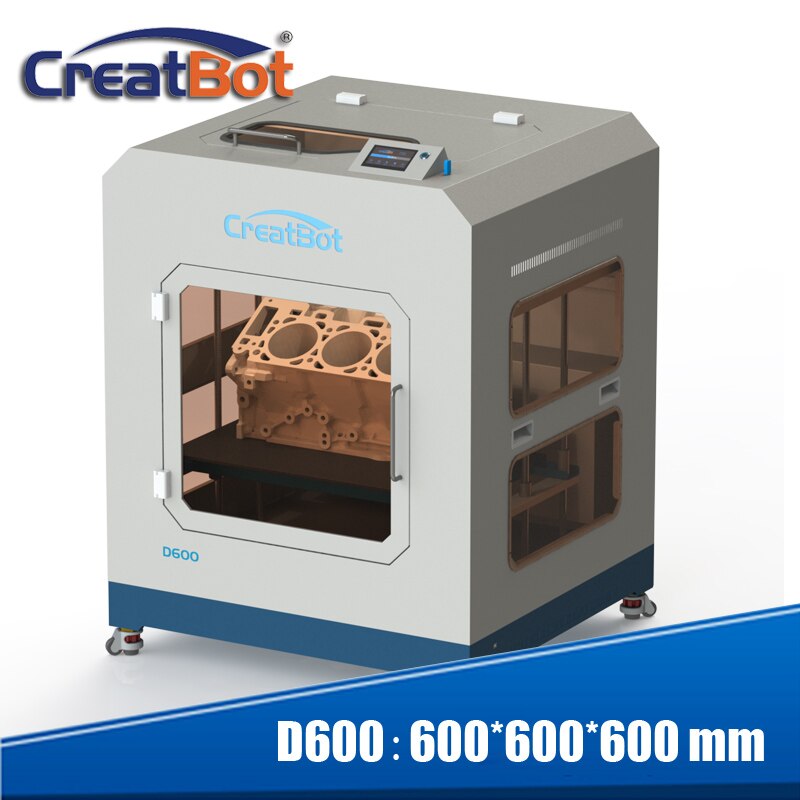

Creatbot D600 3d printer
Features

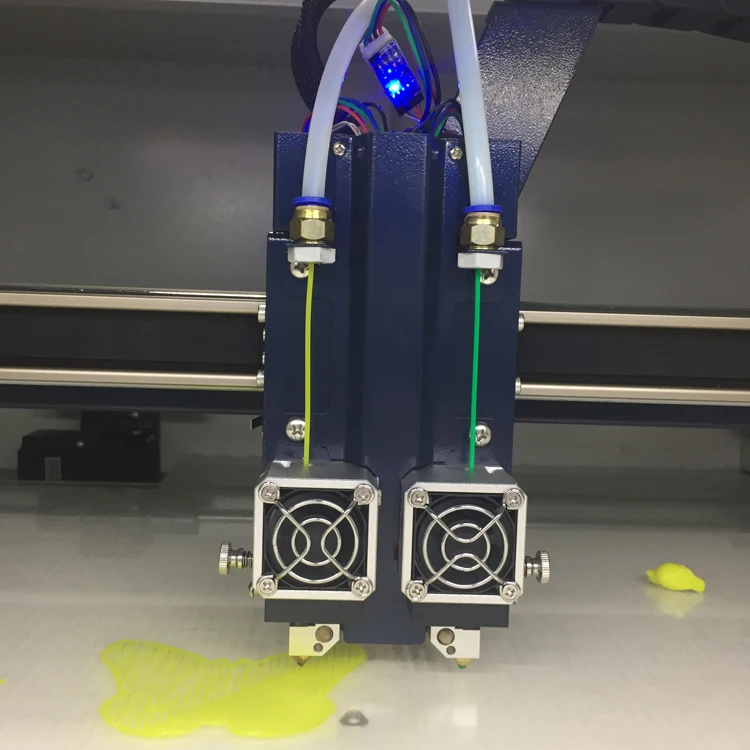

TEMPERATURE UP TO 420°C
We are the first one to publish 420°C ultra-hight temperature nozzle to mass market and it possess exclusive patent. This kind of nozzle allow to print with a variety of filaments. And the fantasy blue metal cooling sink can efficiently cool down the heatbreak. The nozzle height can also be micro adjusted.
HIGH PRECISION
We exclusively research and develop the extruder feeding system support high-speed printing, and accuracy can reach high to 0.05mm, it allows to extrude filament steady without block.
Precision up to:0.05mm Speed up to: 120mm/s
STABILITY
The whole-steel body not only ensure the stability when printing but alst greatly extend the usage period. the optimization and cooperation of overall structure ensure the sustainable and efficient operation. The first batch of CreatBot 3D printers have been working for 5 years and more than 8000 hours.

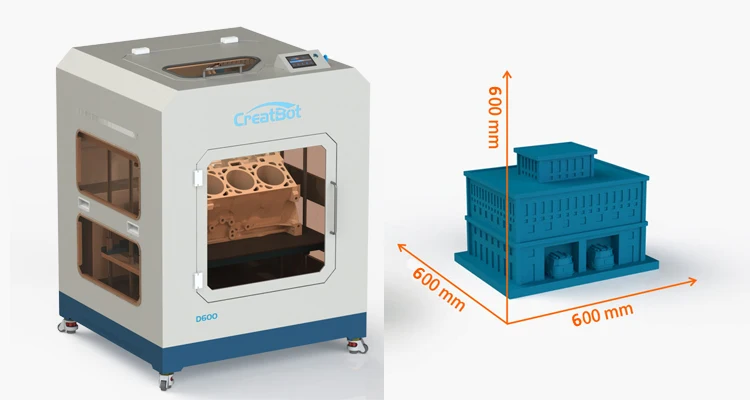

HUGE BUILD VOLUME
D600 is a real industrial level 3D printer, it can print largest build volume of 600*600*600mm, 30 times bigger than it of other ordinary 3D printer in nowadays mass market.
CreatBot D600 build volume: 600*600*600mm
FULLY ENCLOSED CHAMBER
The fully enclosed chamber can block all external interference. Also this frame can reduce noises, at the same time to provide constant temperature, so that the model won’t deform.

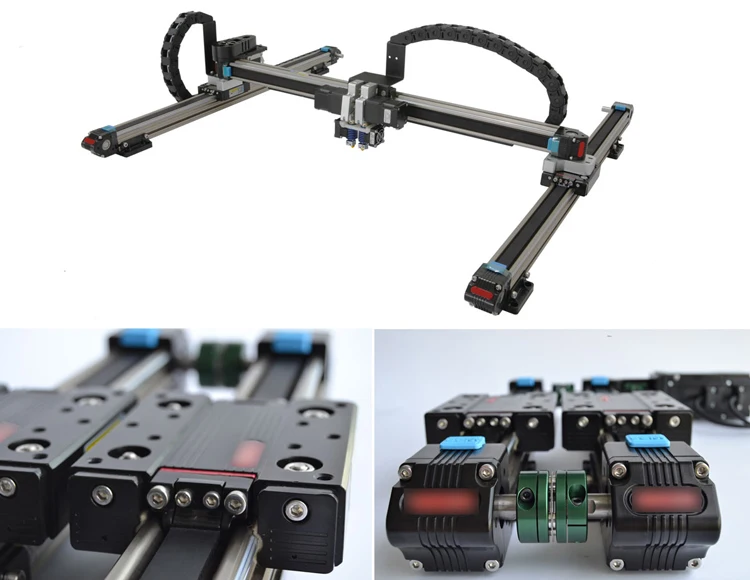

ACCURATE LINEAR GUIDE RAIL
The accurate linear rail structure can print models in accuracy high reach to 50 times higher than the other ordinary optical axis printers in mass market. This structure offers accurate filament feeding, so that can print large model fast and perfectly.

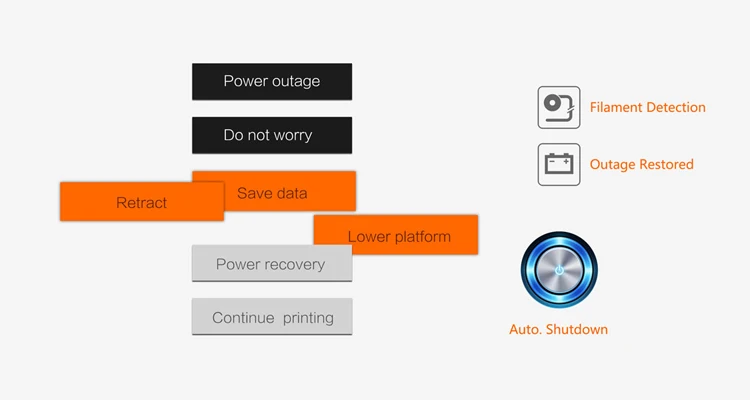

OUTAGE RESTORED and amp; FILAMENT DETECTION
The printer will automatically memorize the current position and save the print data, lower the working platform and withdraw filament when the power off suddenly.
EFFICIENT PLATFORM
The platform surface is attached with the 3D printing special stickers, and the printer has vertical thermal conductivity so that can support high thermal efficiency. You can set the parameters to turn off the hot bed automatically after the specified number of layers.

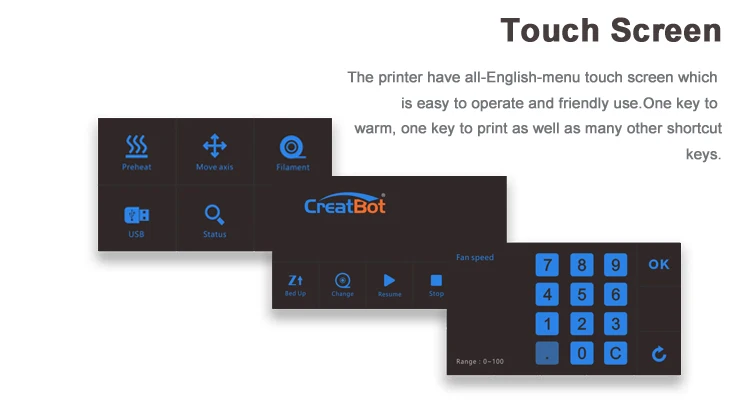

EASY TOUCH SCREEN
The printer has a 4.3″ touch screen, more easy to operate. We also provide One-Key to preheat, print, home as well as other shortcut keys.
FILAMENT and amp; APPLICATION
We supply high quality CreatBot filament. The models below are commissioned by the cultural relics protection organization and printed by D600 with 5kg big roll of PLA within 30 hours. No extra cares or change filament.
TECHNICAL SPECS
CreatBot D600
PRINTING
Print Technology:Fused Deposition Modeling
Build Volume:600*600*600 mm
Number of Nozzles:Dual
Resolution:0.05mm
Layer Resolution: 0.05mm
Filament Diameter: 1.75 mm
Filament Compatibility: PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA, PEEK, etc.
Nozzle Diameter: 0.4mm (0.3, 0.5, 0.6, 0.8, 1.0mm)
TEMPERATURE
Max. Nozzle Temperature: 420°C
Max. Bed Temperature: 100°C
SPEED
Best Printing speed: 45mm/s
Max. Printing speed: 120mm/s
Max. traveling speed: 120mm/s
MECHANICAL
Construction: Power-Coated Steel, Aluminum Casting for Motion Components, POM
Build Plate: Microcrystalline Ceramic Panel
Build Plate Leveling: Factory Leveled, Adjust Manually
Extruder: Geared motor (1:10 rate)
X Y Positioning Precision: 5.08 Microns
Z Positioning Precision: 1.25 Microns
ELECTRICAL
Power Requirements: 100-240V, 50-60Hz
Max. Power: 1000W
Screen: 4.3″ Touch Screen
Connectivity: USB
SOFTWARE
Software Bundle: CreatWare Multi-language
Supported File Types: STL, OBJ, AMF
Operating Systems: Windows (7,8,10) Mac OS X
SPECIAL FUNCTION
Outage Restored: Sava data when power is off
Filament Detection: Pause printing when filament run out
Automatic Shut-down: Turn off the power automatically when printing is complete
SIZE and amp; WEIGHT
Product Dimensions and amp; Weight: 915*845*1085mm 125Kg
Packing Size and amp; Weight: 1000*1030*1360mm 190Kg (Pallet)
Feedback
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory which specialized in manufacturing 3d printer. Creatbot is our own brand.
2.Q: Could you do OEM, and how can be your distributor?
A:We can provide OEM service, and OEM MOQ is 5 sets. Welcome to be our distributor, please kindly contact us for more details to cooperate.
3.Q:How can I buy?
A:- You can place bid at our aliexpress online store directly.
– You can contact with our sales Jessie to ask for an Proforma Invoice, and make payment.
4.Q:What’s the Payment term?
A:Payment term: T/T before shipment. Please order on Aliexpress directly.
5.Q:How about your transport packing? Is it possible to damage the printer during the transportation?
A:We have rich experience on international transportation. All the packing are extra thickness carton filling with protective 6 cm PE foam and waterproof membrane. No damage happened during transportation until now.
6.Q:What’s the shipping way?
A:Via DHL, TNT, FedEx, EMS, UPS, by air, by sea…etc. as you required. Our default way is express, if you want to ship by air or sea, please contact us, we can lower shipping charge to you.
7.Q:What’s the delivery time?
A:Usually it takes about 5-7 working days after payment received, it depends on the quantity.
If any reasons to make delivery delayed, our sales will notice you immediately when you make payment.
8.Q:Do your company have after-sales service?
A:Yes, One year warranty is available. And we have professional technician, if you have any problems, you can chat online with us or send email to us, we provide life-long time technicial support to each customer.
9.Q: Do you inspect the finished products?
A: Yes, Each step of production products will be came out inspection by QC department before shipping.
10. How can I know model quality printed by your machine?
A: You can send us STL form model, we will print it out and let you see the printing quality.
