FY-1600SE:

Auto HOT/COLD laminator ,  Multi- function ,  Single hot/cold laminator

High-performance laminator suitable for industrial applications.it allows laminating ,mounting and incapsulating prints,applying

application tape and double-sided adhesive,compatible with all kinds of cold laminating film on the market.

Suitable for:

Printed exible materials,Rigid displays,cardboard(packaging),car warpping ,floor graphics,backlit displays ,Graphics for

exhibitions,events banner roll-up and amp;Display pop-up table displays ,etc.

Material: linerless film,liner film



Advantages :



 1. Professional sturdy and robust laminator designed to guarantee every day high quality results great speed

2. 64’Aluminum shafts (total 5 shafts)for easy loading and unloading of the rolls

3. It can support big and heavy rolls with diameter up to 200mm thanks to the increased distance between rollers and support shafts

4. Heated upper roller with preset electronic temperature regulation-standard on Fayon 1600 model(room-60℃)

5. Ideal for mounting images on panels even of large dimensions,for incapsulations or for applying at the same time a plastic lm and a double-sided adhesive for mounting

6. Intuitive set up parameters thanks to the user-friendly control panel .

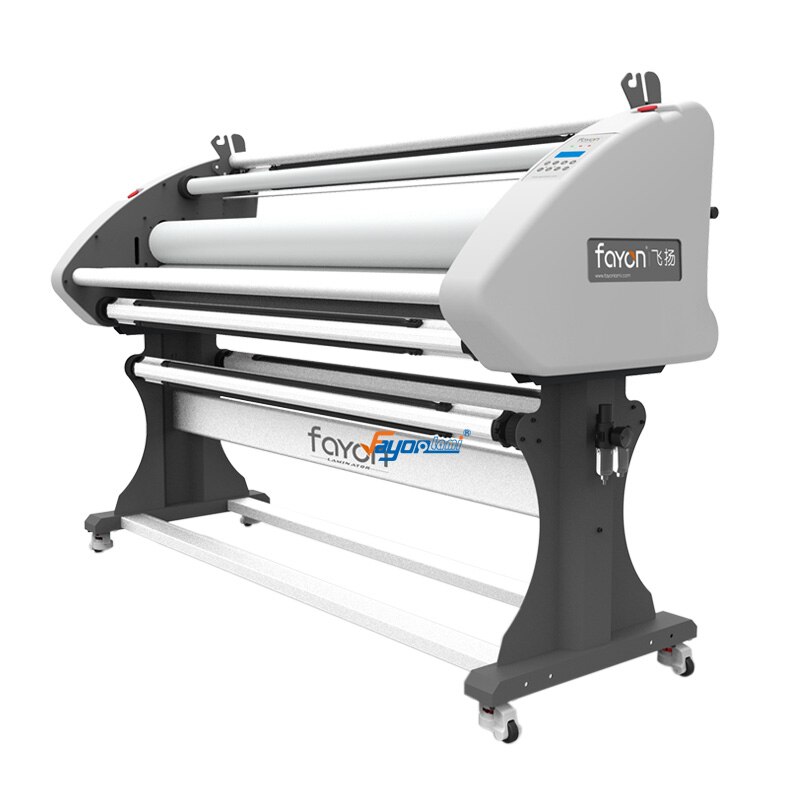

Photos of Fayon Hot and Cold Laminator

Specification of  Fayon Hot and Cold Laminator



Model Number FY-1600SE
Max laminating width 1600mm
Max laminating thickness 35mm
Max speed 15m/min
Heating infrared
Preheating time 10-15min
Roller upgrade Aircylinder
Power input 0.8-1.0kw/h
Volt 110/220v
Roller material     silicon
N.W 250KG
Size 225cm (L) * 80cm (W) * 90cm (H)
Warranty 1 year





Product Details

Application:

Laminating film on to outdoor photo, car sticker, graphic images, etc.

Fit to linerless cold film, traditional cold film, PET Polymer film.

The hot laminator is to use cold pressing process, cold mounted machine will cold framed film surface mounted and pictures, make pictures have anticorrosive, waterproof,

resistance to ultraviolet light erosion, can keep fresh and do not fade, not yellow, can make the image more longevity strong stereo feeling,improve the artistic appeal of

pictures. Widely used in modern marriage gauze, art photography, computer painting and calligraphy and painting, the sea, and newspaper advertising pictures, worked on

the files and information work. Cold is framed picture production processing technology, cold mounted machine is an ideal tool to complete the process.
