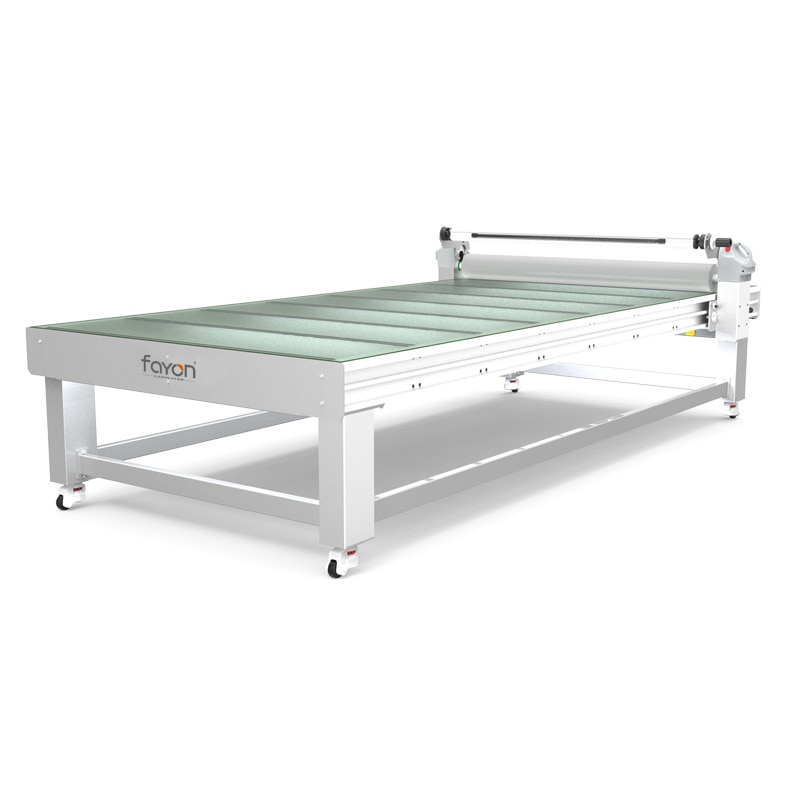

Introduction of Fayon Flatbed Laminator:



FAYON flatbed laminator can help you do many laminating works without wrinkles or bubbles.Even oversize prints can be finished easily.What’s more,it can be run by only one operator,make your work more efficient.

FAYON flatbed laminator for KT board or wood or glass is your best choice.

The flatbed applicator can let you mount large format print and self-adhesive film to many substrates like acrylic, rigid boards, corrugated plastic, metal plate, banners.



Features
✓ LED table lighting system
✓ Tension Media feed shafts
✓ Heat assisted roller
✓ Solid steel chassis
✓ Built in silent air compressor
✓ Side media roll holders

Advantages
✓ Reduce production time dramatically
✓ Consistent high quality work flow
✓ Time savings equals more profit
✓ Ergonomically designed, easy to use
✓ Only minimal training required to operate
✓ Requires only one person to operate



Application:

Mounting

It only takes one person to mount digital prints or adhesive stickers on to many form of sub-straights. Mount on foam board, corrugated panels, metal panels, banners and glass, all without bubbles.

Laminating

The Surface table can also be use for post processing laminating in cold or heat assist modes.

Pre-masking

One person can pre-mask up to 60 inches wide or depending on the width of your table. Not a 2 person job anymore.

Work-Station

Of course the Surface can also be used for any of your signage uses. Trimming graphics, doing layouts, weeding. The Surface can be a great support for your shop in speeding up jobs and efficiency.

Specification of Fayon Flatbed Laminator



Model FY-1325 FY-1530 FY-1737
Max laminating size 1300*2500mm 1500*3000mm 1700*3700mm
Max laminating thickness 50mm 50mm 50mm
Operation type Manual Manual Manual
Max temperature 60℃ 60℃ 60℃
Roller moving Pneumatic Pneumatic Pneumatic
Preheating 10-15 min 10-15 min 10-15 min
Power consumption 0.8-1.0kw/h 0.8-1.0kw/h 0.8-1.0kw/h
Pressure range 0-0.8Mpa 0-0.8Mpa 0-0.8Mpa
N.W 660kgs 880kgs 1000kgs





Delivery

1. The machine  is large and heavy, without special requirement , we  send it by sea shipping.

2. For different countries , the sea shipping time will arrange from 1 week to 1 month or longer , please consult our sales before delivery.

3. Bill of lading will be send to pick up package at seaport.

4. Free sea shipping offered. But customers need to pay import tax, destination seaport fee (such as loading charge , LCL, THC…..) , customs clearance fee.

5. If customers have shipping agent in China, pls consult our sales for FOB/EXW price.
