Hema Q2 Dental Wares Washing Machine Medical Disinfection Machine
The machine uses dynamic power water spraying technical to wash the out and inner space of dental hand piece and wares. The working procedure is controlled by MCU, during different washing steps, the pump will spray pressure hot water combined with lytic enzyme, disinfectant and polishing agent to the surface of the inner and out space of hand piece from multiple directions, and at the final step high temperature in the cabin will dry the out surface of washed hand piece.

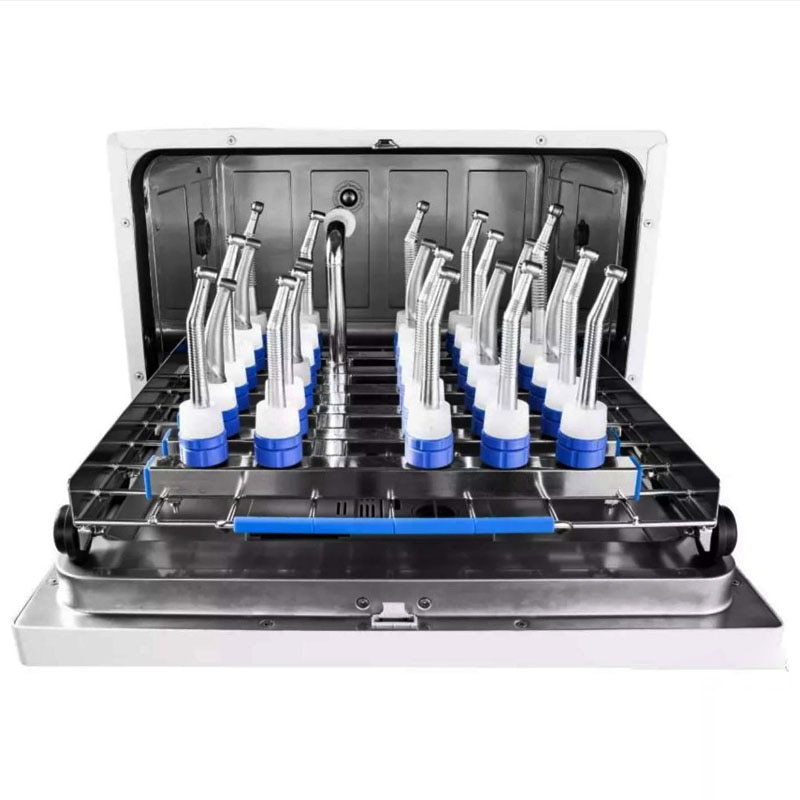

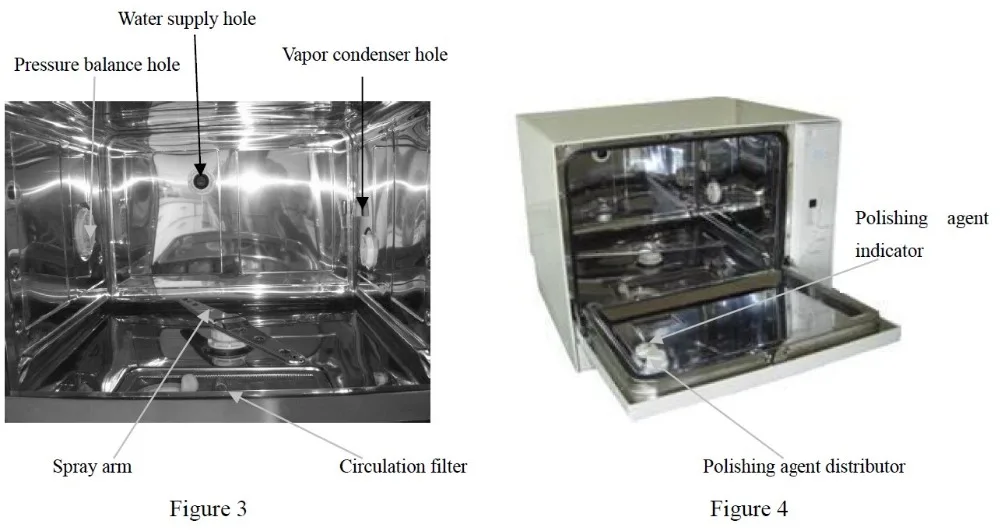

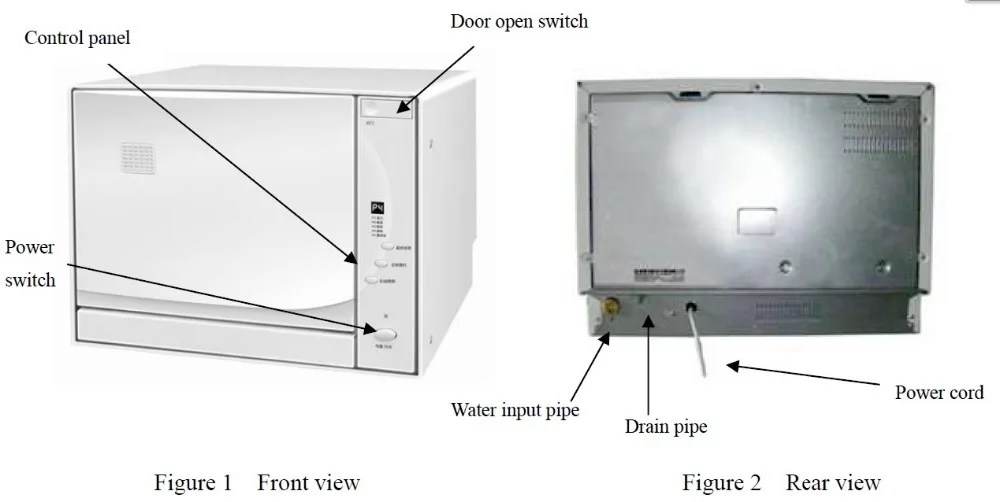

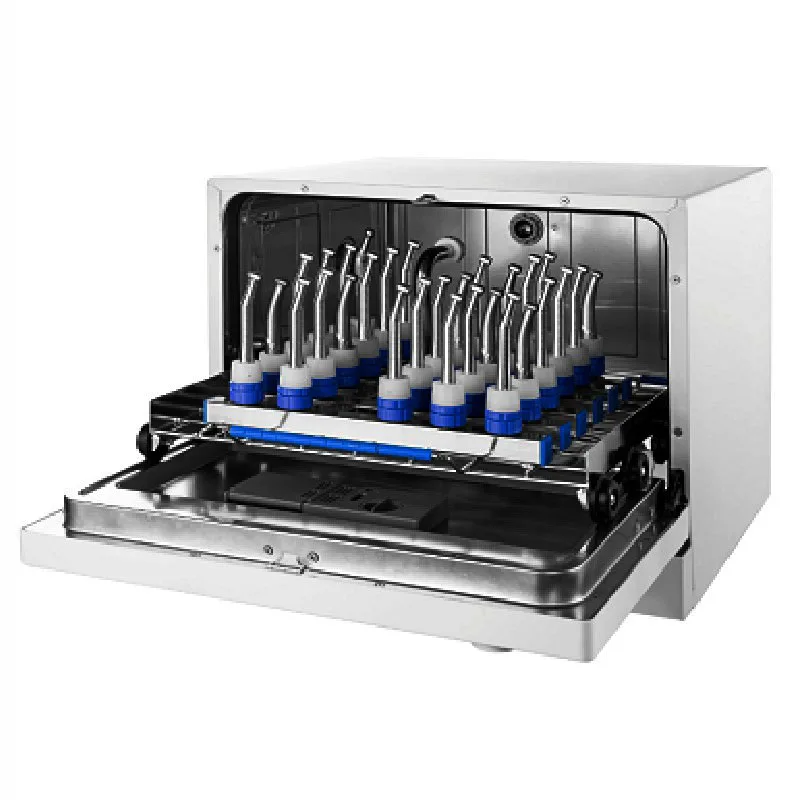

Application: The product is for dental hand piece and ware’s washing, the front view, rear view and inner space of the product are showed in below photo.

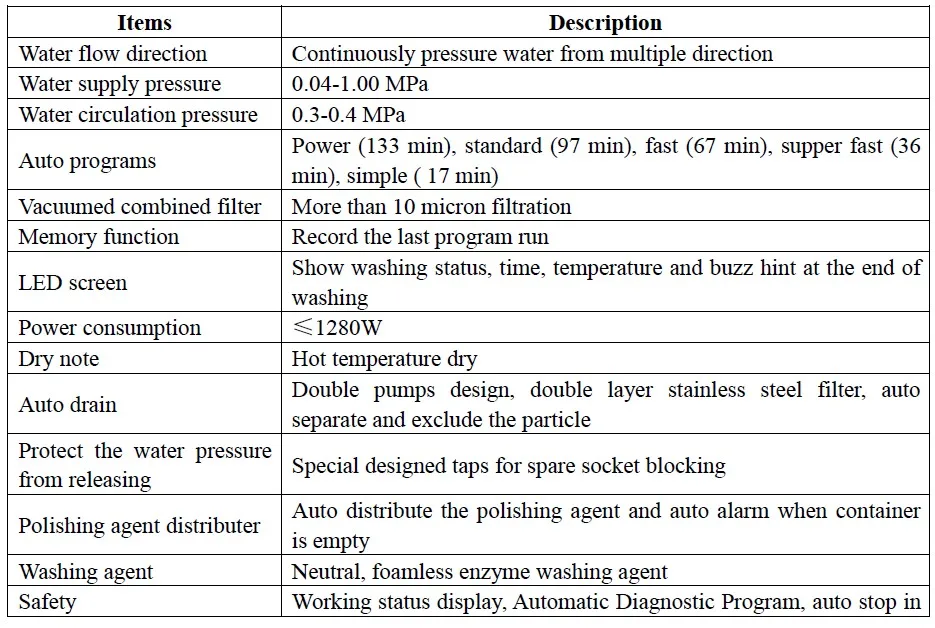

Basic Parameters:
Stainless steel cabin: High temperature resistance, corrosion resistance, easy to clean.
Standard basket provided with 16 hand pieces.
Volume of the cabin: ≥ 65 L
Dimension(W× H× D): 550× 438× 500(mm);
Noise: ≤ 50dB
Max power consumption: ≤ 1280W
Weight: ≤ 22kg
Standard water input filter: Poriness: 96%; Filter speed: 20-85 m3/h, optimization input water quality and ensure the washing effect…
Water supply pressure: 0.04-1.0Mpa, users may choose hot water or cold water supply source.
Main Features:
Preset 5 automatic washing procedures in firmware: Robust, standard, fast, supper fast, easy, may cost 15~135min.

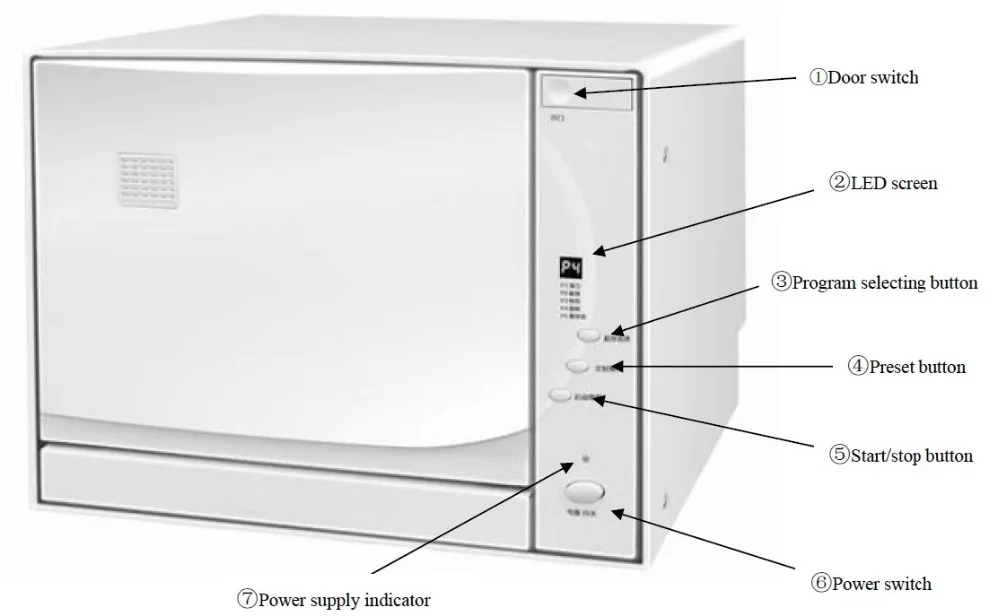

Show the information of washing procedure, time, temperature, cleaning reagent, etc.
Buzzer beep when at the end of washing procedure.
Vacuum composite filter: Minimum filter aperture≥ 10μ M, ensure the cleaning effect.
Supply special jams to keep internal flow pressure stable and ensure the cleaning effect.
Washing flow control: 3 dimension continuously water spray on the inner and outer surface of the wares been washed. Washing water pressure: 0.3-0.4 Mpa.
Auto drain system: Double pump, double stainless steel filter, auto draining.
May store more than 500 washing real-time record. Users may monitor the working history of the machine, fit GMP requirement, keep the memory after power off.
Optional printer may print the washing record.
Automatic trouble diagnosis and emergency shut down.
Inner voltage monitor, auto stop the washing processing and record the break point when abnormal power off.
Stainless steel cabin: High temperature resistance, corrosion resistance, easy to clean.
Standard basket provided with 16 hand pieces.
Volume of the cabin: ≥ 65 L
Dimension(W× H× D): 550× 438× 500(mm);
Noise: ≤ 50dB
Max power consumption: ≤ 1280W
Weight: ≤ 22kg
Standard water input filter: Poriness: 96%; Filter speed: 20-85 m3/h, optimization input water quality and ensure the washing effect…
Water supply pressure: 0.04-1.0Mpa, users may choose hot water or cold water supply source.
Main Features:
Preset 5 automatic washing procedures in firmware: Robust, standard, fast, supper fast, easy, may cost 15~135min.
Show the information of washing procedure, time, temperature, cleaning reagent, etc.
Buzzer beep when at the end of washing procedure.
Vacuum composite filter: Minimum filter aperture≥ 10μ M, ensure the cleaning effect.
Supply special jams to keep internal flow pressure stable and ensure the cleaning effect.
Washing flow control: 3 dimension continuously water spray on the inner and outer surface of the wares been washed. Washing water pressure: 0.3-0.4 Mpa.
Auto drain system: Double pump, double stainless steel filter, auto draining.
May store more than 500 washing real-time record. Users may monitor the working history of the machine, fit GMP requirement, keep the memory after power off.
Optional printer may print the washing record.
Automatic trouble diagnosis and emergency shut down.
Inner voltage monitor, auto stop the washing processing and record the break point when abnormal power off.
Q2-10 is used for clearing 10pcs of Handpiece
Q2-16 is used for clearing 16pcs of Handpiece
Q2-30 is used for clearing 16pcs of Handpiece
