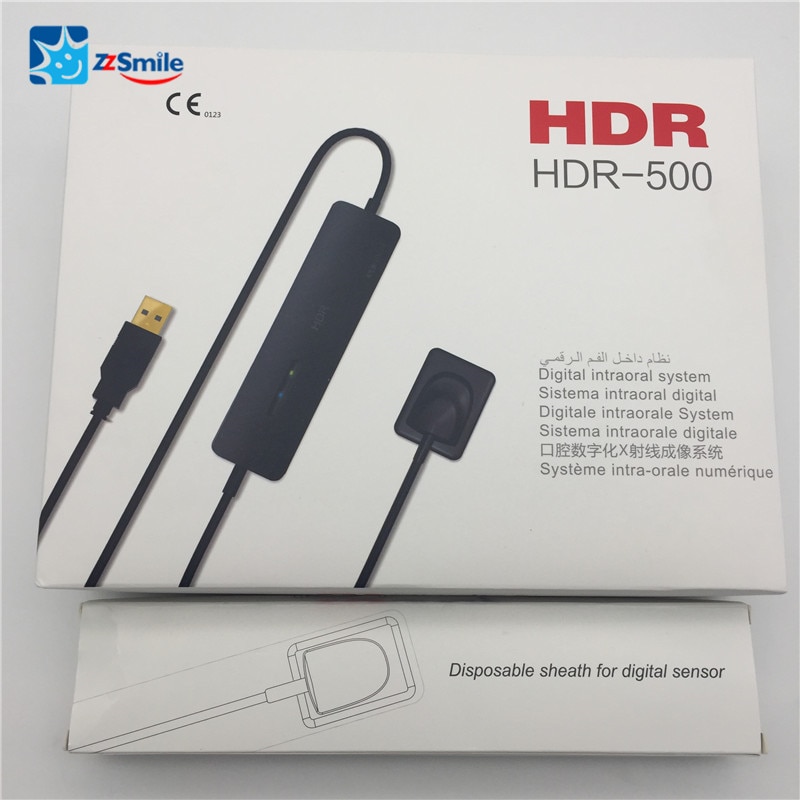

HANDY HDR500 Dental X Ray Sensor Dental RVG Sensor HDR-500
| Properties: |
Medical X-ray Equipments and amp; Accessories
|
Brand Name: |
HR
|
Model Number: |
HDR
|
| Place of Origin: |
Shanghai, China (Mainland)
|
Name: |
Dental digital x-ray sensor
|
Overall size: |
92*66*28cm
|
| PC interface: |
USB 2.0
|
Supply voltage: |
5.0V(4.25V min)
|
Supply current: |
500mA max
|
| Digitization: |
12 bits per pixel
|
Power: |
24V 8000mA 220V/110V 50Hz
|
Packaging: |
carton
|
| Guarantee time: |
6 months
|
Specifications
Medical x ray sensor dental digital
1.New APS CMOS sensor with long life time
2.High efficiency
3.Multi-user solution
x ray sensor dental digital
Feature of x ray sensor dental digital:
1. New APS CMOS sensor with long life time (400,000 times).
2. 22lp/mm: high identify ability of details and low x-ray dose, no matter to dentist or patient.
3. High efficiency = immediate effect: only within few seconds, the x-ray image will show on the monitor.
4. A good scintillator, enhances the x-ray conversion efficiency and improves light transmission ability.
5. Multi-user solution: the management system is for providing multiuser solution.
6. Powerful imaging software: it has image processing algorithms to improve the image quality, and also is a very powerful patient’s management software.
7.x ray sensor dental digital
Control box specification:
1. Overall size: 92*66*28mm
2. PC interface: USB 2.0 (full speed)
3. Supply voltage: 5.0V (4.25V min.)
4. Supply current: 500mA max
5. Digitization: 12 bits perpixel
6. Driver: free driver (windows)
7. Packing size: 290X390X50mm
8. Weight: 2.5kg
9. Power: 24V8000MA 220V/110V 50Hz
10. Environmental temperature: 5-40 ªC
