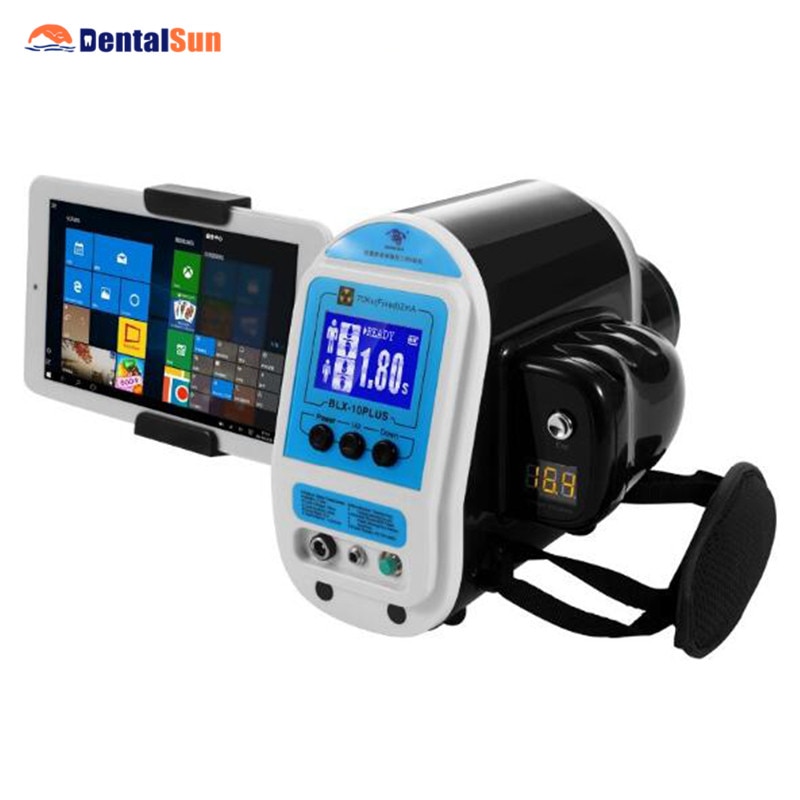

Portable Dental X Ray Machine BLX-10 Plus Dental X-ray System
Description
1)Power:AC220V±10% 50Hz
2)Tube current:0.2MA
3) Nominal power60kv,0.2MA,0.5s,12W
4) Frequency30KHz
5) Exposure time:0.5-9.9s Intermittent loading continuous operation
6) Radiation leaks and lt;20μgy/h
7) Input power:160VA
8) Focal distance:≥20cm
9) Tube voltage:60KV
10)Relative humidity: and lt;80%
11)Temperature:5-40℃
12)G.W.:5kg
13)Main unit weight:2kg
14)Total filtering:2.0mmAL(Inherent filtering1.5mmAL,Additional filtering0.5mmAL)

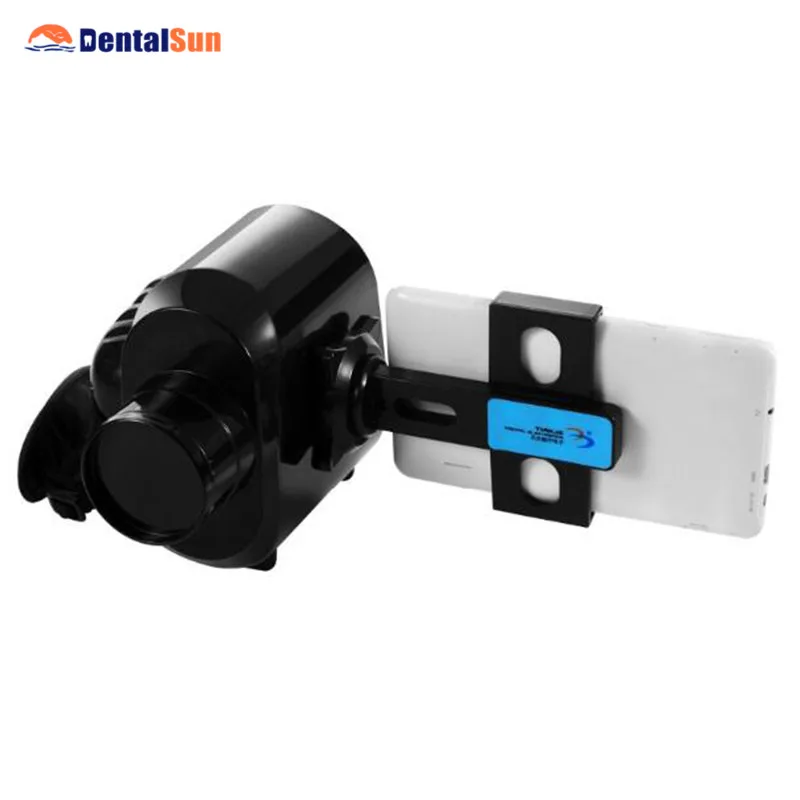

PS:The set don’t include the iPad,and the iPad need windows system

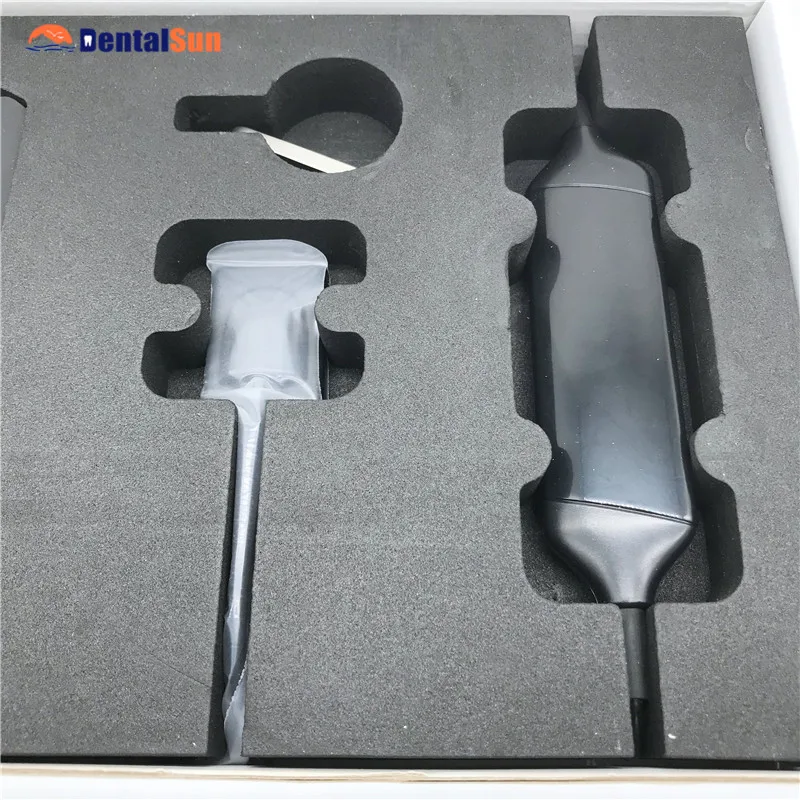

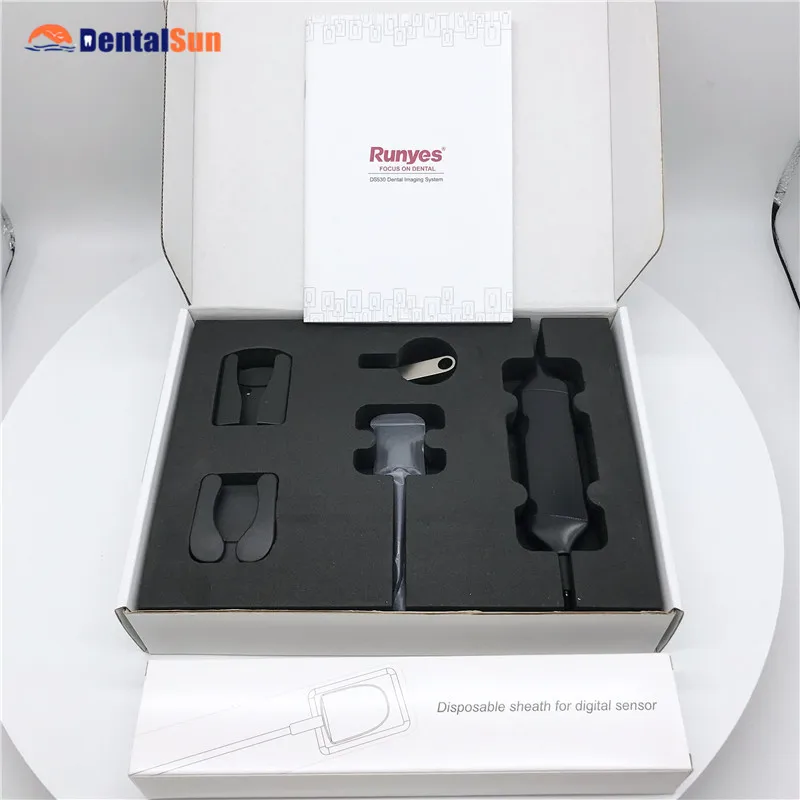

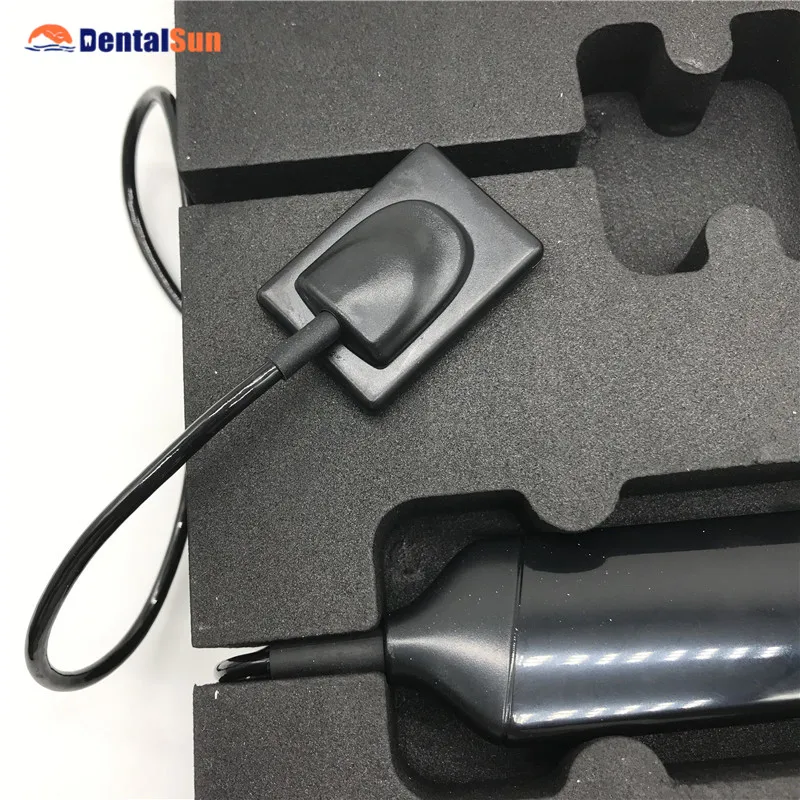

Parameter: Specification
Model: Size 1
Chip type: CMOS APS
Optical soldering panel: Yes
Scintillator: GOS
Size: 27.5X38.5mm
Effective area:22.5X30mm,675mm²
Pixel size: 18.5um
Picture pixels: 1.9M (1600*1200)
Pair resolution:
Theoretical value: 27lp/mm
Actual value: 12-14lp (GOS)
Other/Additional: TWAIN Driver
Operating system: Windows XP/Win7/Win8/Win8.1/Win10 (32bit and amp;64bit) has been certified by Microsoft
