Dental X-ray sensor rvg/Digital Dental X-ray film Sensor

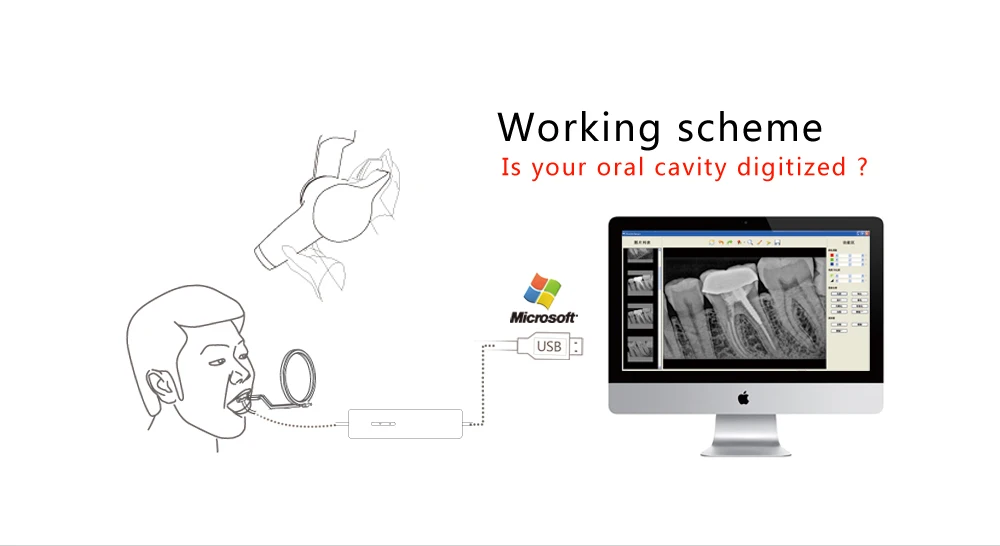

Dental digital x-ray imaging system is consisted of sensor, image controller, image

capture system and connection cable (USB port) , connected with PC or notebook via

USB cable. The power of controller and sensor is supplied by USB port, require no

battery or power charge system. The whole equipment need to work together with

imaging software



ATECO AT301, an Intra-oral Imaging System, is intended to collect dental x-ray photons and convert them into electronic impulses that may be stored, viewed, and manipulated for diagnostic use by dentists.





Technical Specifications

Sensor: APS CMOS sensor

External dimension (mm) : 40×26(AT-301)

Sensor Active Area :   30×22.5(AT-301)

Sensor Thickness : 6mm

Dynamic Range : 0~4,096

Power : 5V±0.5V

Image Transfer :USB2.0

Cable Length :.≥ 3m





Computer System Requirements

Processor: Intel 1.2GHz chip or above;

Memory: Above 1G ;

Hard disk: Above 40G;

Interface: USB 2.0;

Display: Resolution 1024 × 758 (15″) or above

Operating System: Windows XP
