SALE 23% OFF
Xhorse V5.0.5 VVDI MB BGA Tool For Benz Key Programmer
Promotion:
Buy VVDI MB Tool Get 1 Year Unlimited Token Service + Mini Key Tool + Xhorse Keyless Go PCB + ELV Simulator
Xhorse VVDI MB BGA TOOL Highlights:
9. Language: English, Spanish and Polish.
10. VVDI MB BGA Tool Support the popular models like W166, W197, W212, W218, W246, W206, W210,w204, w207,W166,W203, W463, W639, W246, W212, W212(old),some W216, W164 2009- ,W164,W221,W215, W220, W230 and some others.
1. Read Write Key
1. Read key basic information
2. Key with BE version, we can read password from key via IR directly. Of course,renew key, write new key file via IR is also supported
3. Support IR repair key, repair key not work via IR
4. NEC adaptor can read key password from NEC v51, v57 version
5. Support write and renew (NEC adaptor) NEC key versions following: v51, v57,v28, v35, v40,v03, v06, v08 (Keyless Go),v05, v07, v09 (Keyless Go),v59, v61 (Keyless Go)
1. Support read EIS data via OBD and IR adaptor
2. Under OBD mode, we provide auto detect EIS type for CAN protocol
3. Support read W164, W209, W211 EIS via OBD without gateway support
4. Support read old Motorola EIS (HC05, HC08, K-Line) password via IR directly
5. Support renew EIS, make 2 nd hand EIS to new one (online)
6. Support replace EIS, you can write original EIS data to new EIS via IR
7. Support write new VIN
8. Support clear TP
9. Support disable key position
10. Support personalize W204 ESL
11. Support test EIS, ELV, working key status
12. Support type:
W164,W164 2009-,W166, 197, 212, 218, 246,W169, 209, 211,W172, 204, 207, 212 (old, with ELV) W203, 463, 639 (K),W202, 208, 210 (K),W215, 220 (K),W230 (K),W216,W221,W639 2009-
1. Password calculation can get the key password from working key and EIS(online)
2. CAN protocol EIS all support password calculation (support BGA keys and other NEC keys)
3. We also support calculate password for NEC v51, v57 keys. No soldering.
4. Data acquisition time depends on the key version. It needs about 3.5 minutes -13minutes, BGA version need about 5 minutes
5. Calculate time in server: 30 seconds – 1 minute
6. Now VVDI-MB TOOL is the fastest tool for password calculation
7. Lost all key password calculation: Now we support calculate password for W166, W212, W246, W212(old, with ELV) while lost all key
8. Support type (have working key): W164,W164 2009-,W166, 197, 212, 218, 246,W169, 209, 211,W172, 204, 207, 212(old, with ELV),W216,W221,W639 2009-
1. Prepare key file means prepare the key file which you will write to new key(online)
2. Prepare key file need about 20 seconds
3. Support VVDI-MB type EIS data and old Motorola EEPROM dump
1. Support read ESL data via OBD (K-Line)
2. Support renew ESL, make 2 nd hand ESL to new one (online)
3. Support replace ESL, you can write original ESL or EIS data to new ESL
4. Support write new VIN
5. Support clear TP
6. Support auto personalized ESL, no need renew EIS
7. Support check ESL damage status
8. Support repair W204 ESL NEC chip(fatal error: 0xAA) and Motorola ESL chip
9. Support renew VVDI-MB W204 emulator
1. This function support renew, write VIN, personalization operation for module ECU,Gearbox, ISM etc
More detail infomotion click Xhorse VVDI MB Tool User Manual
VVDI MB TOOL Latest Update Information:
VVDI MB TOOL Latest Software Version V5.0.5 update 2020-05-26
VVDI MB Tool V5.0.5 Free Download
Require firmware V5.0.1
For BENZ V5.0.5
1. Support VVDI smart key(FBS3) get bonus points
2. Support synchronize device time manually from menu
3. Bugfix
VVDI MB TOOL V5.0.2 Update Information 2019-09-19
Require firmware V5.0.1
===== For BENZ V5.0.2 =====
1. This update require update firmware V5.0.1
2. Bugfix for read BE key via IR
3. Bugfix for read ISM
4. Bugfix
VVDI MB TOOL latest software version V4.9.0 update 2019-06-20
Require firmware V4.5.0
===== For BENZ V4.9.0 =====
1. This update no need update the firmware
2. Add new type for calculate password while all key lost:
a. Support W230 get key password with VVDIMB Power Adapter (All KEY LOST, 20 minutes-1 hour)
b. Support W169 type2 get key password with VVDIMB Power Adapter (All KEY LOST, 15 minutes)
c. Support W169 type2 get key password with slow method
d. Support W164/W251 -2009 (NEC chip)get key password with VVDIMB Power Adapter (All KEY LOST, 30 minutes)
3. Support write Mark value to NEC key from IR
4. Support write VIN to HC08/HC12 EIS(Kline)
5. Bugfix
*** Require firmware V4.5.0
************************************************** **********************
===== For BENZ V4.8.0 =====
1. This update no need update the firmware
2. Support W215, W220, W230 calculate password while all key lost:
a. No more need MCU’s de/soldering, very safe and quickly
b. Support W215, W220 get key password with slow method (All KEY LOST, 2-3hours)
c. Support W230 get key password with slow method (All KEY LOST, 2-3hours)
VVDIMB support all the FBS3 EIS while all key lost:
W166, W197, W212, W218, W246
W172, W204, W207
W216
W164, W251 (-2009)
W164, W251 (2009-)
W169, W209, W211
W202, W208, W210
W215, W220
W230
W203, W463, W639
W639(2009-)
W906
W221
3. Bugfix
Support Key Types Display:
VVDI MB BGA tool update goes well, the following workable models are for reference only.
1.Connect the VVDI MB Tool to your computer with the USB cable
2.Choose the VVDI MB Tool firmware version from Firmware List
3.Click on Update Online and wait for the update ot end
4.If while updating the VVDI MB Tool you receive an error messaage; close, dissable, or pause your antivirus and firewall programs and try again.
5.DON’T shutdown your computer or disconnect the USB cable during the update.
Step 1:Connect VVDI MB BGA Tool to vehicle,and run VVDI for Benz BGA software to read and save EIS data.
Step 2:Select Password Calculation,choose chassis to click “Data Acquisition”,then save data fiel
Step 3:Upload the data file you save just now in step 2,then calcute the password
Step 4:Back EIS Tool menu,and read EIS data,then paste password then save new EIS data fiel with password.
Step 5:Go to “Prepare Key File”, click “Load EIS file” to load new EIS file with key password.
Then click “Prepare key file”,then it will prepare all keys and complete
Step 6:Go to “Read Write Key”,put new blank BGA key into coil to identify,then write the data fiel into key.
Step 7:Now the last thing is to synchronize the new key to car
Here is a real VVDI MB BGA progmiming case: VVDI MB BGA Tool Program Mercedes BGA Key for ML250 W166
i have an for mercedes W245 B-Class from 2007 it work for All key lost
W221 – all keys lost – Ok
W164 – no connection by OBD, IR is ok. Can not do data collect, EZS IR reading only
W212 – all keys lost by OBD – Ok
W220 – no K-Line connection for data collect. IR reading – Ok.
I try to collect list of OK and K.O. experiences with IR pass reading with VVDI BGA TOOL
W210: EIS/EZS A208.545.01.08 – MCU ??? -read PSW IR – not successful
W210: EIS/EZS A210.545.02.08 – MCU 1D69J – read PSW IR – not successful
W210: EIS/EZS A210.545.03.08 – MCU 1D69J – read PSW IR – not successful W210: EIS/EZS A210.545.00.08 – MCU 0D69J – read PSW IR – not successful W215: EIS/EZS A215.545.00.08 – MCU 0D69J – read PSW IR – not successful W215: EIS/EZS A215.545.08.08 – MCU 1L85D – read PSW IR – not successful
W203: EIS/EZS A203.545.05.08 – MCU ??? – read PSW IR – OK
W203: EIS/EZS A203.545.05.08 – MCU 1J35D – read PSW – OK
W203: EIS/EZS A209.545.09.08 – MCU 1L85D – read PSW IR – not successful
W220: EIS/EZS A215.545.02.08 – MCU ??? – read PSW IR – OK
W220:EIS/EZS A215.545.00.08 – MCU 1D69J read PSW IR – not successful
W639: EIS/EZS A639.545.05.08 – MCU 2x 1L02Y – read PSW IR – not successful
W639: EIS/EZS A639.545.09.08 – MCU 0L01Y – read PSW IR/OBD – not successful
I Can guarantee it will not read ANY WITH HC05
1D69J/0D69J cannot be read by IR alone – A calculation with kline is possible.
read a w203 A203.545.05.08 with mask 1J35d password ok
W203 IES 203 545 05 08 read PSW IR OK
W 220 IES 215 545 02 08 read PSW IR – OK
please refer to change W204 esl steps:
ESL:Clear TP, Renew ESL(need erase password)
EIS:Renew EIS(need password and amp; erase password)
Write EIS data back,then Personalize W204ESL
1. I test password from 212 new model super
good tool need pay 2 tokens
need 10 min all ok
2. Do you have see video of this tool?
They say can do all key lost on w212.
No tool can do it even Mehaco or nec pro51.
w212 eis on video, sure it can.. mehaco/mercedesinstrument can do all keys lost on w212.. the option is availible a few months.
Connection Display:
VVDI MB BGA Tool FAQ:
1.Q:i tes read data with obd2 210 k line working and 204 car read with obd 2 ,but 211 not read with obd2 cable connect
16 12v
4+5 GND
14 CAN_L
6 CAN_H
pin 1 : ESL 1
pin 2 : GND
pin 3 : +12V (30)
pin 5 : CAN L (White)
pin 6 : CAN H (Green)
pin 7 : CAN L
pin 8 : CAN H
CAN ANY ONE TEST
A:read eis via obd for W164, W169, W211, W209, require gateway connected
2.Q: I bought EIS W221 lock with a key from the lock from one machine. I have read the PSW. I will make a complete loss of W221 key in the future?
Describe step by step procedure
A: you have uesd/2nd-hand EIS with working key,you can do like this for W221 all key lost
1.read all key lost EIS data- and gt; save EIS data
2.read used EIS data enter password,get erase password- and gt;renew used EIS.
3.load step1 EIS data to renewed EIS with password- and gt;write EIS data
4.load EIS data(with key password)- and gt;prepare key file
5.input new key to device IR reader- and gt;load key file- and gt;write
6.insert new key to EIS- and gt;EIS will learn the new key- and gt;key learn success
by the way,if your all key lost W221 is motorola EIS,not need to change EIS,remove eis get eeprom by programmer(VVDI PROG).
then load eeprom to VVDI MB TOOL prepare key file.
3.Q: I have a w204 All key lost and i program a new EIS with VVDI, the ignition doesn’t come on or crank, but the steering can lock and unlock. can someone guide me what to do?
A: about W204 all key lost(change new EIS),refer to following steps,maybe helpful:
1.Read EIS data via obd,then Save EIS data
2.adapt ESL:Read ESL data- and gt;Get Erase Password- and gt;Renew ESL
3.Change new EIS, Load EIS data(step1)- and gt;write Key Password(enter manually and at random)- and gt;Write EIS data
4.Personalize W204 ESL
5.Load EIS data(with Key Password)- and gt;Prepare Key File
6.Input new Key to device IR reader- and gt;Load Key file- and gt;write
7.Insert new Key to EIS- and gt;EIS will learn the new key- and gt;key learn success
4.Q:Is there a way to delete used key with VVDI MB bga?
A:Yes, VVDI MB TOOL support that!
Get more about VVDI MB BGA Tool FAQ and Answers

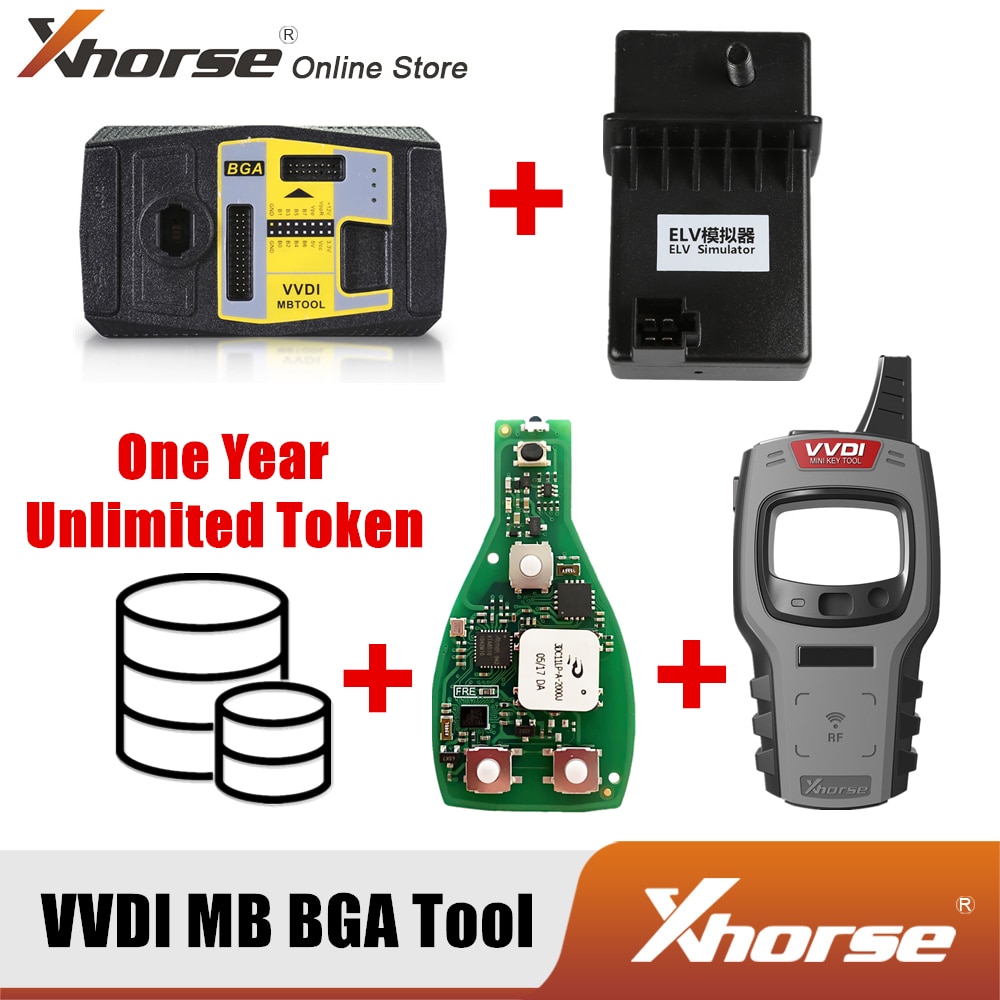

VVDI MB BGA Tool Package List:
1set x Xhorse VVDI MB BGA TOOL
1 x One Year Unlimited Tokens
1set x VVDI Mini Key Tool
1x ELV Emulator
1 x MB FBS3 BGA KeylessGo Key For Free
Xhorse V5.0.5 VVDI MB BGA Tool For Benz Key Programmer
Promotion:
Buy VVDI MB Tool Get 1 Year Unlimited Token Service + Mini Key Tool + Xhorse Keyless Go PCB + ELV Simulator
Xhorse VVDI MB BGA TOOL Highlights:
9. Language: English, Spanish and Polish.
10. VVDI MB BGA Tool Support the popular models like W166, W197, W212, W218, W246, W206, W210,w204, w207,W166,W203, W463, W639, W246, W212, W212(old),some W216, W164 2009- ,W164,W221,W215, W220, W230 and some others.
1. Read Write Key
1. Read key basic information
2. Key with BE version, we can read password from key via IR directly. Of course,renew key, write new key file via IR is also supported
3. Support IR repair key, repair key not work via IR
4. NEC adaptor can read key password from NEC v51, v57 version
5. Support write and renew (NEC adaptor) NEC key versions following: v51, v57,v28, v35, v40,v03, v06, v08 (Keyless Go),v05, v07, v09 (Keyless Go),v59, v61 (Keyless Go)
1. Support read EIS data via OBD and IR adaptor
2. Under OBD mode, we provide auto detect EIS type for CAN protocol
3. Support read W164, W209, W211 EIS via OBD without gateway support
4. Support read old Motorola EIS (HC05, HC08, K-Line) password via IR directly
5. Support renew EIS, make 2 nd hand EIS to new one (online)
6. Support replace EIS, you can write original EIS data to new EIS via IR
7. Support write new VIN
8. Support clear TP
9. Support disable key position
10. Support personalize W204 ESL
11. Support test EIS, ELV, working key status
12. Support type:
W164,W164 2009-,W166, 197, 212, 218, 246,W169, 209, 211,W172, 204, 207, 212 (old, with ELV) W203, 463, 639 (K),W202, 208, 210 (K),W215, 220 (K),W230 (K),W216,W221,W639 2009-
1. Password calculation can get the key password from working key and EIS(online)
2. CAN protocol EIS all support password calculation (support BGA keys and other NEC keys)
3. We also support calculate password for NEC v51, v57 keys. No soldering.
4. Data acquisition time depends on the key version. It needs about 3.5 minutes -13minutes, BGA version need about 5 minutes
5. Calculate time in server: 30 seconds – 1 minute
6. Now VVDI-MB TOOL is the fastest tool for password calculation
7. Lost all key password calculation: Now we support calculate password for W166, W212, W246, W212(old, with ELV) while lost all key
8. Support type (have working key): W164,W164 2009-,W166, 197, 212, 218, 246,W169, 209, 211,W172, 204, 207, 212(old, with ELV),W216,W221,W639 2009-
1. Prepare key file means prepare the key file which you will write to new key(online)
2. Prepare key file need about 20 seconds
3. Support VVDI-MB type EIS data and old Motorola EEPROM dump
1. Support read ESL data via OBD (K-Line)
2. Support renew ESL, make 2 nd hand ESL to new one (online)
3. Support replace ESL, you can write original ESL or EIS data to new ESL
4. Support write new VIN
5. Support clear TP
6. Support auto personalized ESL, no need renew EIS
7. Support check ESL damage status
8. Support repair W204 ESL NEC chip(fatal error: 0xAA) and Motorola ESL chip
9. Support renew VVDI-MB W204 emulator
1. This function support renew, write VIN, personalization operation for module ECU,Gearbox, ISM etc
More detail infomotion click Xhorse VVDI MB Tool User Manual
VVDI MB TOOL Latest Update Information:
VVDI MB TOOL Latest Software Version V5.0.5 update 2020-05-26
VVDI MB Tool V5.0.5 Free Download
Require firmware V5.0.1
For BENZ V5.0.5
1. Support VVDI smart key(FBS3) get bonus points
2. Support synchronize device time manually from menu
3. Bugfix
VVDI MB TOOL V5.0.2 Update Information 2019-09-19
Require firmware V5.0.1
===== For BENZ V5.0.2 =====
1. This update require update firmware V5.0.1
2. Bugfix for read BE key via IR
3. Bugfix for read ISM
4. Bugfix
VVDI MB TOOL latest software version V4.9.0 update 2019-06-20
Require firmware V4.5.0
===== For BENZ V4.9.0 =====
1. This update no need update the firmware
2. Add new type for calculate password while all key lost:
a. Support W230 get key password with VVDIMB Power Adapter (All KEY LOST, 20 minutes-1 hour)
b. Support W169 type2 get key password with VVDIMB Power Adapter (All KEY LOST, 15 minutes)
c. Support W169 type2 get key password with slow method
d. Support W164/W251 -2009 (NEC chip)get key password with VVDIMB Power Adapter (All KEY LOST, 30 minutes)
3. Support write Mark value to NEC key from IR
4. Support write VIN to HC08/HC12 EIS(Kline)
5. Bugfix
*** Require firmware V4.5.0
************************************************** **********************
===== For BENZ V4.8.0 =====
1. This update no need update the firmware
2. Support W215, W220, W230 calculate password while all key lost:
a. No more need MCU’s de/soldering, very safe and quickly
b. Support W215, W220 get key password with slow method (All KEY LOST, 2-3hours)
c. Support W230 get key password with slow method (All KEY LOST, 2-3hours)
VVDIMB support all the FBS3 EIS while all key lost:
W166, W197, W212, W218, W246
W172, W204, W207
W216
W164, W251 (-2009)
W164, W251 (2009-)
W169, W209, W211
W202, W208, W210
W215, W220
W230
W203, W463, W639
W639(2009-)
W906
W221
3. Bugfix
Support Key Types Display:
VVDI MB BGA tool update goes well, the following workable models are for reference only.
1.Connect the VVDI MB Tool to your computer with the USB cable
2.Choose the VVDI MB Tool firmware version from Firmware List
3.Click on Update Online and wait for the update ot end
4.If while updating the VVDI MB Tool you receive an error messaage; close, dissable, or pause your antivirus and firewall programs and try again.
5.DON’T shutdown your computer or disconnect the USB cable during the update.
Step 1:Connect VVDI MB BGA Tool to vehicle,and run VVDI for Benz BGA software to read and save EIS data.
Step 2:Select Password Calculation,choose chassis to click “Data Acquisition”,then save data fiel
Step 3:Upload the data file you save just now in step 2,then calcute the password
Step 4:Back EIS Tool menu,and read EIS data,then paste password then save new EIS data fiel with password.
Step 5:Go to “Prepare Key File”, click “Load EIS file” to load new EIS file with key password.
Then click “Prepare key file”,then it will prepare all keys and complete
Step 6:Go to “Read Write Key”,put new blank BGA key into coil to identify,then write the data fiel into key.
Step 7:Now the last thing is to synchronize the new key to car
Here is a real VVDI MB BGA progmiming case: VVDI MB BGA Tool Program Mercedes BGA Key for ML250 W166
i have an for mercedes W245 B-Class from 2007 it work for All key lost
W221 – all keys lost – Ok
W164 – no connection by OBD, IR is ok. Can not do data collect, EZS IR reading only
W212 – all keys lost by OBD – Ok
W220 – no K-Line connection for data collect. IR reading – Ok.
I try to collect list of OK and K.O. experiences with IR pass reading with VVDI BGA TOOL
W210: EIS/EZS A208.545.01.08 – MCU ??? -read PSW IR – not successful
W210: EIS/EZS A210.545.02.08 – MCU 1D69J – read PSW IR – not successful
W210: EIS/EZS A210.545.03.08 – MCU 1D69J – read PSW IR – not successful W210: EIS/EZS A210.545.00.08 – MCU 0D69J – read PSW IR – not successful W215: EIS/EZS A215.545.00.08 – MCU 0D69J – read PSW IR – not successful W215: EIS/EZS A215.545.08.08 – MCU 1L85D – read PSW IR – not successful
W203: EIS/EZS A203.545.05.08 – MCU ??? – read PSW IR – OK
W203: EIS/EZS A203.545.05.08 – MCU 1J35D – read PSW – OK
W203: EIS/EZS A209.545.09.08 – MCU 1L85D – read PSW IR – not successful
W220: EIS/EZS A215.545.02.08 – MCU ??? – read PSW IR – OK
W220:EIS/EZS A215.545.00.08 – MCU 1D69J read PSW IR – not successful
W639: EIS/EZS A639.545.05.08 – MCU 2x 1L02Y – read PSW IR – not successful
W639: EIS/EZS A639.545.09.08 – MCU 0L01Y – read PSW IR/OBD – not successful
I Can guarantee it will not read ANY WITH HC05
1D69J/0D69J cannot be read by IR alone – A calculation with kline is possible.
read a w203 A203.545.05.08 with mask 1J35d password ok
W203 IES 203 545 05 08 read PSW IR OK
W 220 IES 215 545 02 08 read PSW IR – OK
please refer to change W204 esl steps:
ESL:Clear TP, Renew ESL(need erase password)
EIS:Renew EIS(need password and amp; erase password)
Write EIS data back,then Personalize W204ESL
1. I test password from 212 new model super
good tool need pay 2 tokens
need 10 min all ok
2. Do you have see video of this tool?
They say can do all key lost on w212.
No tool can do it even Mehaco or nec pro51.
w212 eis on video, sure it can.. mehaco/mercedesinstrument can do all keys lost on w212.. the option is availible a few months.
Connection Display:
VVDI MB BGA Tool FAQ:
1.Q:i tes read data with obd2 210 k line working and 204 car read with obd 2 ,but 211 not read with obd2 cable connect
16 12v
4+5 GND
14 CAN_L
6 CAN_H
pin 1 : ESL 1
pin 2 : GND
pin 3 : +12V (30)
pin 5 : CAN L (White)
pin 6 : CAN H (Green)
pin 7 : CAN L
pin 8 : CAN H
CAN ANY ONE TEST
A:read eis via obd for W164, W169, W211, W209, require gateway connected
2.Q: I bought EIS W221 lock with a key from the lock from one machine. I have read the PSW. I will make a complete loss of W221 key in the future?
Describe step by step procedure
A: you have uesd/2nd-hand EIS with working key,you can do like this for W221 all key lost
1.read all key lost EIS data- and gt; save EIS data
2.read used EIS data enter password,get erase password- and gt;renew used EIS.
3.load step1 EIS data to renewed EIS with password- and gt;write EIS data
4.load EIS data(with key password)- and gt;prepare key file
5.input new key to device IR reader- and gt;load key file- and gt;write
6.insert new key to EIS- and gt;EIS will learn the new key- and gt;key learn success
by the way,if your all key lost W221 is motorola EIS,not need to change EIS,remove eis get eeprom by programmer(VVDI PROG).
then load eeprom to VVDI MB TOOL prepare key file.
3.Q: I have a w204 All key lost and i program a new EIS with VVDI, the ignition doesn’t come on or crank, but the steering can lock and unlock. can someone guide me what to do?
A: about W204 all key lost(change new EIS),refer to following steps,maybe helpful:
1.Read EIS data via obd,then Save EIS data
2.adapt ESL:Read ESL data- and gt;Get Erase Password- and gt;Renew ESL
3.Change new EIS, Load EIS data(step1)- and gt;write Key Password(enter manually and at random)- and gt;Write EIS data
4.Personalize W204 ESL
5.Load EIS data(with Key Password)- and gt;Prepare Key File
6.Input new Key to device IR reader- and gt;Load Key file- and gt;write
7.Insert new Key to EIS- and gt;EIS will learn the new key- and gt;key learn success
4.Q:Is there a way to delete used key with VVDI MB bga?
A:Yes, VVDI MB TOOL support that!
Get more about VVDI MB BGA Tool FAQ and Answers
VVDI MB BGA Tool Package List:
1set x Xhorse VVDI MB BGA TOOL
1 x One Year Unlimited Tokens
1set x VVDI Mini Key Tool
1x ELV Emulator
1 x MB FBS3 BGA KeylessGo Key For Free
