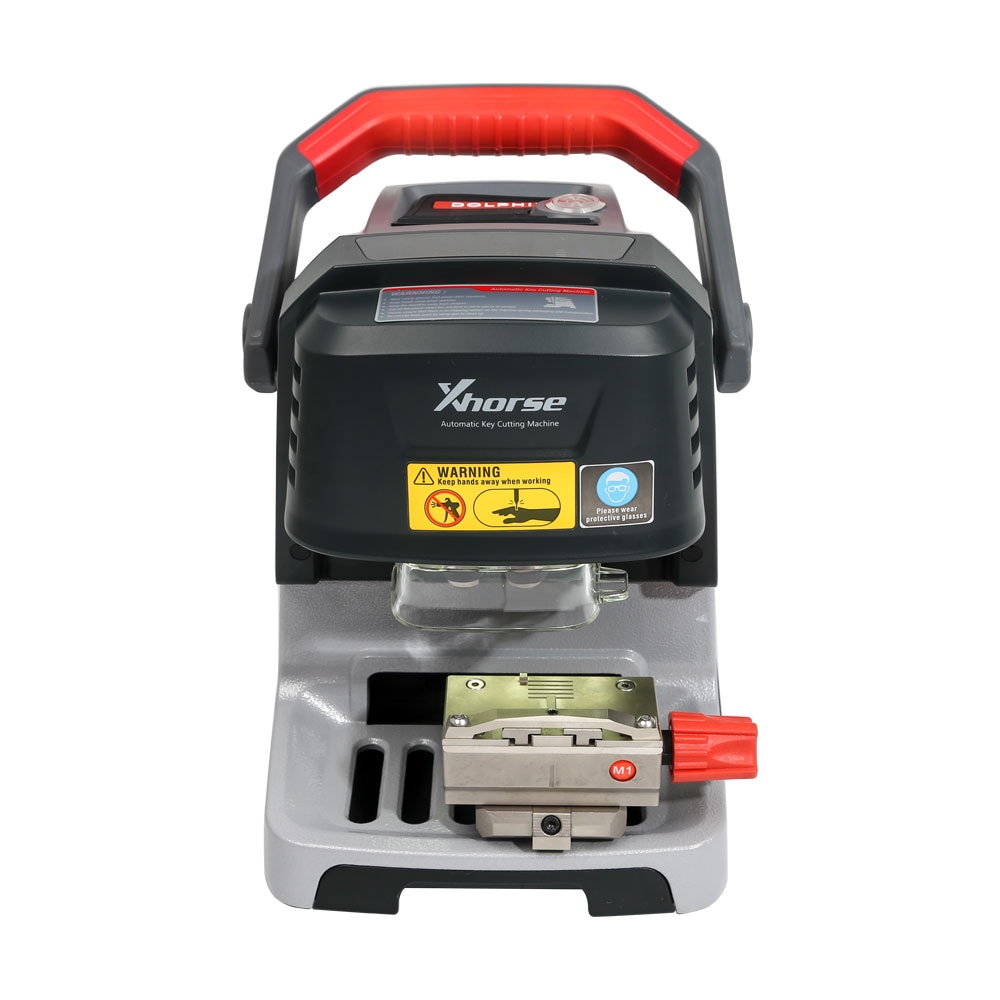

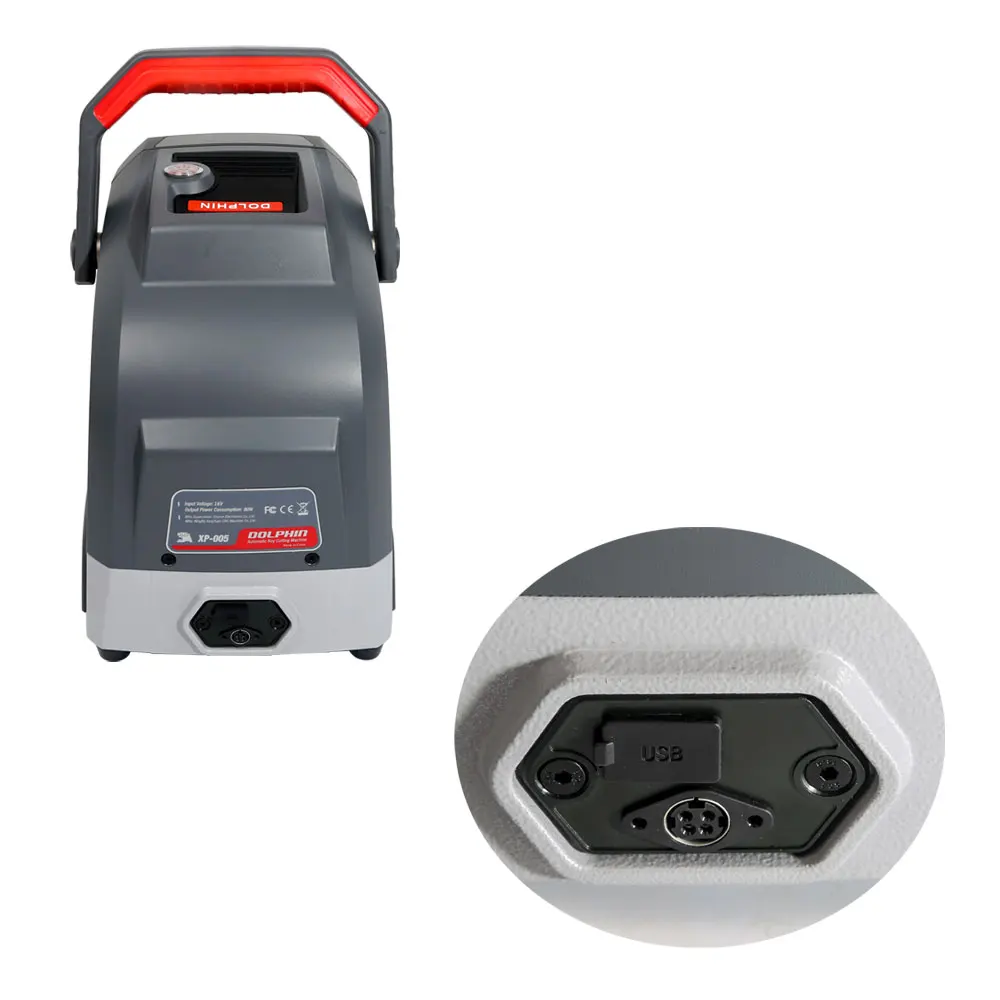

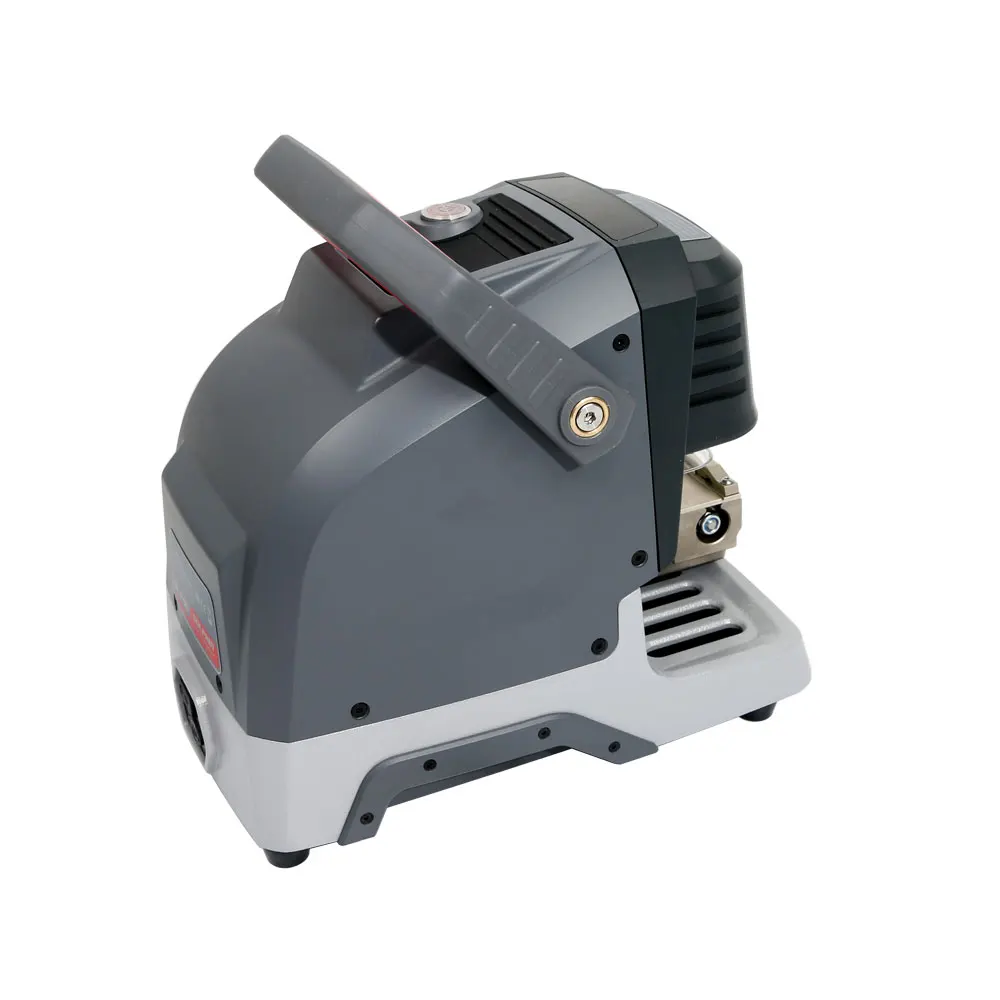

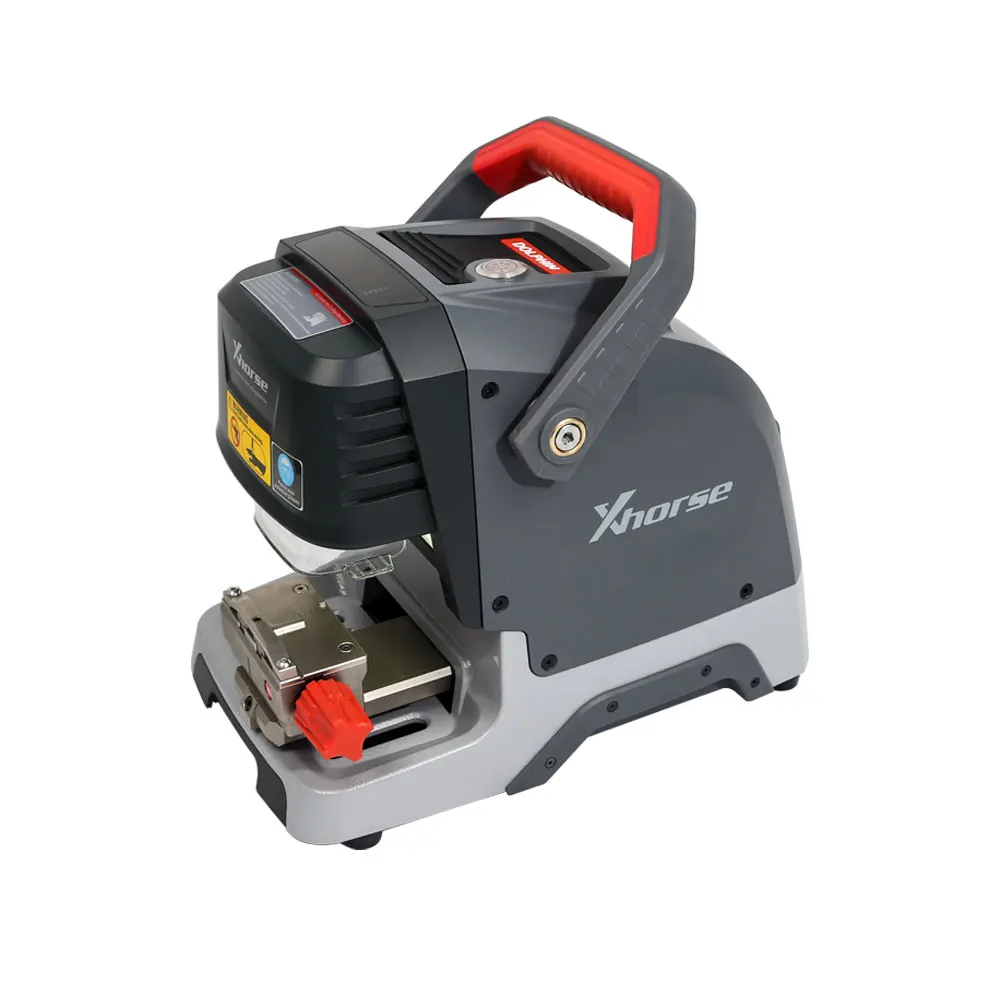

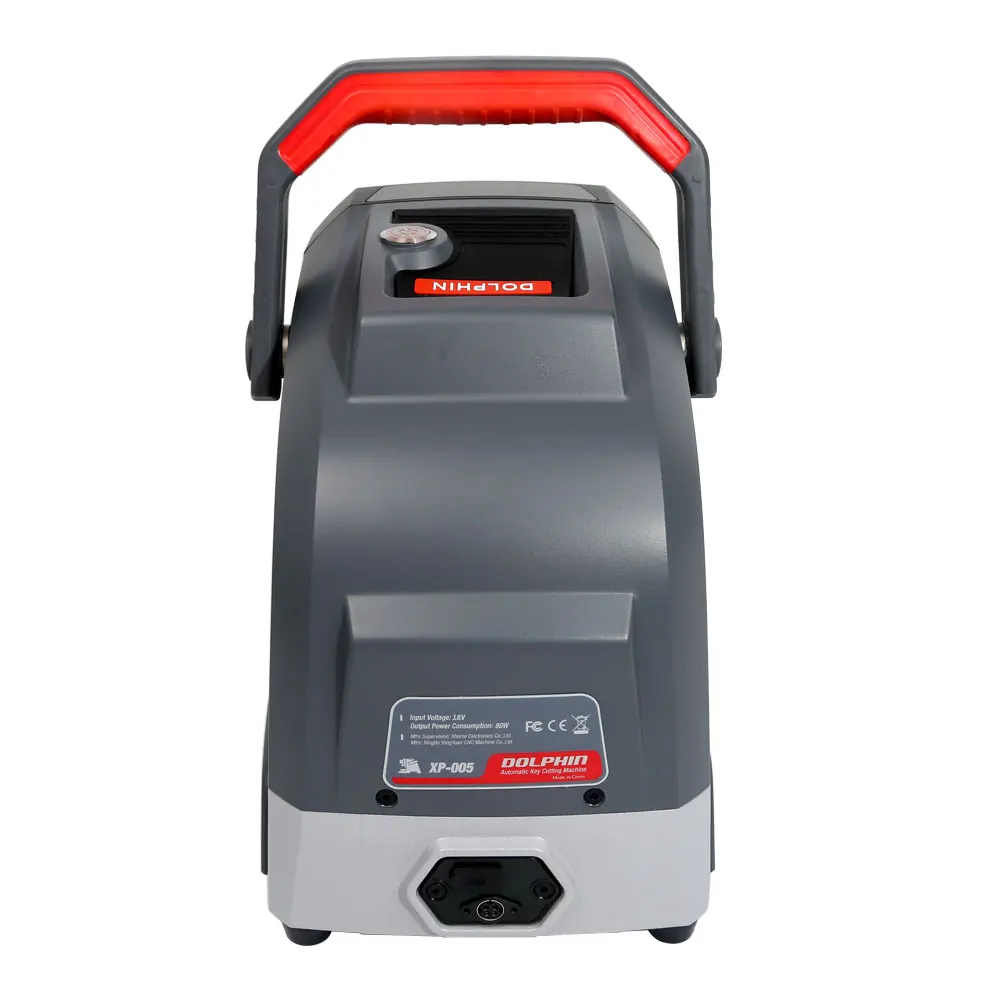

Condor Dolphin -XP005 Key Cutting Machine is new key cutting machine from Xhorse brand,and it is used on App via bluetooth,support both IOS and Android.
Top 6 Reasons to Get Condor Dolphin:

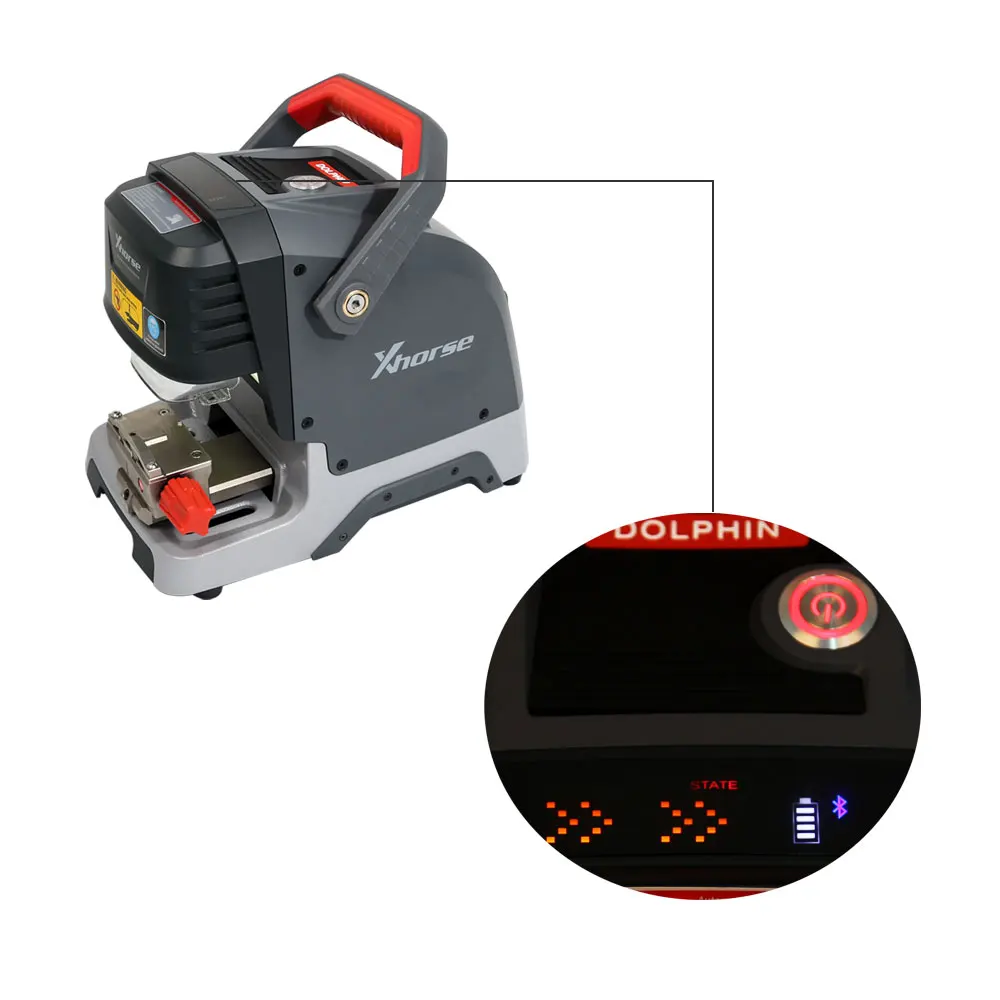

1. CONDOR DOLPHIN is the latest portable automatic key cutting machine with a built-in battery inside.
2. It has all the capabilities of Condor XC Mini.
3. Dolphin works on mobile phone application via bluetooth connection.
4. M1/M2 Jaws included. – optional purchase. You can check here to buy:
5.Update Online,Newest verion:V1.2.3
6. Built-in Lithium Battery. Optimized lithium battery of well-known brand, stable and reliable, support cutting under no power conditions. When Dolphin has been charged for 3 hours, you can cut at least 20 keys continuously.
Xhorse Condor Dolphin Update Information:
(2019-09-09) V1.2.3
* This version need to update firmware
* Fix some bugs
* Fix VA2T cutting strategy
This version need to update firmware V1.2.1 (2019-08-16)
* Fix some bugs
* Improve VA2T cutting strategy
* Improve universal key copy cutting strategy
(2019-06-24) V1.1.9
* This version need to update firmware
* Fix HU66EXT cutting problem
(2019-06-13) V1.1.8
* This version need to update firmware
* Fix Channel track type header cutting error problem
* Fix some 4 Track internal type can not cutting problem
Smart control and operation on APP and build-in database
Portability and build-in Lithium battery with a long battery life

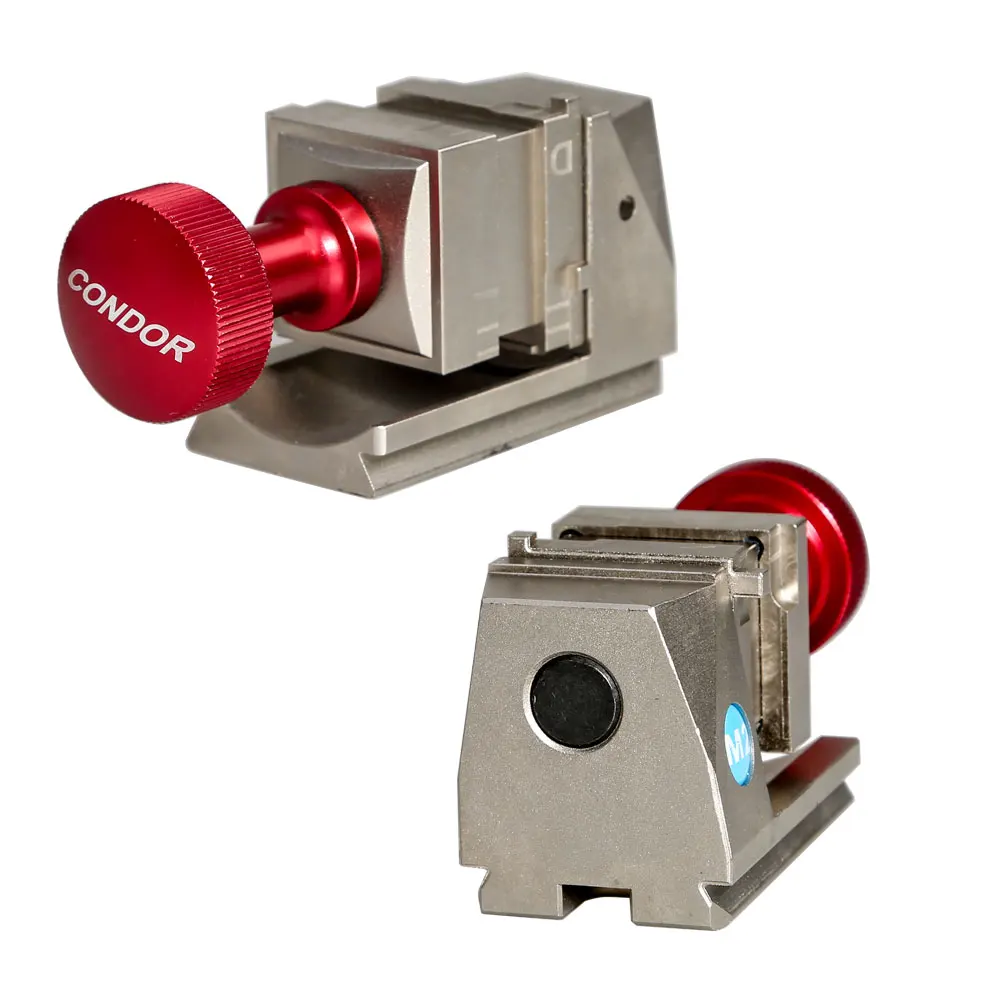

Support clamps M1,M2,M3(optional),M4(optional)
Support sided/track/dimple keys/tibbe keys/some household keys
Cutter and probe work in parallel
Aluminum structure
Imported ball screw with high precision
Cross rail with high rigidity
Supporting online update
Operating in multipe languages
Note:Lithium battery is an optional accessory
Condor XC-Dolphin key machine is an entry-level product of the CONDOR CNC machine family. The body design is simple, it is very suitable for mobile use in the mobile scene, without operating screen, you need to connect a mobile phone or tablet, and install a dedicated APN.
| index | XC-DOLPHIN | Condor XC-MINI |
| Spindle | Mechanical shaft +60W DC motor (with a foreign model)” “Electric spindle brushless 300W, built-in angular contact bearing | Electric spindle brushless 300, built-in angular contact bearing |
| Transmission mechanism | “T-shaped screw + anti-backlash nut | Ball screw |
| guide | Roller guide | Cross-track |
| shell | Base aluminum alloy die-casting, the upper body is made of plastic shell and the body is made of integrated aluminum alloy die-casting. | Plastic outer casing body is formed by body alloying die casting |
| Fixture | Standard fixture | Two sets of standard fixtures |
| Manipulation | No touch screen, no built-in database | Quick start, with touch screen, built-in database |
| Offline operation | not support | stand by |
| Dedicated app | Support dedicated mobile phone APp | Support dedicated mobile APP |
| Built-in battery | Not supported, optional external battery | stand by |
| protecting mask | Simple protective cover | Comprehensive protection |
| VVD binding | not support | stand by |
| Cutting speed | 1X SPEED | 2X SPEED |
| weight | 17kg | 18kg |
| Warranty | 1 year | 3 years |

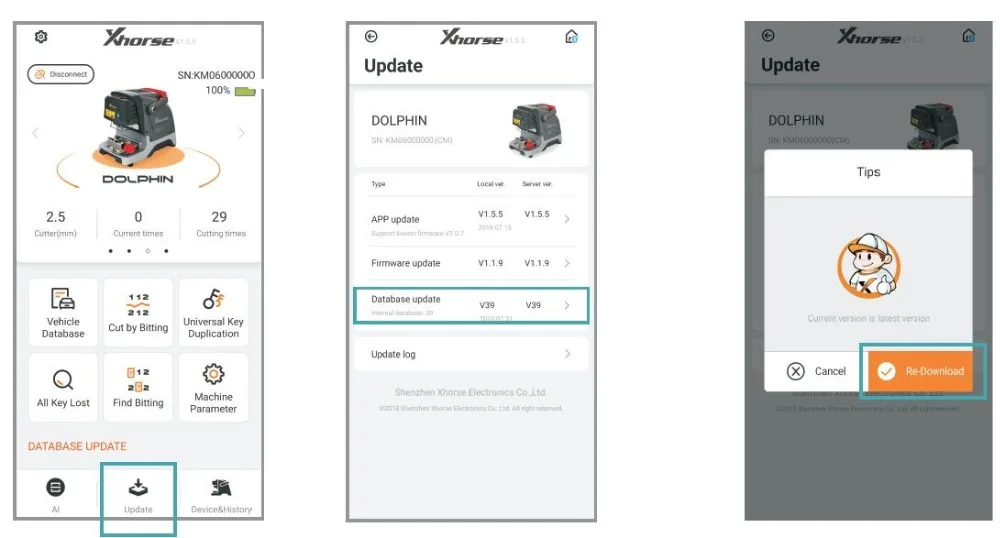

1) Enter Dolphin XP-005 main interface and click “Update”
2) Click “Database update”
3) If you find a new version,click “Update” and download the new version.
Click on “OK” after download database success
If cellphone connected by mobile internet data,a prompt saying that download maybe costs data fee,recommend downloading by WIFI.

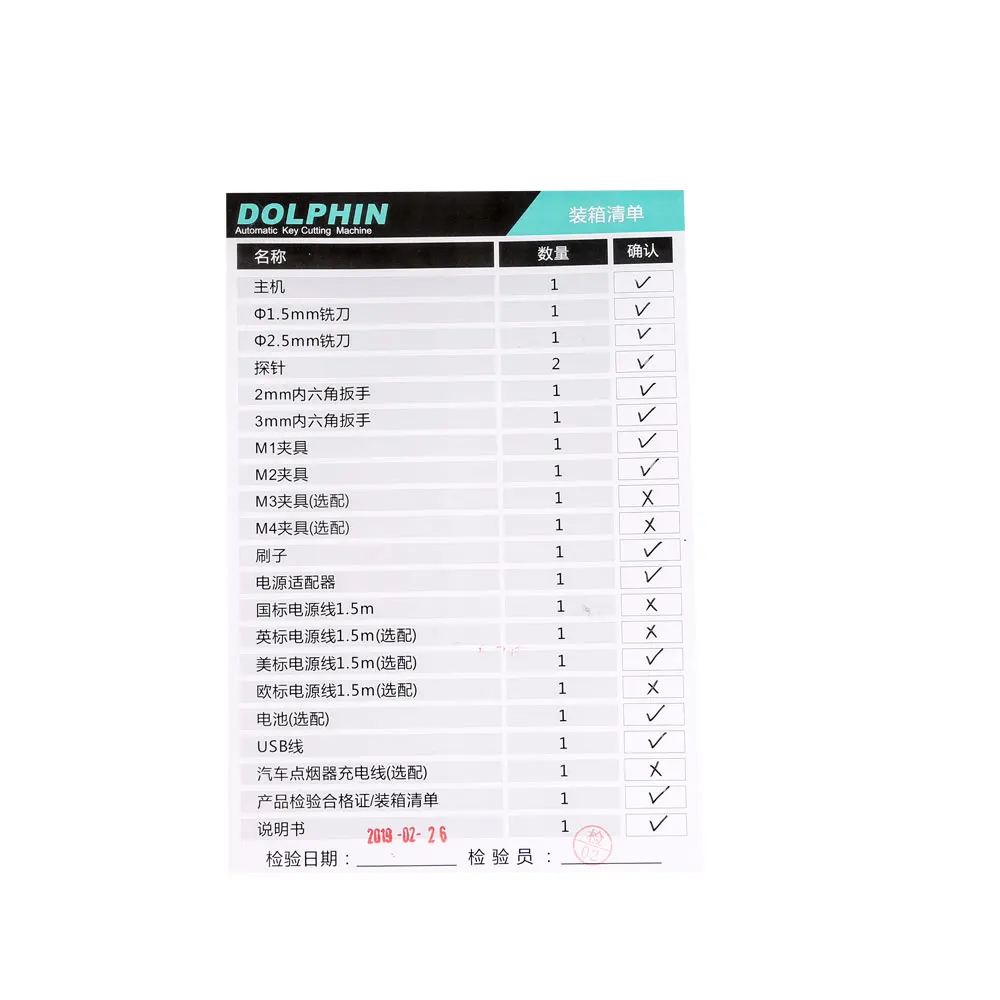

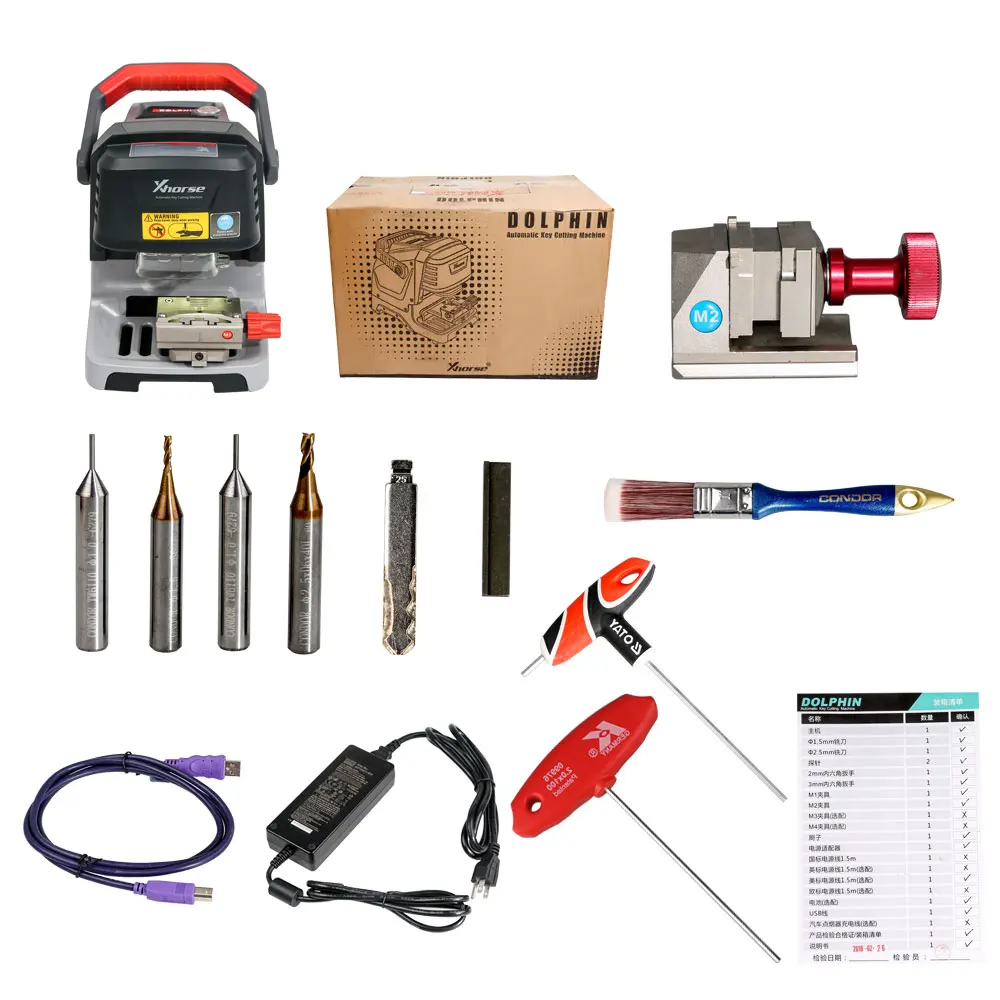

1pc x Condor Dolphin Main Machine

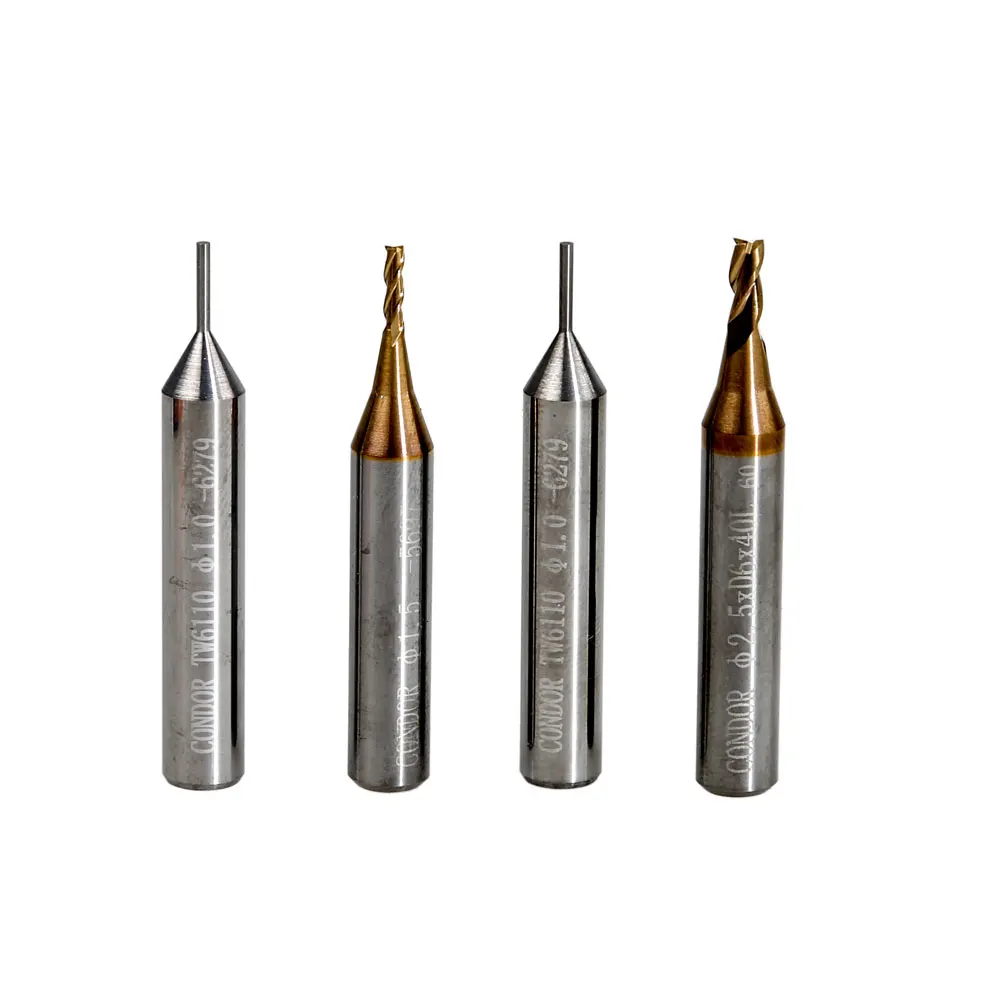

1pc x 2.5mm cutter
1pc x 1.5mm cutter
2pc x Probe

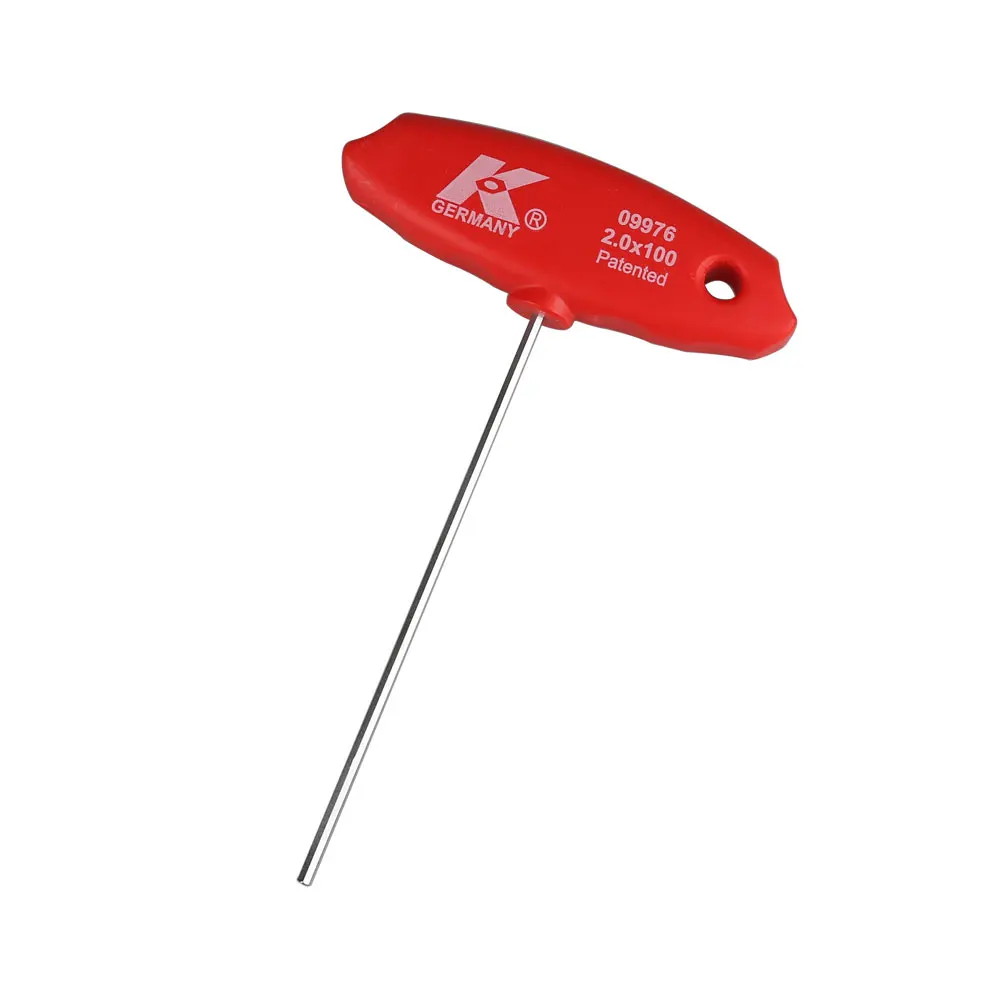

1pc x 2mm Hexagon bar wrench
1pc x 4mm Hexagon bar wrench

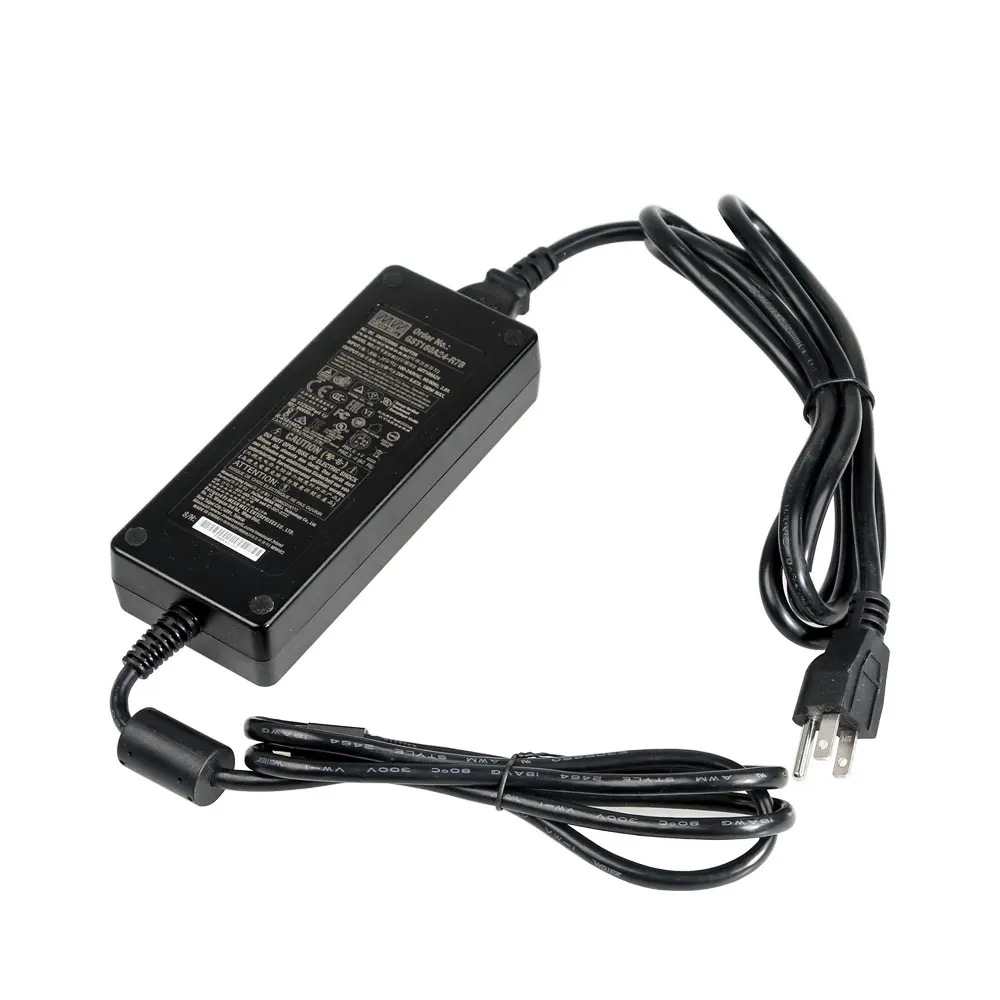

1pc x Power Adapter

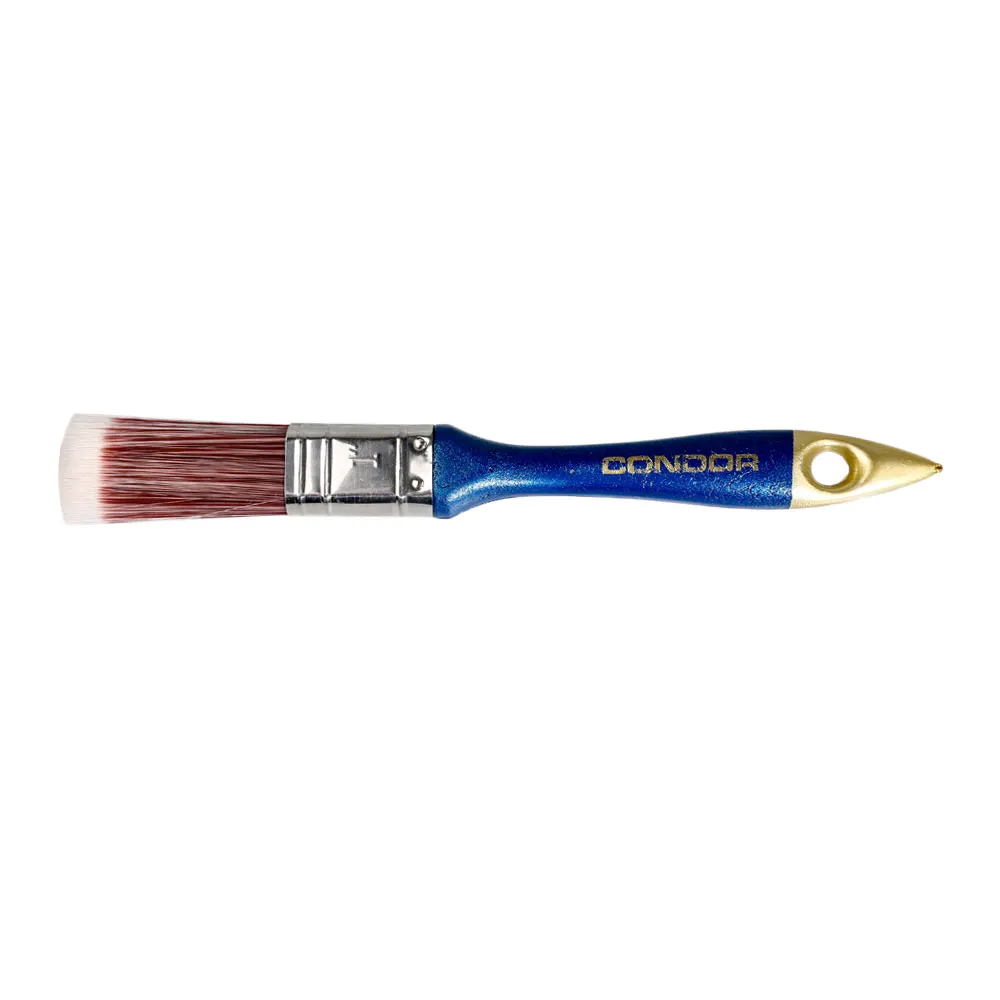

1pc x Brush

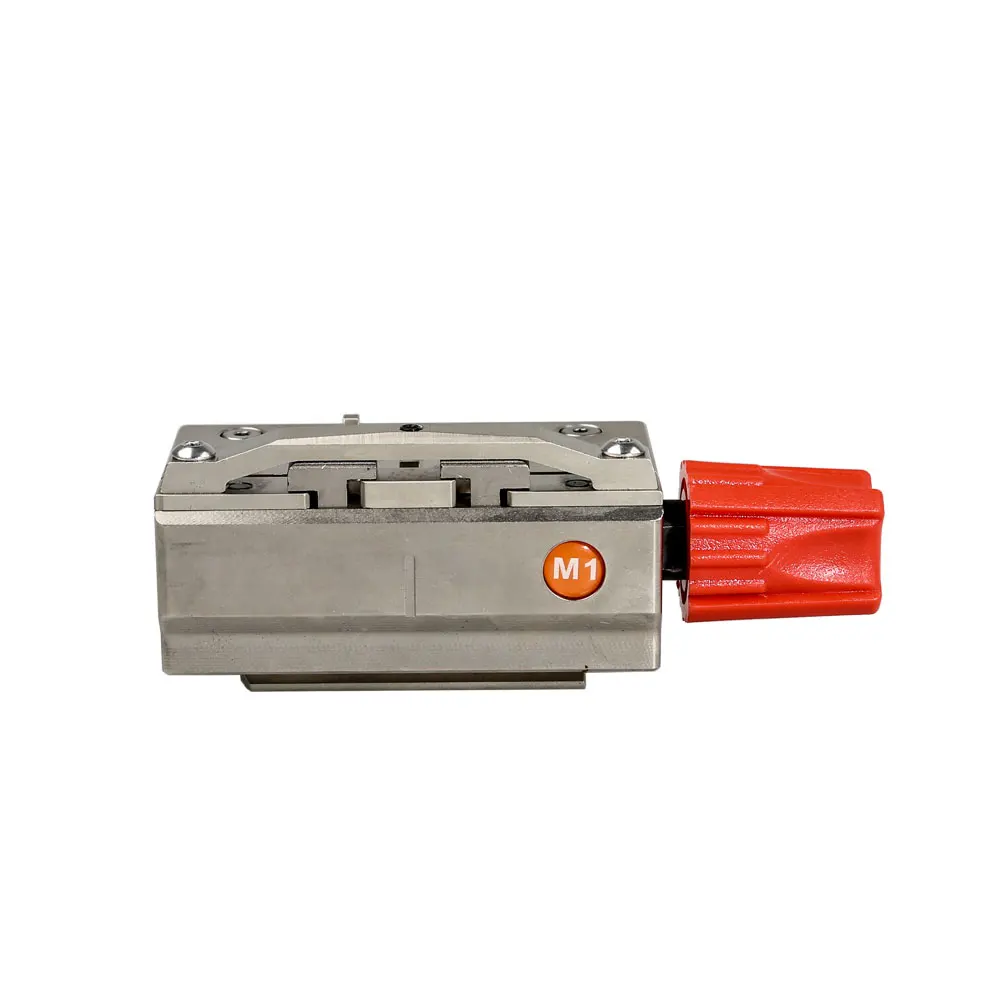

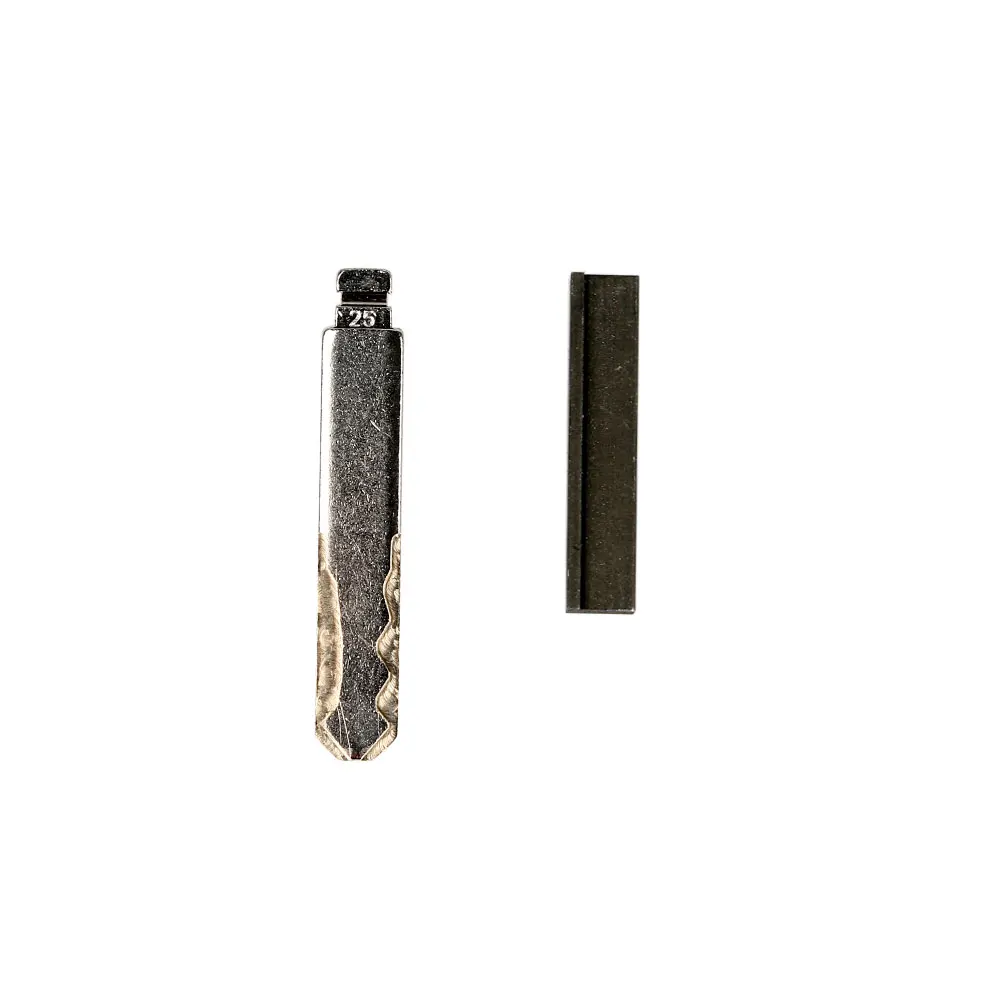

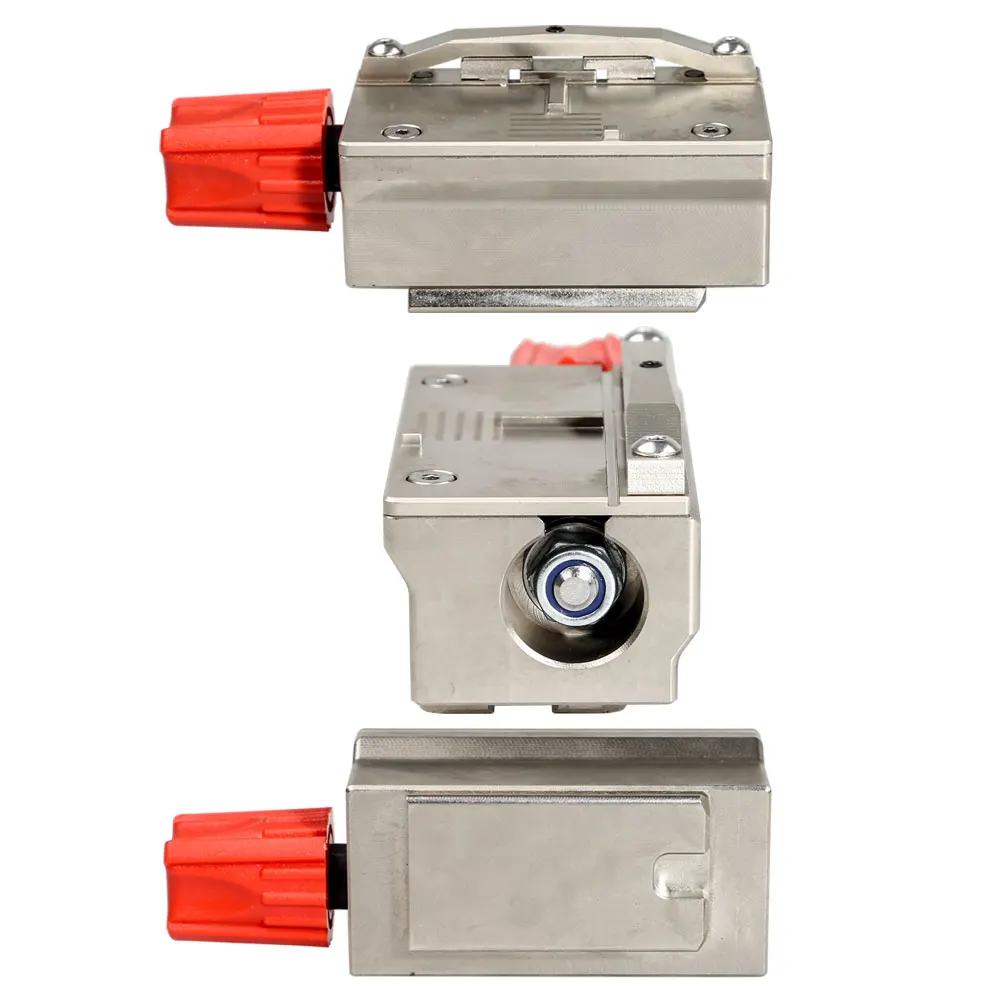

1pc x Clamp M1 and amp; Link Stopper

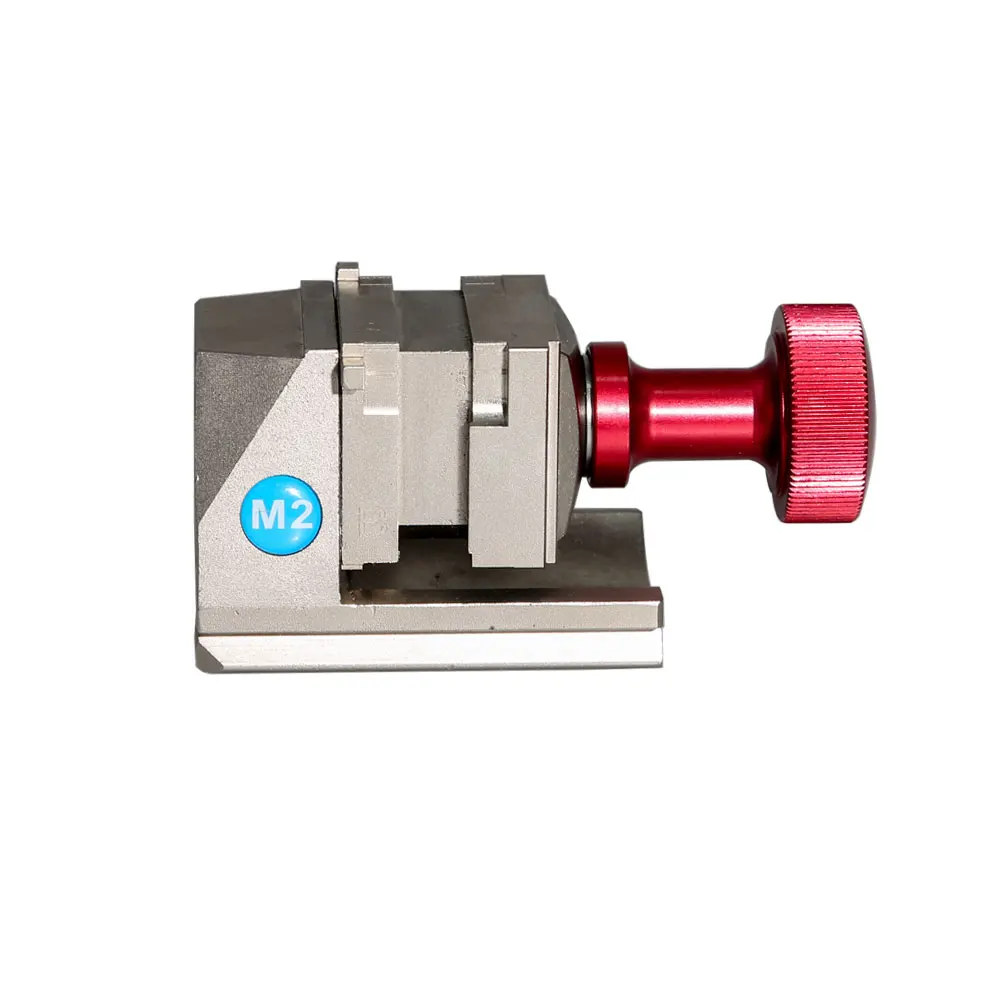

1pc x Clamp M2 and amp; shim
1pc x Clamp M3 (Optional)
1pc x Clamp M4 (Optional)
1pc x Product Quality Certificate
1pc x User Manual
