Product Description

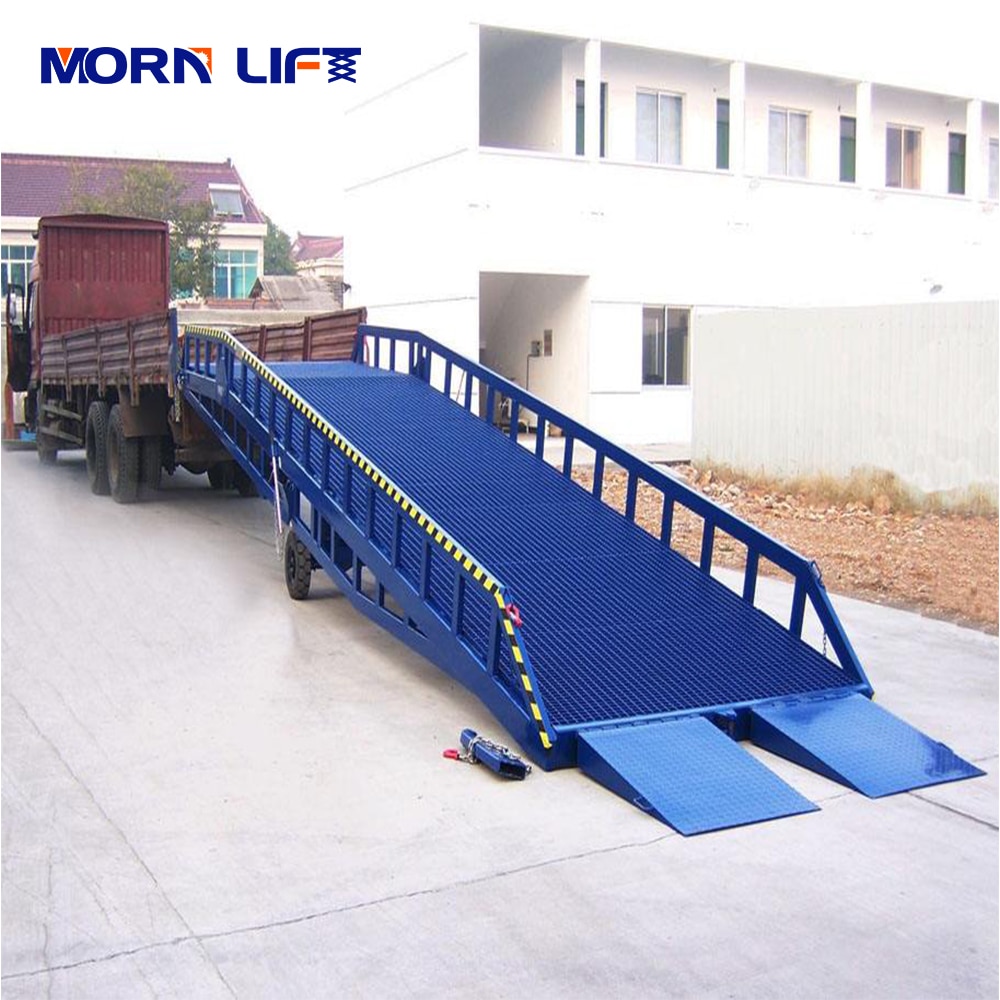

LOADING DOCK RAMP INTRODUCTIONThe loading ramp is different from others by its distinct characteristic. People can load and unload cargo from the container more easily by using dock ramps. And the forklifts can go up and down safely. MORN dock ramps are exported to the United States, France, Italy, Australia, Singapore, South Africa, the Philippines, Canada, Belgium and so on, more than 150 countries.
Product Features
1.Special auxiliary equipment for loading and unloading of goods rapidly.2.Fully hydraulic operation.3. Lift cylinder position provides a mechanical advantage and maximum support during a fail-safe situation.4. Could be operated by a single person easily, so it economizes on manpower and improves work efficiency.5. No need to remove the container from the vehicle, and the forklift can directly enter the container to carry the goods.6.Long service life7. Suitable for both indoor and outdoor jobs;8.Easy maintenance, only need to change hydraulic oil regularly
Configuration
1.Main girder: 120mm*60mm*4.5mm; Manganese steel rectangular tube. 2.Vice-girder:120mm*60mm*4mm; Manganese steel rectangular tube. 3.PLATFORM: Full paved by steel sheet and 8mm Checkered Steel Plate; 8 * 8 garland stencil, do anti-skid processing 4.Hydro-cylinder: both way high precision anti-wear hydro-cylinder. Φ80 Φ50*2pieces with locking device for fall protection.5.Hydraulic Pipe: high pressure pipe with double expanded metal protected. 6.Hydraulic Oil: 32# anti-wear Hydraulic Oil.7.Obturating ring: Brand Valqua Seal (import from Japan)8.Guard railing: 40mm*60*3mm steel rectangular tube9. Tires: Solid tires 500-8* 2pieces 10.Color: optional. Painted by enamel paint (twice priming paint, once finishing paint)
