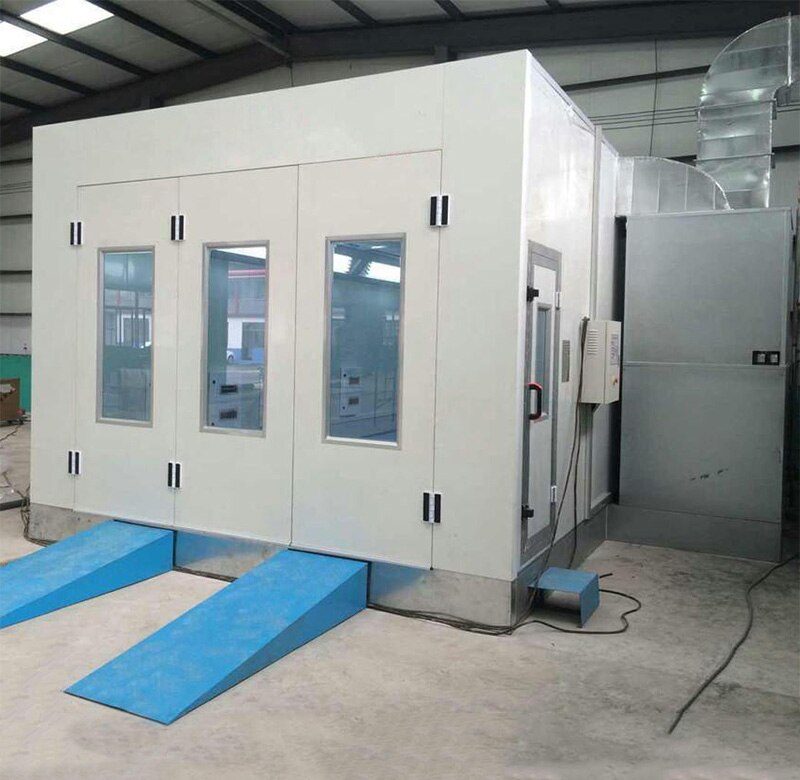

Special Equipment of Spray Paint Automobile Surface Repairing Spray Booth

Special Equipment of Spray Paint  Automobile Surface Repairing Spray Booth

NOTE: Product is heavy and volumn is big, So we can not send you by express, if you interest it, please tell us your city or your nearest port, we will send you by sea, train, or truck to your place, when goods arrived receipt place, Please help to clear the customs. We will provide full export documents, manual, installation instructions and so on.



50mm Rock wool board insulation flame retardant

Housing body outside diameter (mm) 7000L * 5450W * 3300H

Housing inside diameter size (mm) 6900L * 3900W * 2600H

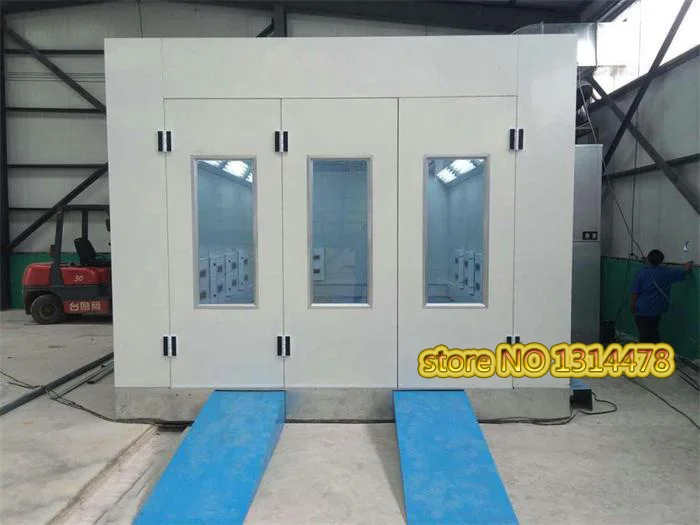

Front door width (mm) 3000

Front door height (mm) 2500

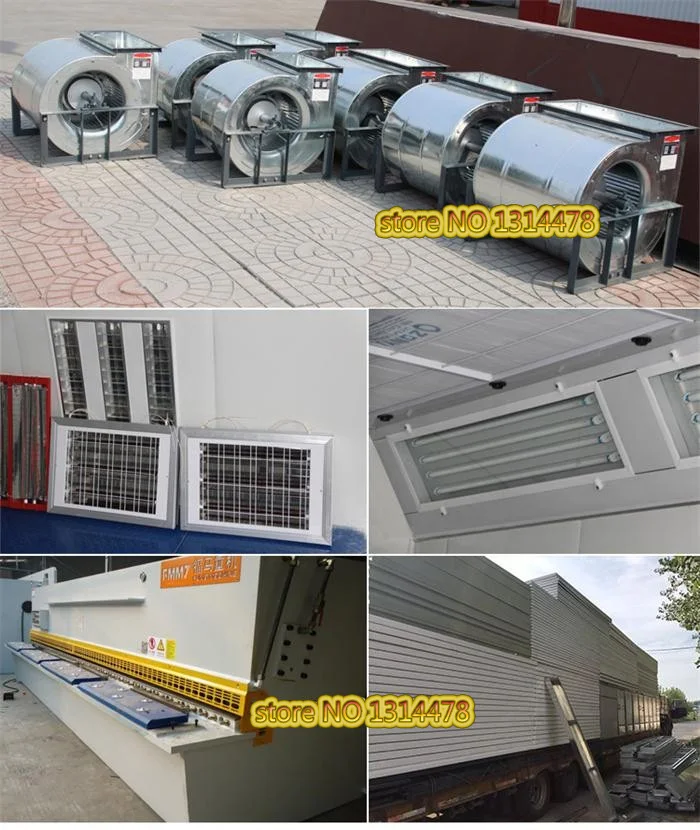

Blower (units / kw) 7.5kw / station * 1

Ventilator (Taiwan / kw) 7.5kw / station * 1

Fan air volume (m3 / h) 33000

Room ventilation frequency (times / h) 290

Full indoor wind speed (m / s) 0.32

Maximum working temperature (degree) 80

Heating rate (degree / min20-60) 4 ~ 6

Number of radiators (branch) 24-28

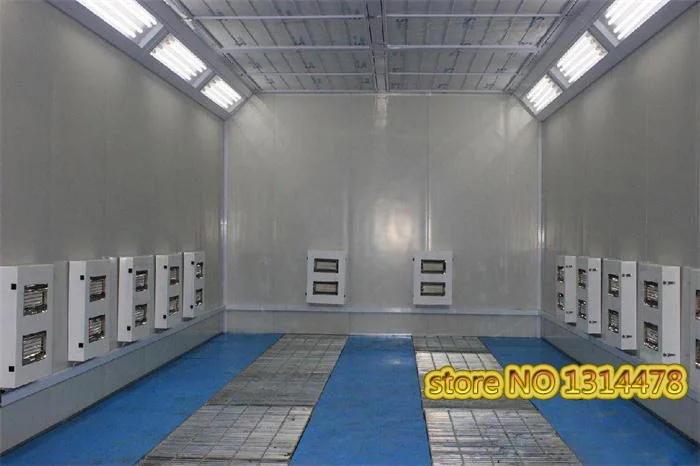

quantum radiator on top 3 sets, left and right 4sets, back 2 sets

Radiation Power (kw) 24 ~ 28

Illuminance (lex) 800

Filtration efficiency ≥98%

Noise (dba) ≤75

Total power (kw) 41
