XTOOL EZ500 Full-System Diagnosis for Gasoline Vehicles with Special Function Same Function With XTool PS80 Update Online
EZ500 Diagnosis System
XTOOL EZ500 Features:
*Easy registration when EZ500 is connected to WIFI
*One-click software update via WIFI
*Remote access
*Diagnosis reports in PDF file
*Record and playback live data
*8.0 inch multi-touch screen
*On-board battery
*Extensive vehicle coverage for most US, Asian and European vehicle makes
Language supported: English only
Specifications:
Xtool EZ500 Layout
① DC Charging port: Battery charging
② DB15 Interface: Supports wired connection with car by the cable
③ USB Type C Interface: Compatible with HDMI TV port; Transfer audio and video simultaneously
④ Power Button: Power on or power off
Xtool EZ500 Tablet Front View
Xtool EZ500 Tablet Back View
Xtool EZ500 Tablet Side View
EZ500 Exploded Diagram
Easy registration when EZ500 is connected via Wifi, no need connected to PC.
Connect to the vehicle directly with cable
① EZ500 Mainframe
② Main Test Cable
③ OBD2 16pin Connector
④ Vehicle
One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!
Remote access, which is perfect for training, demonstration and even remote diagnosis.
Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when they come and fetch their cars. They will be really happy knowing what kinds of problems have been fixed for their cars.
Extensive vehicle coverage for most US, Asian and European vehicle makes
American:
Europe:
Asia:
Chinese Vehicle:
Full System Diagnosis: Engine, ABS, Airbag, Transmission, Immobilizer,
Body (ECM), Chassis……
Basic functions: read fault codes, clear fault codes, live data, actuation
Accurate live data in both Wave and Dashboard form
Special functions: ABS bleeding, service light reset, DPF regeneration, steering angle calibration, battery reset, throttle body adaptation, Service light reset, Throttle Sensor Adjustment…..
Specification:
| Operating System: | Android 4.4.4 |
| Memory: | 1GB RAM,16GB Flash |
| CPU | Quad Core, 1.6 GHz |
| Display | 8.0 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution |
| Sensors: | Gravity Sensor, Light Sensor |
| Input/Output: | Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USBPort, TF Card Port |
| Battery: | 4000mAh, 7.4V |
| WIFI | WIFI 2.4Ghz |
| Bluetooth | 100 Meters |
| Power Voltage: | 12V |
| Power Consumption: | 29.6W |
| Operating Temperature: | -20 to 50℃(-4 to 126℉) |
| Humidity: | and lt;90% |
| Dimension: | (L*W*H): 240*177*30mm |

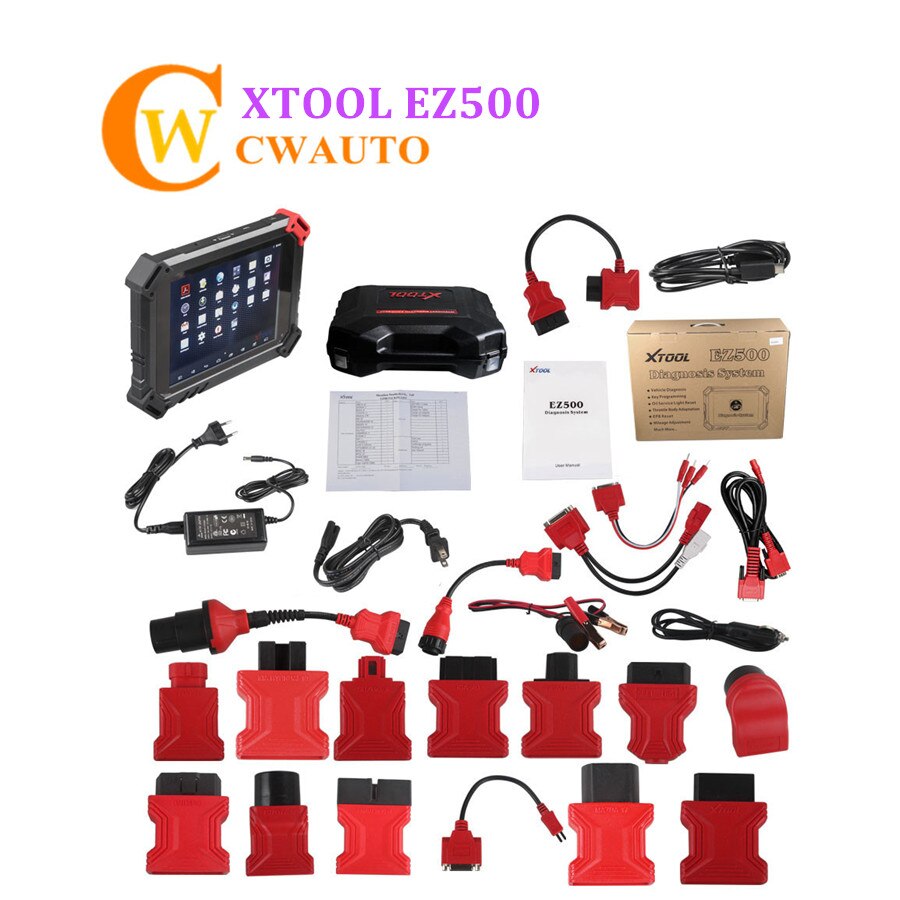

Package including:
1pc x EZ500 Tablet
1pc x Charger for Tablet
1pc x OBD II-16
1pc x HO-NDA-3
1pc x BM-W-20
1pc x TOY-OTA-17
1pc x MA-ZDA-17R
1pc x KI-A-20
1pc x NIS-SAN-14
1pc x G-M/DA-EWOO-12
1pc x SELFTEST
1pc x UNIVERSAL-3
1pc x SUZ-UKI-3
1pc x FI-AT-3
1pc x CITR-OEN-2
1pc x AU-DI-4
1pc x MITS-UBISHI-12+16
1pc x BE-NZ-38
1pc x BE-NZ-14
1pc x Main Cable
1pc x battery Cable
1pc x Cigar Lighter Cable
1pc x US Power Adapter
1pc x EU Power Adapter
1pc x Micro USB Cable
1pc x Case
1pc x Stand for EZ500
1pc x Certificate of Quality
1pc x Packing List
1pc x User Manual
1pc x Carton
