Xhorse VVDI Programmer Information Contents:

VVDI Prog V5.0.0 Update Information (2021-03-09)

* This version DON’t need update firmware
+ Add VVDI PROG USER MUNUAL 5.0.0
version in Doc folder
+ Add MAC9116VAG50 options in
and lt;2-MCU and gt;- and gt;
+ Add MC68HC11A1,
MC68HC11A8,
MC68HC11EA9,
MC68HC11E1,
MC68HC11E9,
MC68HC11E20,
MC68HC11E32,
MC68HC11F1,
MC68HC11K4,
MC68HC11KA2,
MC68HC11KA4,
MC68HC11KG4,
MC68HC11KS2,
MC68HC11KW1,
MC68HC11P2,
MC68HC11PA8,
MC68HC11PH8,
MC68HC711E9,
MC68HC711E20,
MC68HC711EA9,
MC68HC711PH8 options in
and lt;2-MCU and gt;- and gt;
+ Add  FORD-ECU(AM29BDD160GB)
option in and lt;3-ECU and gt;- and gt;
+ Add  YUANJING-BCM(2015) option
in and lt;4-IMMOBILIZER and gt;- and gt;
+ Add  T600-SMARTBOX(2014)
option in and lt;4-IMMOBILIZER and gt;- and gt;
+ Add  ECOSPORT-DASHBOARD(2015)
option in and lt;5-DASHBOARD and gt;- and gt;
+ Add  REGAL-AIRBAG(2018) option in
and lt;7-AIRBAG and gt;- and gt;
+ Add  TOUAREG-CHASSIS-MODULE(2010)
option in and lt;8-OTHER and gt;- and gt;
* Fix some bug

VVDI Prog V4.9.9 Update Information (2021-02-03)

* This version DON’t need update
firmware
+ Add VVDI PROG USER MUNUAL 4.9.9
version in Doc folder
+ Add EPCS1,
EPCS16,
EPCS128,
EPCS4,
EPCS64 options in
and lt;1-EEPROM and amp;FLASH and gt;- and gt;
+ Add AT59C11,
AT17C128,
AT17C256,
AT26DF081 options in
and lt;1-EEPROM and amp;FLASH and gt;- and gt;
+ Add EN25x05,
EN25x10,
EN25x16,
EN25x20,
EN25x32,
EN25x40,
EN25x64,
EN25x80 options in
and lt;1-EEPROM and amp;FLASH and gt;- and gt;
+ Add BR9010,
BR9020,
BR9040 options in
and lt;1-EEPROM and amp;FLASH and gt;- and gt;
+ Add S-29255,
S-29355 options in
and lt;1-EEPROM and amp;FLASH and gt;- and gt;
+ Add R5F10ExAx_Flash_16KB_Write,
R5F10ExCx_Flash_32KB_Write,
R5F10ExDx_Flash_48KB_Write,
R5F10ExEx_Flash_64KB_Write,
R5F10E_Data_4KB_Write
options in
and lt;2-MCU and gt;- and gt;
+ Add M30622F8,
M30623F8,
M3062CF8,
M30620FC,
M3062LFG,
M30626FH,
M30626FJ,
M30621FC,
M3062AFC,
M3062BFC,
M306N4FG,
M30625FG,
M30627FH,
M3062JFH,
M30627FJ,
M306N4FC
options in
and lt;2-MCU and gt;- and gt;
+ Add M30843FW,
M30843FH,
M30833FJ,
M30835FJ,
M30843FJ,
M30845FJ,
M30853FJ,
M30855FJ,
M30845FW,
M30853FW,
M30855FW,
M30845FH,
M30853FH,
M30855FH,
M30880FW,
M30882FW,
M30880FH,
M30882FH,
M30880FJ,
M30882FJ
options in
and lt;2-MCU and gt;- and gt;
+ Add R5F64525_UART,
R5F64524_UART
R5F6452M_UART,
R5F6452N_UART
options in
and lt;2-MCU and gt;- and gt;
+ Add R5F11N/11PxFx_Flash_96KB_Write,
R5F11N/11T/11RxGx_Flash_128KB_Write,
R5F11NxEx_Flash_64KB_Write,
R5F11N_Data_4KB__Write
options in
and lt;2-MCU and gt;- and gt;
+ Add R5F107xCx_Flash_32KB_Write,
R5F107xEx_Flash_64KB_Write,
R5F107_Data_4KB_Write
options in
and lt;2-MCU and gt;- and gt;
+ Add R5F10MxEx_Flash_64KB_Write,
R5F10MxGx_Flash_128KB__Write
options in
and lt;2-MCU and gt;- and gt;
+ Add R5F10Rx8x_Flash_8KB_Write,
R5F10RxAx_Flash_16KB_Write,
R5F10RxCx_Flash_32KB_Write,
R5F10R_Data_2KB__Write
options in
and lt;2-MCU and gt;- and gt;
+ Add R7F701201,
R7F701205,R7F701501,
R7F701502,R7F701503,
R7F701506,R7F701507,
R7F701508,R7F701511,
R7F701512,R7F701513,
R7F701521,R7F701522,
R7F701524,R7F701525,
R7F701526,R7F701527,
R7F701528,R7F701529,
R7F701530,R7F701531,
R7F701534,R7F701708,
R7F701709,R7F701710,
R7F701711,R7F701714,
R7F701715,R7F701644,
R7F701645,R7F701646,
R7F701647,R7F701648,
R7F701649,R7F701650,
R7F701651,R7F701652,
R7F701653,R7F701684,
R7F701685,R7F701686,
R7F701687,R7F701688,
R7F701689,R7F701690,
R7F701691,R7F701692,
R7F701693,R7F701694,
R7F701695,R7F701032,
R7F701371,R7F701372,
R7F701396,R7F701373,
R7F701374,R7F701397,
R7F701A22 options in
and lt;2-MCU and gt;- and gt;
+ Add D70F3461 option in
and lt;2-MCU and gt;- and gt;
+ Add CEM(R5F64524),
CEM(R5F64525)
options in
and lt;4-IMMOBILIZER and gt;- and gt;
+  Add LEXUS(R7F701A22) option in
and lt;7-AIRBAG and gt;- and gt;
+ Add B48(ADAPTER) option in
and lt;10-BOSH-ECU-ADAPTER and gt;- and gt;
* Fix some RH850 options
* Fix some STM8 options

VVDI Prog V4.9.8 Update Information (2020-12-31)
* This version DON’t need update firmware
+ Add VVDI PROG USER MUNUAL 4.9.8 version in Doc folder
+ Add AT25SF041 options in
and lt;1-EEPROM and amp;FLASH and gt;- and gt;
+ Add AK93C45,
AK93C55,
AK93C65 options in
and lt;1-EEPROM and amp;FLASH and gt;- and gt;
+ Add AT24RF08,
AT34C02 options in
and lt;1-EEPROM and amp;FLASH and gt;- and gt;
+ Add EN25B05 options in
and lt;1-EEPROM and amp;FLASH and gt;- and gt;
+ Add MB89RC04,
MB89RC16 options in
and lt;1-EEPROM and amp;FLASH and gt;- and gt;
+ Add M24M01,
M24M02 options in
and lt;1-EEPROM and amp;FLASH and gt;- and gt;
+ Add Y25F05 options in
and lt;1-EEPROM and amp;FLASH and gt;- and gt;
+ Add R5F10Yx4x_Flash_1KB_Write,
R5F10Yx6x_Flash_2KB_Write,
R5F10Yx6x_Flash_4KB_Write
options in
and lt;2-MCU and gt;- and gt;
+ Add R5F105_Data_2KB_Write,
R5F105xAx_Flash_16KB_Write
options in
and lt;2-MCU and gt;- and gt;
+ Add R5F102/103x6x_Flash_2KB_Write,
R5F102/103x6x_Flash_4KB_Write,
R5F102/103x6x_Flash_8KB_Write,
R5F102/103x6x_Flash_12KB_Write,
R5F102/103x6x_Flash_16KB_Write
options in
and lt;2-MCU and gt;- and gt;
+ Add R5F113_Data_8KB_Write,
R5F113_Data_16KB_Write,
R5F113xGx_Flash_128KB_Write,
R5F113xHx_Flash_192KB_Write,
R5F113xJx_Flash_256KB_Write,
R5F113xKx_Flash_384KB_Write,
R5F113xLx_Flash_512KB_Write
options in
and lt;2-MCU and gt;- and gt;
+ Add CS75-HAND-BREAK-MODULE
option in and lt;8-OTHERS- and gt;
+ Add FOCUS-BCM-R7F701053(2019)
option in and lt;8-OTHERS- and gt;
+ Add MKC-BCM
option in and lt;8-OTHERS- and gt;

VVDI Prog V4.9.5     (2020-08-24)
*  This  version  DON’t  need  update firmware
*  Fix  RH86  bug
*  Fix  RH850  Series  bugs
+  Add  VVDI  PROG  USER  MUNUAL  4.9.5
version  in  Doc  folder
+  Add  24AA025,
24AA1025,
24AA1026  options
in and lt;1-EEPROM and amp;FLASH- and gt;
+  Add  FOTON(MC9S12G128)  option  in
and lt;4-IMMOBILIZER- and gt;
+  Add  HC05X32(1D69J)  option  in
and lt;4-IMMOBILIZER- and gt;
+  Add  300C-46  option  in
and lt;4-IMMOBILIZER- and gt;
+  Add  S350-CONTROL-UNIT-PKE  option  in
and lt;4-IMMOBILIZER- and gt;
+  Add  MAXUS-V80  option  in
and lt;5-DASHBOARD- and gt;
+  Add  CAPTU-AIRBAG  option  in
and lt;7-AIRBAG- and gt;
+  Add  VOLVO-AIRBAG(2020)  option  in
and lt;7-AIRBAG- and gt;
+  Add  C205-CHAIR-MODULE
option  in   and lt;8-OTHERS- and gt;
+  Add  FAW-BCM(MPC5603BxLQ)
option  in   and lt;8-OTHERS- and gt;
+  Add  BOYUE-PRO(2020)-PEPS-CONTROLLER
option  in   and lt;8-OTHERS- and gt;
+  Add  BOYUE-TIRE-PRESSURE-MODULE
option  in   and lt;8-OTHERS- and gt;
+  Add  VV5-TAILGATE(2017)
option  in   and lt;8-OTHERS- and gt;
+  Add  RFA-SECURED(SPC560B60L3)
option  in   and lt;8-OTHERS- and gt;
+  Add  MAGOTAN-LEFT-FRONT-DOOR-MODULE
option  in   and lt;8-OTHERS- and gt;
+  Add  MAGOTAN-REVERSING-RADER-MODULE
option  in   and lt;8-OTHERS- and gt;

How To Update VVDI Prog Programmer Online?

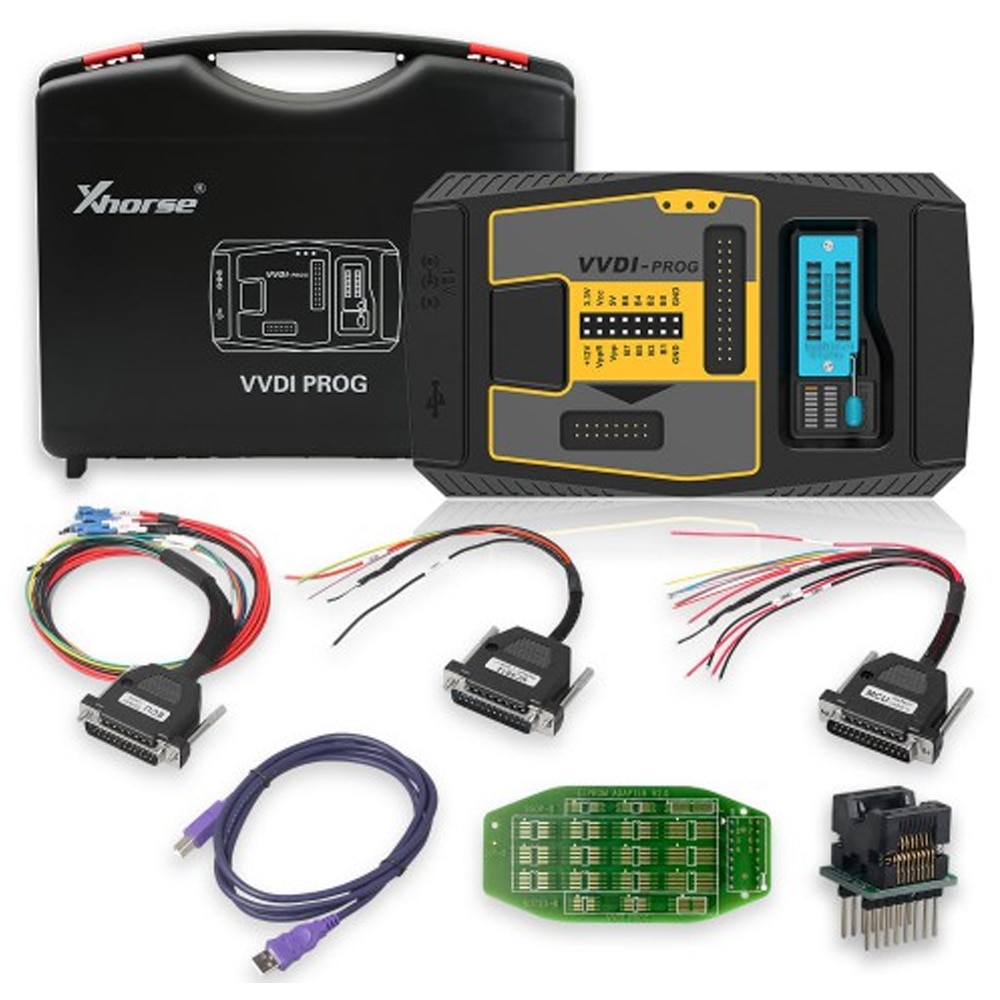

VVDI Prog Connection for Sprinter:

1.16 Pin DIP socket Function:
Read EEPROM chips Use method: Follow the image direction when insert the DIP chip (PIN1 as yellow point show as the picture);
SOP chip need soldering on 16Pin adaptor first, then insert the chip follow the image direction


2. MCU  Reflash  Cable
Function:Read and amp; Write MC68HC(9)12, V850, H8X, R5C series chips,current version is V2
Use method:Soldering the line on pin of chip before read and amp; write
Notes:
(1) Please check all connection lines,ensure correct and reliable connection
(2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed.

3. ECU Reflash Cable
Function:Read and amp; Write engine ECU
Use method:Connect the ECU and R and amp;W
Notes:Please check all connection lines, ensure correct and reliable connection

4.MC9S12 Reflash Cable
Function:Read and amp; Write MC9S08, MC9S12 series chips, current version is V1
Use method:Soldering the line on pin of chip before read and amp; write
Notes:
(1) Please check all connection lines,ensure correct and reliable connection.
(2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed.

did a few tests today and this is what I found out.
It seems that VVDI prog reading speed is dependent on the processor speed of the computer.
CAS3 0L15Y flash read times
Centrino processor @ 1.6ghz Windows XP = 12mins
Core2 Duo processort @ 2.5ghz Windows 7 32 bit = 5 mins
i7 @ 4.4ghz Windows 7 64 bit = 2mins 30 seconds.
Other programmers do not seem to be affected by processor speed at all.
I also would of thought this was a fairly easy question to answer without me doing all the testing
Tested by me: cas 2, cas 3, cas 3+, Cas4 5m48h, volvo cem v40 all ok.
Is a very good tool and for bmw cas4 .
I tested today D80 and a m35080v6, and they work perfect.
Mine erased D160 (BMW F01 dash) with no problem.
Tried to renew bmw e series 868 key. Vvdi programmer claimed operation success but in tango key is now recognized as transponder type A. locked
I did renew 2 keys! Both worked and now are programmed to cars!
Only thing you need to disconnect from PCB is battery while writing the renew file. (Remove the batteries)
Renew BMW series E 868 key – 100% OK z vvdi-prog v4.5.7
FRM3 works perfectly
More EDC17 under ECU section would be great!
Especially BMW EDC16 and EDC17 for ISN purposes.
BMW F series FEM module reading but for that i can only dream about…
BMW BMSX bike ECU would be great…
Renew pcf7946 and 29f family
Renew E series remote with pcf7942 / pcf7944 would be fine
Unlock and download the 9S12G128 secure without erasing it first would be nice .
erasing all 35080s and d80 with soic clip would be super nice too!
I read the CAS3+ MCU with VVDI Prog and that worked perfect.
BMW FRM3 series Exx – READ and WRITE – OK
BMW KEY series Exx – OK
BMW DashBoard 6WB 160DQWT – READ , ERASE , WRITE – OK
