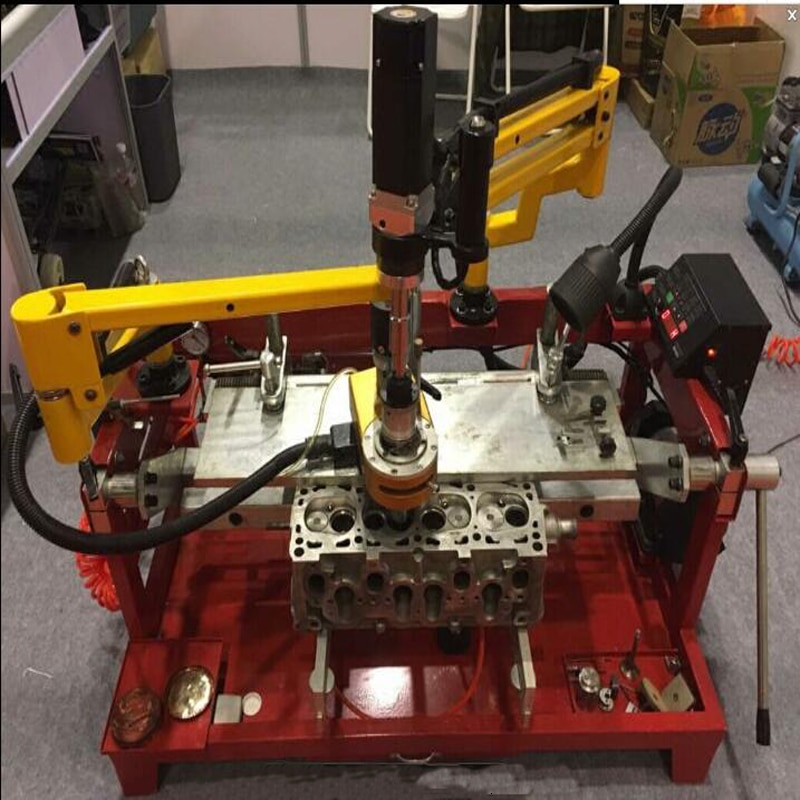

WQT14-66mm universal valve seat boring machine (horizontal type)

Product Name: WQT14-66mm universal valve seat trampoline

Product model: 1.2M*90*80

Product introduction:

The universal valve seat boring machine is suitable for the repair of various engine cylinder head valve seat rings. It adopts pneumatic positioning and is equipped with various working tools to process the valve seat holes of various angles of the automobile cylinder head. Equipped with boring and drilling tools, it can be used for boring, drilling, expanding, hinge valve seat holes and valve guide holes. This product is a special equipment for engine valve seat hole repair. The boring head adopts pneumatic positioning, the centering is fast and accurate, the repair quality is reliable, the operation is convenient, and the work efficiency is high. It can process all kinds of valve cylinder heads and valve seat holes of various angles.

It is based on the original valve reamer to improve its appearance and performance, namely manual variable pneumatic, manual positioning and variable pneumatic positioning, once again improve the positioning accuracy of the machine tool and the quality assurance after processing.

Features:

1. Wide application: All valve seat holes can be used at various angles of 14-66mm.

2, one molding: the working surface of the seat and the upper and lower chamfers, once processed.

3, accurate positioning: the use of pneumatic vertical positioning, can accurately ensure the valve seat working face, the position of the upper and lower chamfer and the coaxiality with the valve guide.

4. The machine tool spindle is flexible and the positioning is fast and accurate.

5, can be turned over the clamp, easy to operate.

6, a variety of molding props and positioning mandrel, wide applicability.

7. The processed valve seat generally does not need to be ground and can be used together with the new valve.

8. After the drilling and reaming tools are added, the transformation of the conduit holes can be carried out. It can also process the waste seat and the expansion valve seat hole, etc., and use one machine.

9. The reamer can be changed after being blunt, the blade is made of hard alloy material, and the special hard seat can be processed, and the blade is permanently supplied.

10, humanized design, complete equipment functions, the machine with a sharpener, air pump, work table lamp, etc., easy to operate, easy to use, reducing the labor intensity of workers.

Package includes; 1 set
