Introduction to paint room parameters

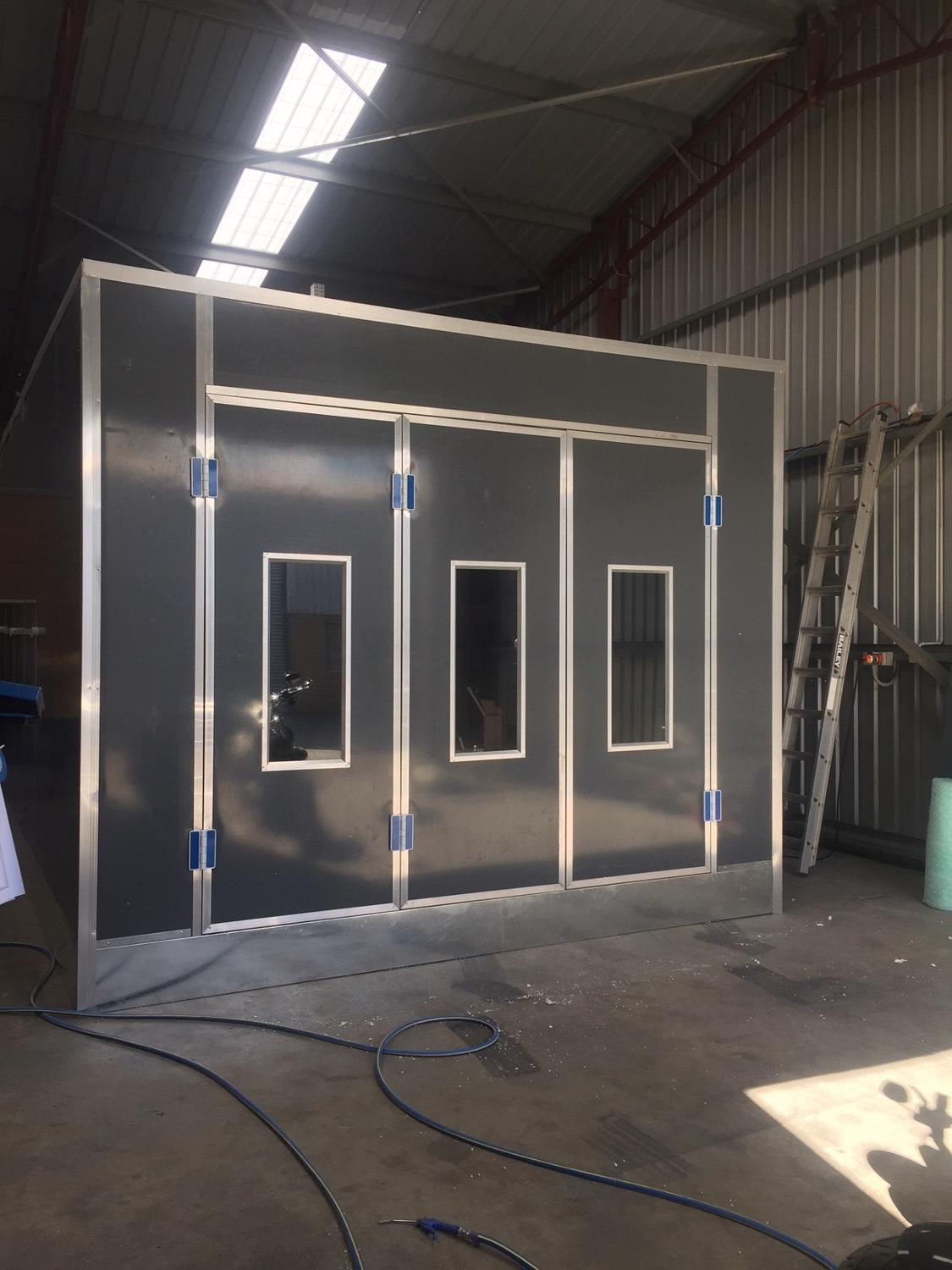

Inside dimension:6900*3900*2650mmOutside dimension:7000*5000*3320mm;Main door (W*H):3fold door,3000*2600mm,covered frame door ,cast aluminium hinge.Personal door(W*H):700*2000mmWallboard: 50mm thick EPS panels,0.33mm steel thickness Intake fans:2*3kw intake fans；exhaust fan:1*5.5kw exhaust fan；Heating type:Oil heating Riello G10;Ceiling light: 8units*3pcs=24pcs*18W;side light: 6units *2pcs=12pcs*18W;Air funnel :70 quadrate type,two straight one crookedFilter system:the primary filter ,ceiling filter ,floor filterControl system:Light switch ,spraying,baking ,temperature controller,time setting,emergency stop,failure indicator ,voltage indicted.Basement and floor :Five rows flat steel grilles2 pieces of ramps,each size 1000*1600mm(W*L)Power :(380V,50HZ,3phase)
