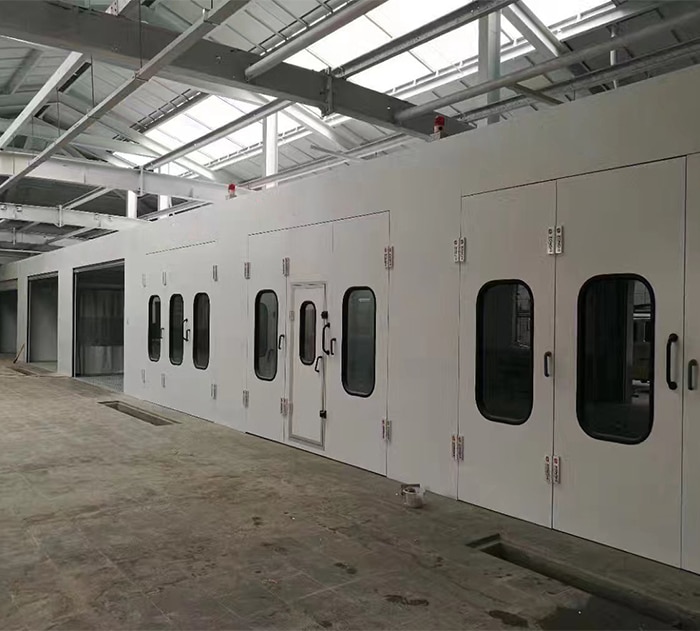

Large Auto-reparing Shop Spray Booth Paint Production Line For Custom Made

Large Auto-reparing Shop Spray Booth Paint Production Line For Custom Made

NOTE: Product is heavy and volumn is big, So we can not send you by express, if you interest it, please tell us your city or your nearest port, we will send you by sea, train, or truck to your place, when goods arrived receipt place, Please help to clear the customs. We will provide full export documents, manual, installation instructions and so on





Procedure

Prepared Cars/Metal Sheet Disassemble-Puttying-surface coating-Putty Polishing-putty polishing-Clean and Cover-Surface Coating-Baking-Polish-Assembly

Station Number

According to customer’s needed.

Optional Equipment

Infrared lamp (For Sanding Middle Coat and Primer Paint station)
Ceiling Movable Pulley Infrared Lamp (For baking station)

Optional Quantity of equipment

Sanders with dust extraction 1 set, Spray Gun 2 sets, Air compressor 1 sets, equipped the air tube, other tools etc.
The power supply and concrete foundation prepared by the buyer, the supplier provide the drawing of foundation.

Estimated Procedure Finish Time

Bottleneck Station is Surface Coating, about 30 min, output 15-20 cars per day and  10 work  hours a day.

Paint  booth  (left  booth)

Wall board

EPS  colorful  steel  skin  panel  ,  50mm  thick,  tongue   and amp;  groove  style  ,compound  construction  .

 Basement

330mm  thick,  galvanized  steel  sheet  and  square  steel  pipe  assembling,  corrosion-resistant    steel  square  pipe  assembly,configure  two  road  grille  and  three  diamond  plate.two  embossed  steel  ramps.

Entrance Door

3000*2500mm    ,    Entrance  door  :1set    (3pcs)
Material  :  steel  plate  +  rock  wool  .door  hinge  adopt  high strength  steel  .    The  strength  of  the  bolt  is:  12  level  .

Circulation  system

Intake  system  :  One  set  7.5kw  direct-drive  inlet  fan.
Outlet  system  :  One  set  7.5kw  direct-drive  inlet  fan.

Water-born  paint  system

Dry  air  blower  for  waterborn  paint  fan    :  2.2kw  /set    *    2set

Lighting  system

Lighting  :  8  group  *4pcs      total  32pcs    Omron  brand  lamp.
External  type  installation  ,simpler  and  easier  installation  of  maintenance.  With  explosion  -proof  ,  IP  Grade:  IP65.

Purification  system

Inlet  air  filter  is  made  of  high-quality  filter  cotton,  effectively  capture  greater  than  10um  ,
top  filtering  for  Italian  high  into  the  VI  filter  cotton,  effectively  capture  greater
the  5um  dust  particles.  To  filter  for  glass  fiber  cotton

Middle  door  -manual  folder  door

Baking  booth  (right  door  )

Cabin  system

1.Wall  board  :EPS  colorful  steel  skin  panel  ,  50mm  thick,  tongue   and amp;  groove  style  ,compound  construction  Anti-flame  and  heat insulation,  galvanized  steel  roof  panel  . Upper  body  size:  450mm

2.  Basement  :  330mm  thick,  galvanized  steel  sheet  and  square  steel  pipe  assembling,  corrosion-resistant  ,Steel square pipe assembly, configure two road grille and three diamond plate.two embossed steel ramps.

3.  Exit  Door  :  3000*2500mm    ,    Entrance  door  :1set    (3pcs)
Material  :  steel  plate  +  rock  wool  .door  hinge  adopt    high-strength  steel  .    The  strength  of  the  bolt  is:  12  level

Heating  system

Burner  plates  for  Italy  Noue,  G20-  maximum  calorific  value  as  18  000kcal  .

Exchange used S US304 high-quality stainless steel argon arc welding

10-Newton for Switzerland imported electric actuator, spray paint automatic switching .

Max. Temperature: 80 ℃, heating rage: 4-6min(20-60 ℃ ). Fuel consumption : 4-6kg/set



Circulation  system

Intake  system  :  One  set  7.5kw  direct-drive  inlet  fan.

Lighting  system

Lighting  :  8  group  *4pcs      total  32pcs    Omron  brand  lamp.
External  type  installation  ,simpler  and  easier  installation  of  maintenance.  With  explosion  -proof  ,  IP  Grade:  IP65.

Control  system

Siemens  electrical  components  :  the  main  circuit  is  equipped  with  multiple  protection  .
 Equipped  with  light  switch  ,temperature,  time  settings,  painting,  spray  paint,  paint  up
thermostat  gateway  .fault  alarm  ect.

Purification  system

Inlet  air  filter  is  made  of  high-quality  filter  cotton,  effectively  capture  greater  than  10um  ,
top  filtering  for  Italian  high  into  the  VI  filter  cotton,  effectively  capture  greater
the  5um  dust  particles.  To  filter  for  glass  fiber  cotton
