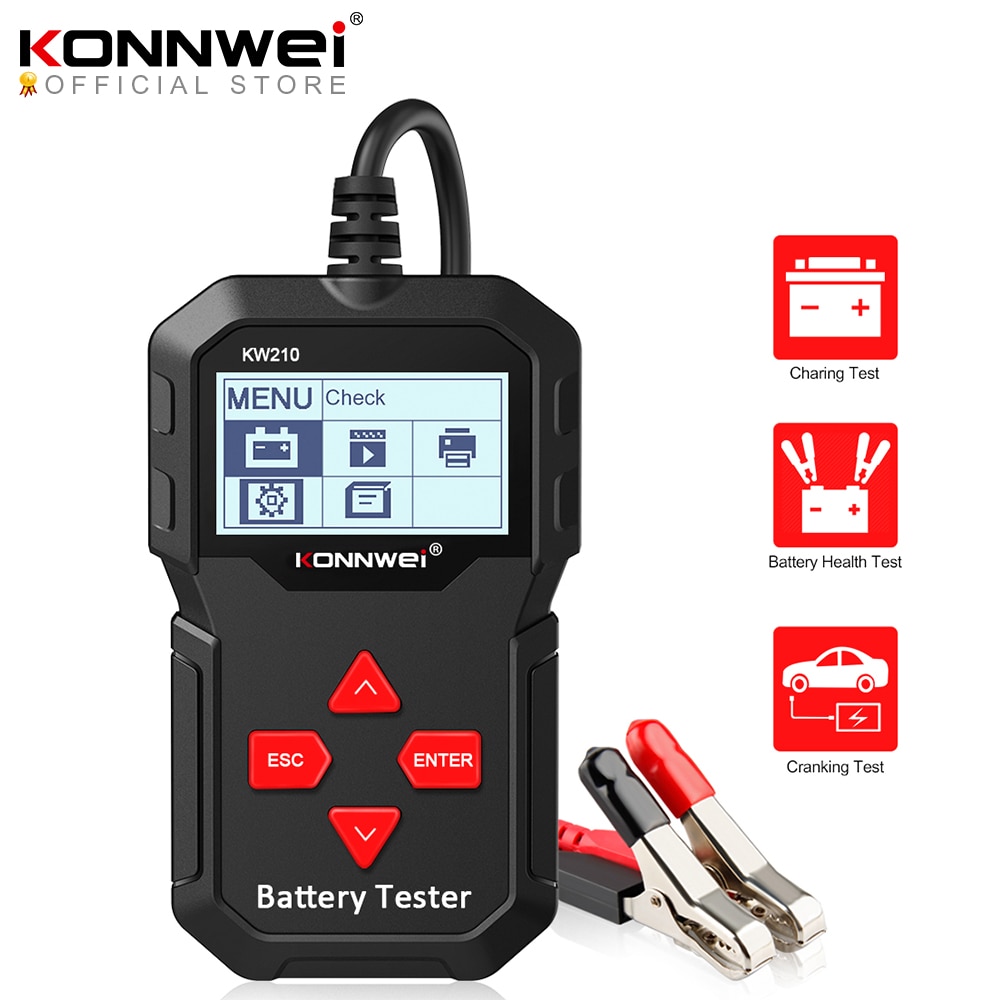

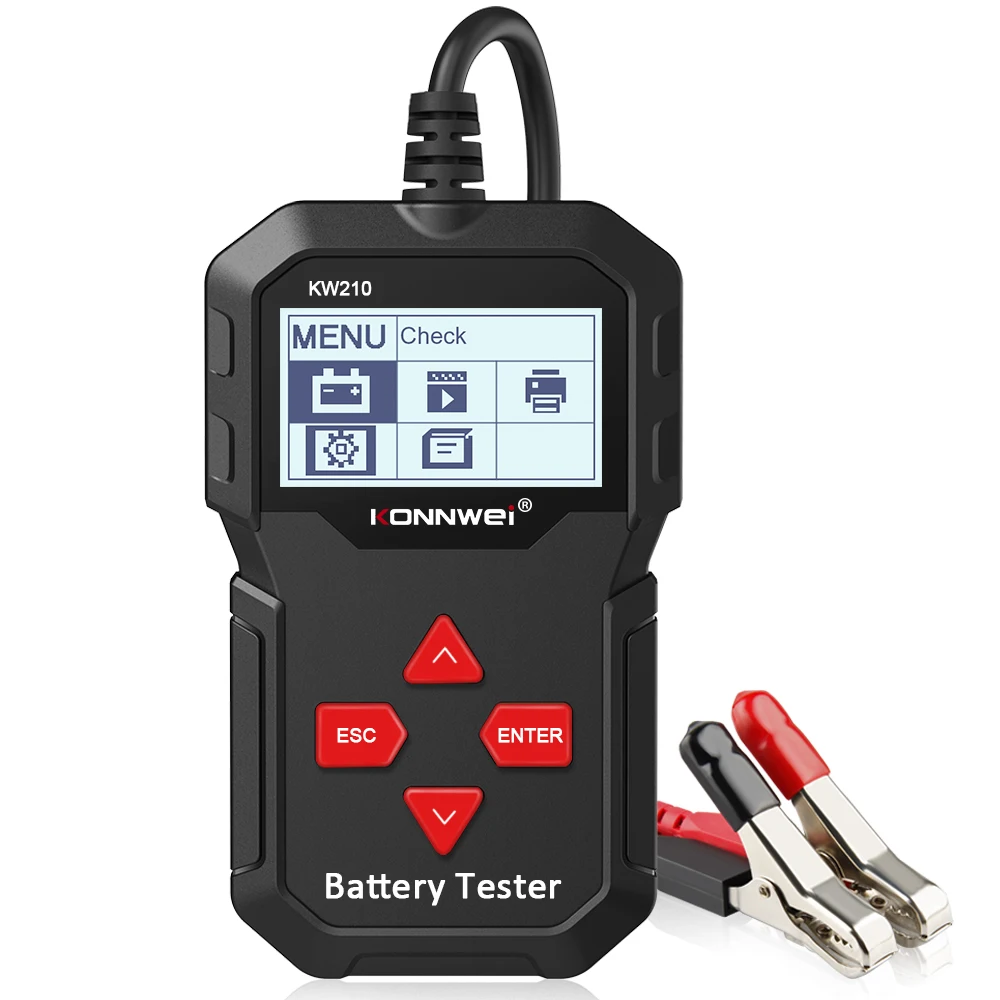

KONNWEI KW210 Automatic Smart 12V Car Battery Tester Auto Battery Analyzer 100 to 2000CCA Cranking Car Battery Tester

Product Description

KONNWEI KW210 is the newest battery tester upgraded from the old classic backlit tester in the market, aiming at check battery health fast and accurately, as well as check the alternator working status. It’s a professional vehicle diagnostic tool for checking your battery system issues by using the graphing voltage monitoring tool, with its color screen and unique pattern design, life time free update service, the KONNWEI KW210 is a perfect battery testing tool for your job and the family.KONNWEI KW210 is mainly targeted to analyze the battery healthy status to calculate the actual cold cranking, capability of the battery and the aging extent, which provide reliable analysis evidence for the test and maintenance of the battery. KW600 notifies the users to replace battery in advance when the battery getting aged

KW210 Battery Tester Function:

Identify battery status Good or ReplaceCheck Battery Capacity – Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.Check Internal re​​sistance value (m)Display Life in percentage (%)Battery Cranking Test, load testBattery Charging Test, Ripple TestGraphing voltage real time monitoringTest results storage and reviewPrint test results and battery report on PCLife time upgrade fre

KONNWEI KW210 Languages

English, Russian, French, Spanish, German, Italian, Portuguese, Dutch

KW210 Battery Tester Function:

Identify battery status Good or ReplaceCheck Battery Capacity – Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.Check Internal re​​sistance value (m)Display Life in percentage (%)Battery Cranking Test, load testBattery Charging Test, Ripple TestGraphing voltage real time monitoringTest results storage and reviewPrint test results and battery report on PCLife time upgrade fre

KW210 Battery Tester Features

*Fast and smooth running speed with STM32 chip set hardware*Accurate test results, using high precision amplifier and calibrated by professional battery testing tool*Wide testing range cover from CCA 100- 2000 , 30- 220 AH, best in the market*Industry initiative graphical Battery Voltage real time monitoring*Unique battery results display in percentageTest all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, etc.*Polarity reverse connection protection, reverse connection will not damage the tester or affect the vehicle and battery.*Directly test the battery with loss of electricity, no need to full charge before testing.*Testing standards include currently the world’s majority of battery standards, CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.*Data Storage and upload to PC for printing*Life time upgrade free by one-click smart cloud update*Large color screen LCD display, pattern design

Application:

Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell. The major battery standards JIS, SAE, EN, DIN and IEC are supported.

KONNWEI KW210 Specification

Display: 2.4” Color TFT screenOperating Temperature : -20 to 70 ℃ (-4 to 158 ℉)Power: 9 to 16 V provided via vehicleSupported Battery type: CCA, ICE, EN, DIN, CA, BCI, MCA, SAE, GB, JISDevice Dimensions: 16.5cm x 6cm x 2.5cmWeight: 450 g

Life time Free update

Product pictures

Package list

1* KONNWEI KW210 Battery Tester Unit1* User’s Manual1* USB Cable for upgrade and print1* Safe packing box (plastic protection inside)
