1A brief introduction to the application and function of the product

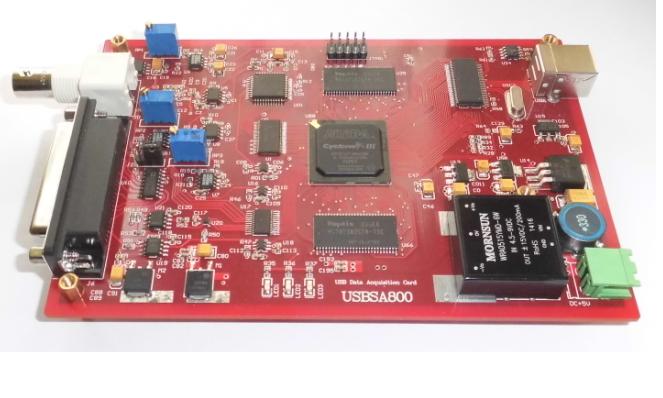

USBSA800It is a high-speed data acquisition card with USB interface. The card has multiple analog input channels (asynchronous). The card has many trigger functions, such as external triggering and internal triggering. The software interface is flexible and convenient, users can quickly configure the operating parameters of the card, and can collect and store data in real time. USBSA800 adopts large capacity SDRAM cache technology, large-scale FPGA technology and high-speed USB interface technology. It has the advantages of high accuracy of AD conversion, fast data transmission speed, good reliability and abundant software support. It can be widely used in laboratory or measurement and control system.
2:Board performance index
O ADCThe sampling frequency can be as high as possible10Mhz.
O ADCConversion precision14Position.
O input range-5V ~ +5V.
O Input channel:8An input channel (asynchronous,DType head interface) or single channel (BNCInterface).
O Sampling channel number: software can be selected.
O Analog input mode: single end analog input.
O Analog input impedance: 100M Omega.
O Trigger mode: software internal trigger and hardware external trigger (referred to as external trigger).
O External trigger type: analog level trigger and digital level trigger.
O Analog external trigger level threshold: software tunable, trigger level threshold controlled by DAC output.
O Digital input source (DTR) input range: Standard TTL level.
O Analog input source (ATR) input range: 0 ~ 10V.
O Nonlinear error:2.5 LSB (Max).
O USB2.0Interface, data transmission speed, plug and play, convenient and quick.
O High performance FPGA, EP3C16F484.
O It can calibrate the zero and fullness of the sampling channel.
O On board high speed memory SDRAM, capacity 64Mbytes.
O 3A LED output indicator.
O External power supply 5V/2A.
3Software running
utilizeUSBSA800passageway0collectionUSBSG800produce2KHzA sine wave signal.
Provide: a card, drive, routine, instruction manual. It is easy to develop two times.
