Friendship hints:
This product does not support the return of goods, not in good faith buyers do not take, please go around!

Product introduction:

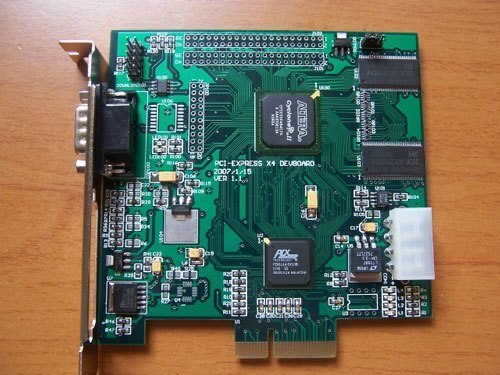

The development experiment board is adoptedPCI-E X4The interface, which provides the convenience for the user to develop autonomously100AvailableFPGA IOInput-output, the user can design and apply plug – in, such as external.A/DData acquisition, image data processing and other systems applications, without the need forPCI-EThere is too much understanding of the interface.PREFIX = O

PCI-EX4The interface chip is usedPLXCorporatePLX8114BB13BIFull supportPCI-E PREFIX = ST1 1.0AProtocol, external interface top support133MThe frequency of work,64The width of the bit bus to support the maximum1066Mbyte/Second burst peak transmission speed.

coreFPGAChip adoptionALTERAA new companyCYCLONE2FPGASeries,EP2C35F484C8,Capacity35000A logical macro unit, equivalent to a standard100Ten thousand logic gate circuit, speed-8The speed of the compiled system can be reached100MHz;

Free of chargeALTERA QUARTUS2 6Development tool CD-ROM;

Development board supportASDownloading mode













Performance parameters:



FPGAThe external bus interface supports 8, 16, 32, 64 bit data bus, which can directly connect with CPU, SDRAM, FIFO, SRAM, external interface chip and other devices.

FPGAExternal expansion 32/64M byte 64 bit SDRAM, the maximum working frequency 133M, 8 word burst mode;

FPGAExternal expansion of 100 users IO, support 1.8V, 2.5V, 3.3V external IO input and output standards;













Actual data transmission efficiency test:

The development board is tested on the following PC and runs normally through:

The performance test uses the cycle maximization transmission mode. EachDMA block size is 512K bytes, according to the average flow rate of 5 seconds, the number of DMA blocks transmitted within one second is calculated.

CPUMemory Motherboard chipset operating system DMARead (host memory toPCI-EX4 side) DMA write (PCI-EX4 end to host memory)

P4 2.8G 512M DDR2 945PL 800fsbWINXP 340MBytes / seconds450MBytes / seconds

Application scope:

Industrial data acquisitionA/d, d/aData transformation,data processing;

Multiple232/485extend,No need for external16C550,1C6Maximum availability12Serial port,

inside16C550TheFIFOaccessible1Kbyte;

Multiplex switch quantity input/Output extension,Extensible to64road;

PCIData buffer,data encryption;

Industrial control;

CD-ROM content:

FPGAInternal complete source code design and use manuals and instructions;

The driver’s complete source code design and use manuals and instructions;

PCI-EThe circuit design explains the document data.

Circuit schematic diagram andPCBLibrary files.
