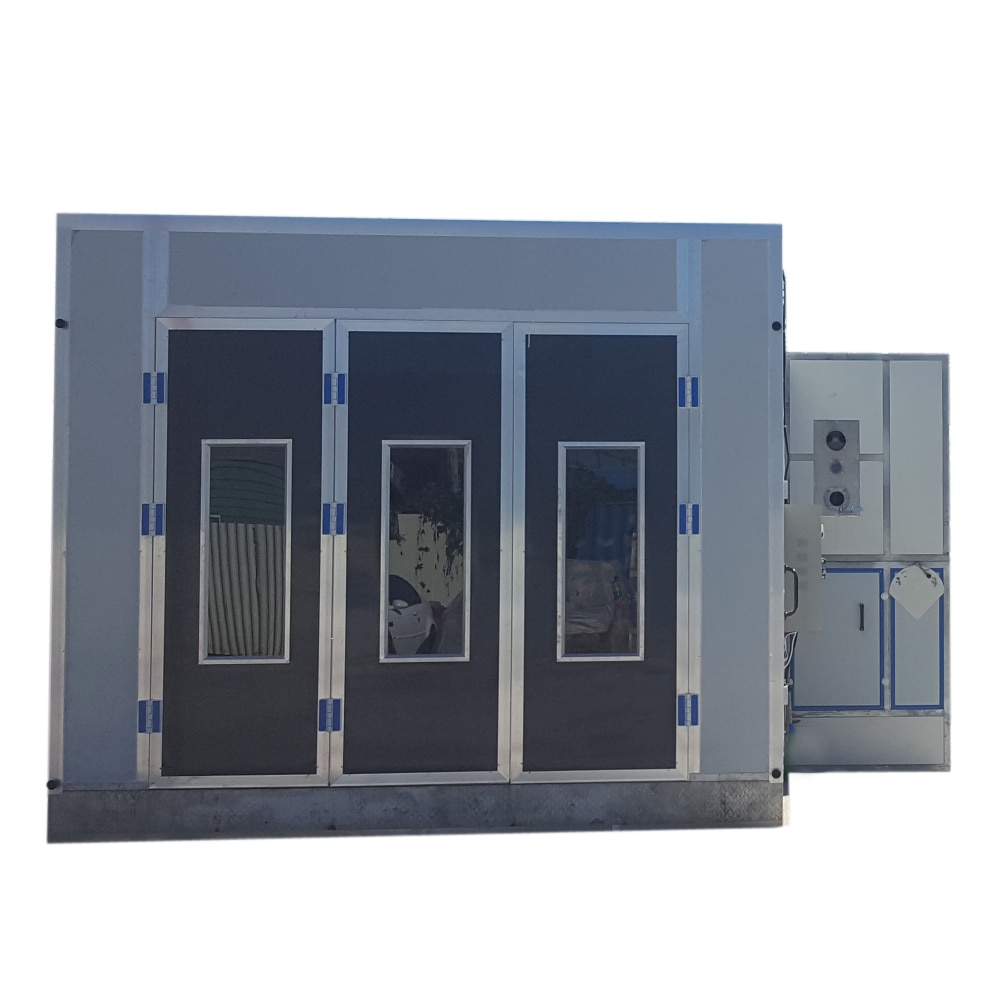

Product details:
Booth Outside: 7000*4000*3200mm
Booth Inside:6900*3900*2600mm
Dimension of Entrance Door:2500*2950mm
Personnel Door:750*1800mm
Noise≤75db
Working temperature≤60 degree
Rate of temperature increase:3-5min(20-60 degree)
Power consumption≤ 24kw/h
Walls and amp; Ceiling:
Panels 75 mm thick, with foam in the middle and color steel on both sides
Inlet Fan: air capacity 24000m⊃3;/h
Exhaust Fan: air capacity 12000m⊃3;/h
illuminance: 800 lux
Air filter efficiency: and gt;98%
Total power: 35.4kw
Heating method: Far infrared electric heating
