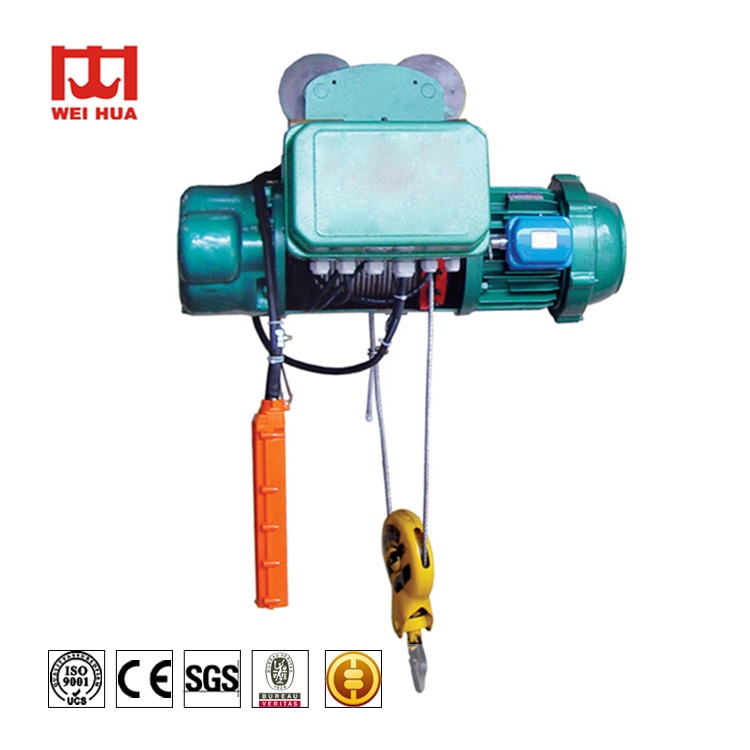

Engine motor electric wire rope hoist cherry picker shop crane 1 ton
Electric hoist widely applied to lifting heavy weight or being installed with sigle-girder electric crane or straight and curve T-shape beam;It is also used in the hoist double beam, gourd gantry crane or cantilever crane;It is easily operated in the factory, warehouse, railway and dock etc.
Main Features
In GeneralCompact structure, light weight, safe and reliable Wide used and interchangeable of components Lifting capacity strong, maintenance easy Operation easy, lifting stable
Lifting Motor Asynchronous Conical rotor motor with brake inside Large torque, effective braking, compact structure Stable operation, small size, light weight Safe usage and easy maintenance B or F class insulation, IP44, IP54 protection
Travelling Motor Asynchronous Conical rotor motor with brake inside Stable starting, effective braking Assorted with reducer B or F class insulation, fully covered IP44, IP54 protection IC0141 self-cooling
Lifting Reducer Three-level dead axle helical gear rotating body, long service life Gear and the axle made by alloy steel after heat treatment, high intensity Box and cover made from superior cast iron, fully covered Great speed ratio, high accuracy Compact structure, silent operation, high efficiency
Machinery oils Easy to assemble and disassemble
Rope Drum Welding rope drum, light dead weight Coil casing made from superior cast iron, high intensity Rope guide avoids intertwining of wire rope, ensures normal operation Extend the rope and drum’s lifetime No disturbance between rope socket Easily interchangeable, high quality
Steel Wire Rope GB/T 20118-2006(6*37+1) hoisting wire rope Anti-tensile, good flexibility Good resistance to impact, long lifetime
Hook 20 high quality carbon steel High security, triple static load Spring-loaded sturdy safety catch, ensuring slings not release safe and reliable
Fire stopper Adjustable mechanical memory structure, high sensitivity Weight limiting stopper preventing hook clashing the top Safe and durable, easy to install and debug Sensitive reaction, small and exquisite
Overload limiter Preset related data according working condition Show accurate weight value clearly Modular, low power design, jam proof Ensure the safe operation of electric hoist Long service life of appliance components
Electrical Part Reasonable layout of control cabinet, easy to repair Protection class IP55 Optional main power source Safe trolley conductor high conductivity, small pressure drop Light dead weight, easy to install Collector ensure continuing power supply
Control Mode Pendant and remote control Easy and safe control Smooth operation Waterproof Anti Fall
Detailed Images
Technical Parameters
| Type | CD1(MD1) | |||||||
| Capacity (t) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 |
| Lifting Height (m) | 3~9 | 6~12 | 6~30 | 6~30 | 6~30 | 6~30 | 9~30 | 9~30 |
| Lifting Speed (m/min) | 8(0.8/8) | 7(0.7/7) | 3.5(0.35/3.5) | |||||
| Traveling Speed (m/min) | 20 | 20/30 | 18 | |||||
| Rail | 10-20b | 16-28b | 20a-32c | 25a-50b | 32b-50b | 32b-63c | ||
| Work Duty | M4 | |||||||
| Power | 3PH AC 380V 50Hz | |||||||
WEIHUA crane meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.
Weihua Group was founded in 1988. After 32 years of development, it has developed products such as lifting machinery, port machinery, mining machinery, truck cranes, electric hoists, reducers, parking equipment, concrete prefabricated component production lines, special robots and other products. The main equipment manufacturing and the two major business segments, mainly construction contracting. The total assets are 7.076 billion yuan, the brand value is 7.19 billion yuan, there are more than 6,800 employees, and it covers an area of 3.65 million square meters.
Q. What’s the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
Q. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q. Can this type work in hazardous environment?
A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q. Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
Q. How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q. Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
