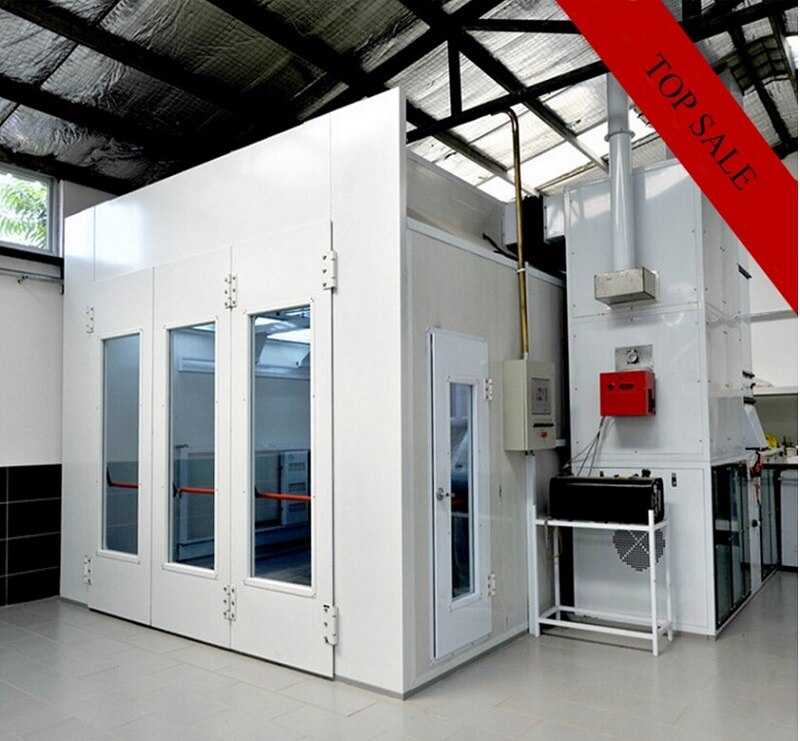

Product details:
50mm Rock wool board insulation flame retardant
Housing body outside diameter (mm) 7000L * 5450W * 3300H
Housing inside diameter size (mm) 6900L * 3900W * 2600H
Front door width (mm) 3000
Front door height (mm) 2500
Blower (units / kw) 7.5kw / station * 1
Ventilator (Taiwan / kw) 7.5kw / station * 1
Fan air volume (m3 / h) 33000
Room ventilation frequency (times / h) 290
Full indoor wind speed (m / s) 0.32
Maximum working temperature (degree) 80
Heating rate (degree / min20-60) 4 ~ 6
Number of radiators (branch) 24-28
quantum radiator on top 3 sets, left and right 4sets, back 2 sets
Radiation Power (kw) 24 ~ 28
Illuminance (lex) 800
Filtration efficiency ≥98%
Noise (dba) ≤75
Total power (kw) 41
