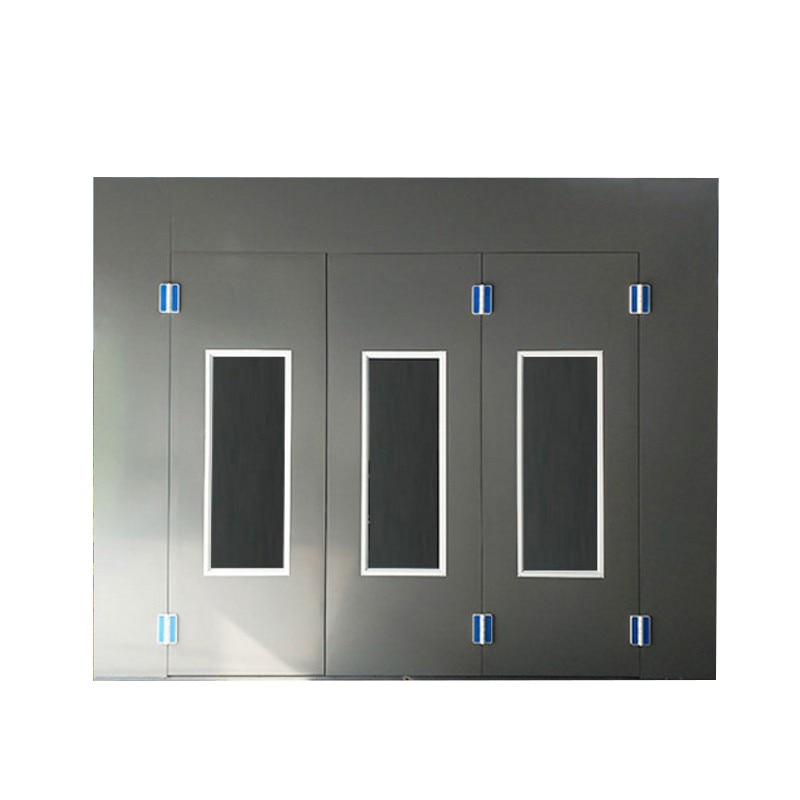

China Manufacturer Oil Heat Spray Booth Diesel Burner Spray Oven CE Approved

China Manufacturer Oil Heat Spray Booth Diesel Burner Spray Oven CE Approved

Product details:

NOTE: Product is heavy and volumn is big, So we can not send you by express, if you interest it, please tell us your city or your nearest port, we will send you by sea, train, or truck to your place, when goods arrived receipt place, Please help to clear the customs. We will provide full export documents, manual, installation instructions and so on

Product Description

The car paint booth is generally painted and baked. Therefore, the exact description of the paint booth should be “auto paint booth paint room”. The air control of the paint booth can save the space and is convenient to use. At the same time, the primer and top coat can be applied. Forced drying and speeding up the work cycle improve work efficiency and layer quality.

Running operation /Easy to use/Easy to maintain

The equipment is reliable in operation, simple in operation and convenient in maintenance. At the same time, it fully considers the safety of equipment operation, and adopts reliable control methods in temperature control and time to ensure the overall performance and development of the equipment.

Reinforced sheet

It adopts sturdy sheet shape, beautiful thermal insulation performance, good steel stability, good impact resistance and quick prefabrication.

Product Features

Provide a good coating environment. The paint booth provides a good coating environment when painting. At the same time, it treats the paint mist. The waste and paint baking paint and paint are carried out in the same room. The paint is the paint on the surface of the workpiece. Curing at a certain temperature

Good working environment

In order to keep the air in the paint booth clean, all kinds of paint booths are equipped with filter devices, such as filter cotton, to filter the dust entering the air in the paint booth, and the ventilation system of the paint booth will make the paint There is enough ventilation in the room to ensure the air in the paint booth is clean.



Booth Outside: 7000*4000*3150mm

Booth Inside:6900*3900*2600mm

Dimension of Entrance Door:2500*2950mm

Personnel Door:750*1800mm

Noise≤75db

Working temperature≤60 degree

Rate of temperature increase:3-5min(20-60 degree)

Power consumption≤ 24kw/h

Walls and amp; Ceiling:
Panels 75 mm thick, with foam in the middle and color steel on both sides

Inlet Fan: air capacity 24000m⊃3;/h

Exhaust Fan: air capacity 12000m⊃3;/h

illuminance: 800 lux

Air filter efficiency: and gt;98%

Total power: 35.4kw

Heating method: Far infrared oil heating


China Manufacturer Oil Heat Spray Booth Diesel Burner Spray Oven CE Approved
