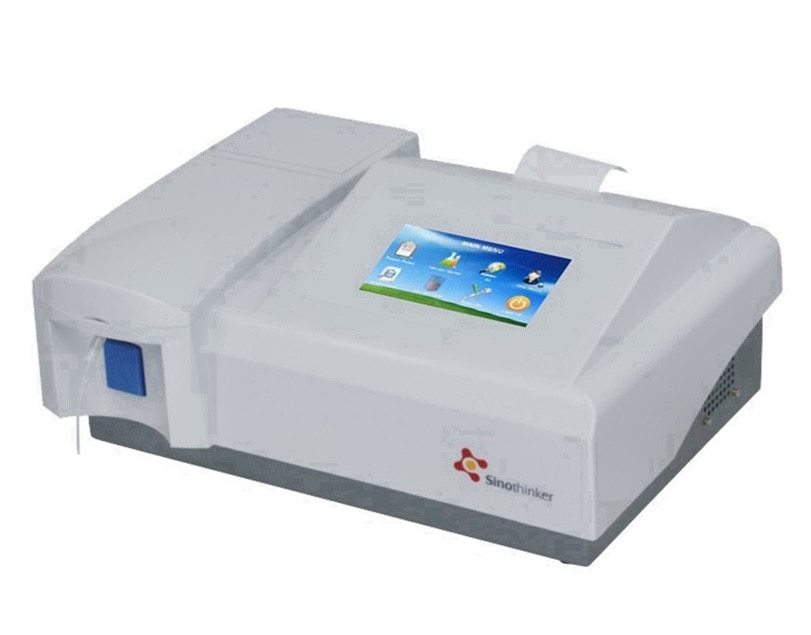

Semi-auto Chemistry Analyzer SK3001
Semi-auto Chemistry Analyzer SK3002B
Semi-auto Chemistry Analyzer SK3002B1
SK3001 Feature
*5 inch Color LCD,Touch screen
*Abs range:0~4.500Abs;Real time curve showing
*Test method:Kinetic,End point,Two point,Absorbance
*5 wavelengths filter:340,405,505,546,630nm
*80 test item pre-programmed
*Memory for 10,000 sample results
*Light source hibernate function making lamp life longer
*RS232 interface,PC connecting
SK3002B Feature

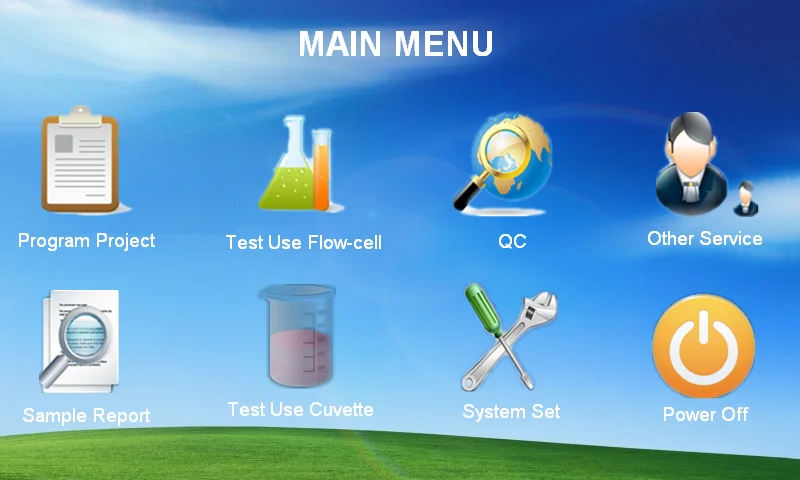

*7 inch Color LCD,Touch screen
*7 wavelength,80 test items pre-programmed
*Memory for 10,000 sample results
*Light source hibernate function making lamp life longer
*RS232 interface,PC connecting
*Test method:Kinetic,End point,Two point,Absorbance
*Abs range:0～4.500Abs;Real time curve showing
SK3002B1 Feature

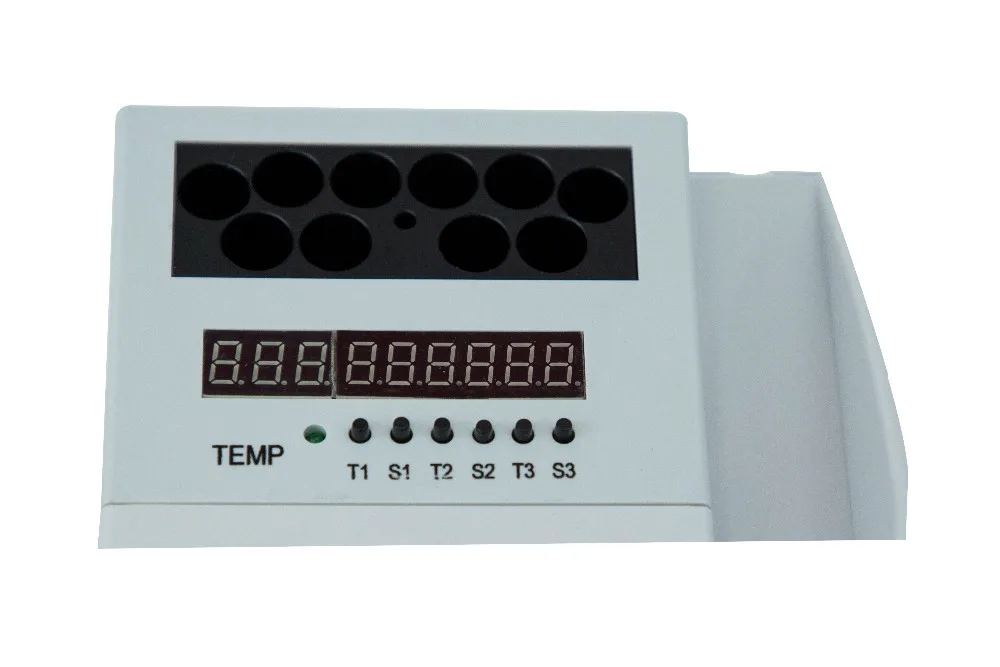

*10 incubators(37±0.3℃);3 timers
*Flow cell and Cuvette test mode compatible
*7 inch Color LCD,Touch screen
*7 wavelength,80 test items pre-programmed
*Memory for 10,000 sample results
*Light source hibernate function making lamp life longer
*RS232 interface,PC connecting
*Test method:Kinetic,End point,Two point,Absorbance
*Abs range:0～4.500Abs;Real time curve showing
Usual test list
*Liver function:
ALT, AST, ALP, T-BIL, D-BIL, TP, ALB, TTT, CHE, Nh3
*Renal function:
BUN, CRE, UA, URE, CO2-CP, Y-GT
*Lipids:
T-CHO, TG, HDL-C, LDL-C
*Cardiac function:
CK, CK-MB, LDH
*Immune proteins:
IGA, IGG, IGM, C3
*Others:
GLU, HGB, AMS

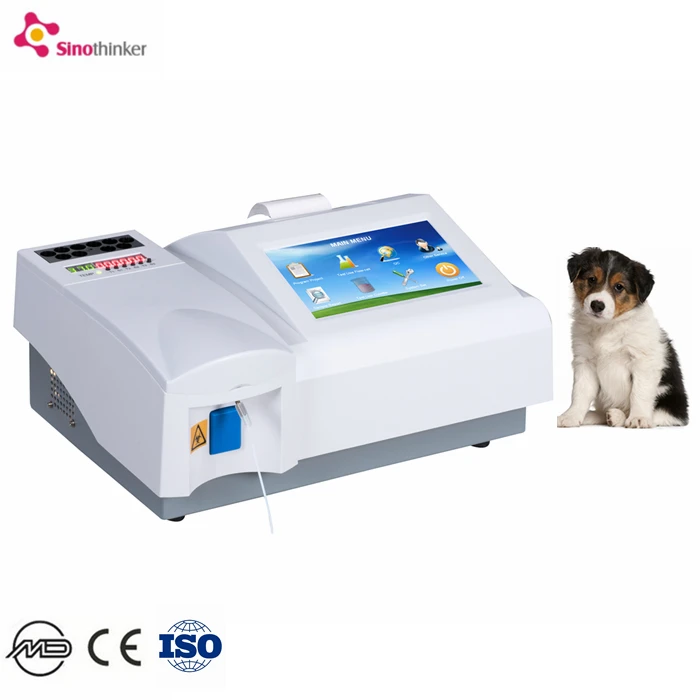

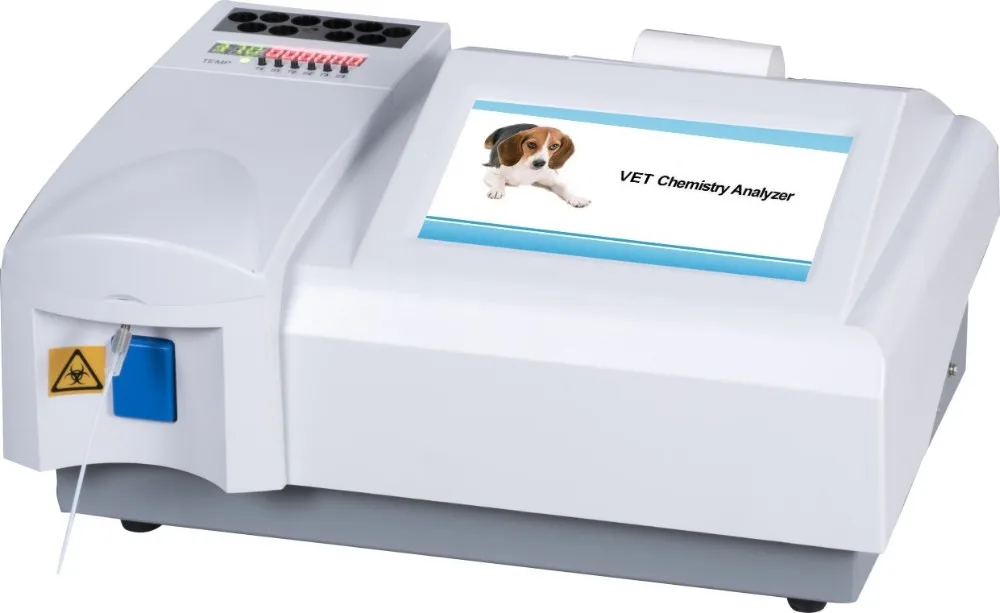

Semi-auto Chemistry Analyzer SK3002B1 Vet veterinary
|
Test mode
|
Kinetic,End point,Two point,Absorbance
|
||||
|
Wavelength
|

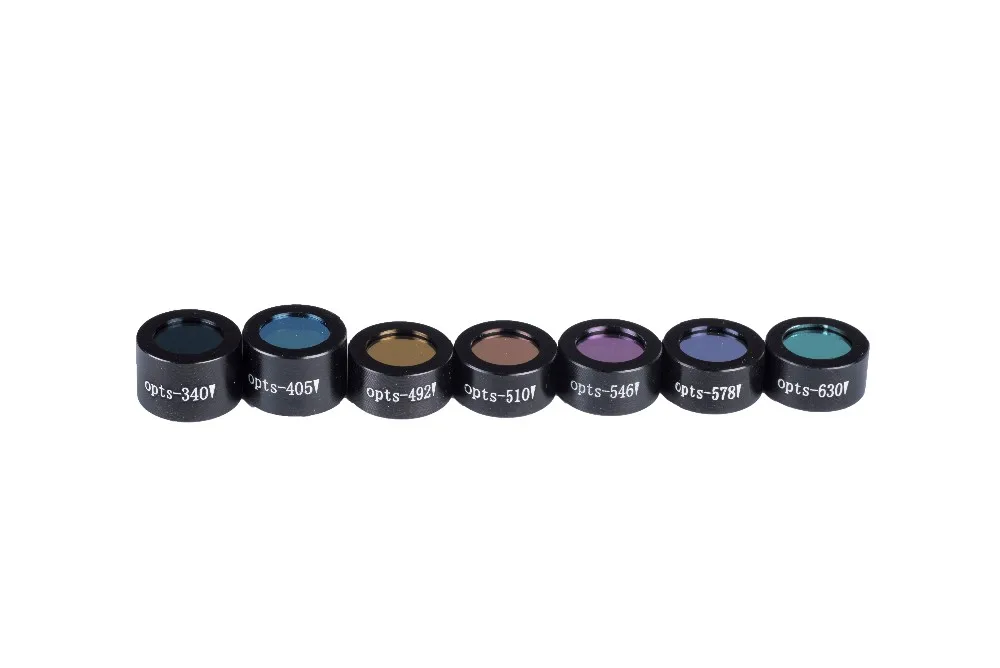

7 standard filters,340,405,492,510,546,578,630nm,1 free position
|
||||
|
Wavelength precision
|
±2nm,width≤10nm
|
||||
|
Absorbance range
|
0~4.500Abs
|
||||
|
Incubators
|
10 Incubators,37±0.3℃
|
||||
|
3 timers,precision
|
±0.1S
|
||||
|
Absorbance precision
|
outside 0.0001Abs,inside 0.00001Abs
|
||||
|
Carry over
|
﹤1%
|
||||
|
Repeatability CV
|
and lt;1%
|
||||
|
Incubator
|
37℃,30℃,25℃,and others,Precision:±0.1℃
|
||||
|
Sample volume
|
0~3000uL(500uL recommend)
|
||||
|
Data Storage
|
10000
|
||||
|
Quality control curve
|
SD,CV%,L﹣J quality control curve for every test item
|
||||
|
Flow cell
|
32ul quartz glass,10nm
|
||||
|
Lamp
|
Philips 6V 10W Halogen Lamp with long life
|
||||
|
Screen
|
7 inch color LCD
|
||||
|
CPU
|
ARM series high speed micro CPU
|
||||
|
Printer
|
Internal thermal sensitive printer
|
||||
|
Interface
|
RS-232
|
||||
|
Work Environment
|
Temperature 0℃~40℃,Humidity:80%
|
||||
|

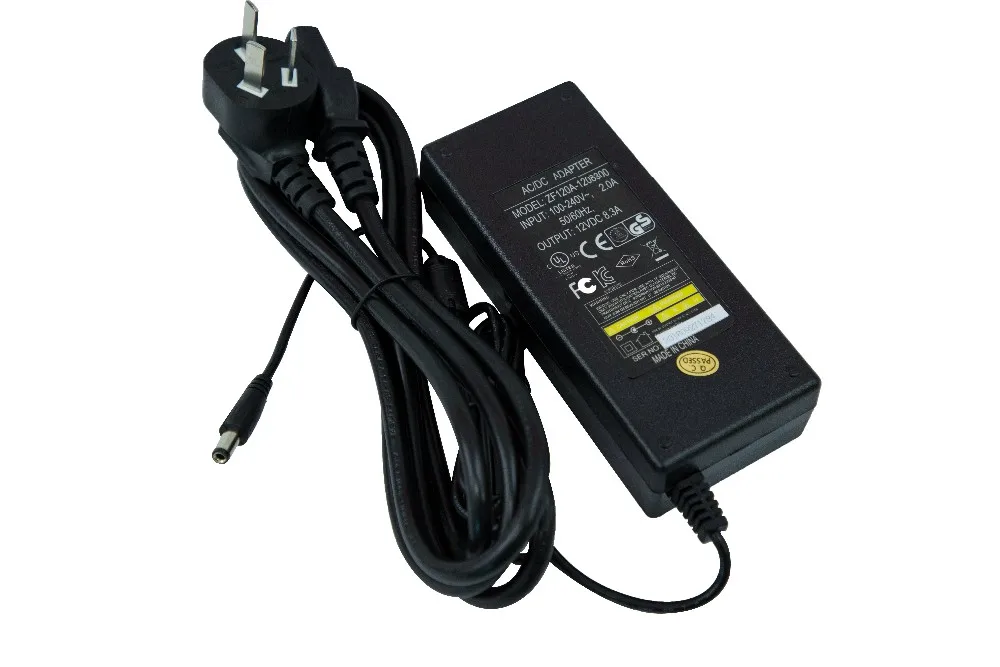

Power supply
|
100~240VAC,50-60Hz,100VA
|
||||
|
Dimension
|
340(L)*270(W)*160(H)
|
||||
|
Weight
|
5kg
|
||||
|
NO,
|
Model
|
net
weight
|
gross waight
|
machine
dimension(cm)
|
packing
dimension(cm)
|
shippment
volume
|
|
1
|
SK3002B
|
5KG
|
7.5KG
|
36*27*18(H)
|
50*46*29
|
15KG
|
|
2
|
SK3002B1
|
5KG
|
7.5KG
|
36*27*18(H)
|
50*46*29
|
15KG
|
|
3
|
SK3002B1 VET
|
5KG
|
7.5KG
|
36*27*18(H)
|
50*46*29
|
15KG
|
FAQ:
Q:What is the difference between SK3002B and SK3002B1?
A:10 incubators,3 timers.
Q:Biochemical instrument light source lamp power and life?
A:6V,10W,More than 2000 hours.
Q:Does it test human or vet ?
A:Human (also have vet model )
Q:How about after-sale serive ?
A:We will send you any parts within 15 months warranty ,and supply you technology support for long time ,solve problem as soon as possible .
Q:What’s the minimum order quantity (MOQ)?
A:For most of our medical products, even order for only one unit is warmly welcomed.
Q: Can you do OEM/ private label?
A: Of course we can do OEM/private label for you.
Q: What’s your delivery time?
A: Generally it is 3 days if the goods are in stock.
or it is 7 days if the goods are not in stock, it is according to quantity.
Q: How to ship the order?
A: Please inform us your instruction, by sea, by air or by express, any way is ok for us. We have very professionalforwarder to provide the best shipping cost, service and guarantee.
Q: What is your terms of payment ?
A: We accept T/T ,LC,Western Union ,Escrow ,Paypal and more.Please suggest your preferred payment method.
