NOTE: Product is heavy and volumn is big, So we can not send you by express, if you interest it, please tell us your city or your nearest port, we will send you by sea, train, or truck to your place, when goods arrived receipt place, Please help to clear the customs. We will provide full export documents, manual, installation instructions and video.

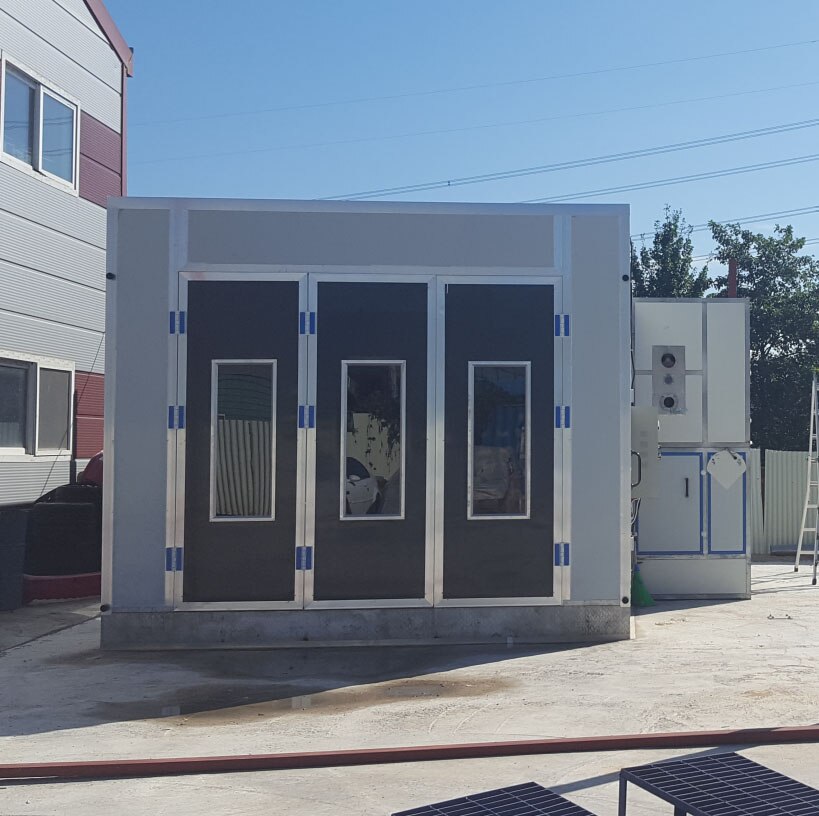

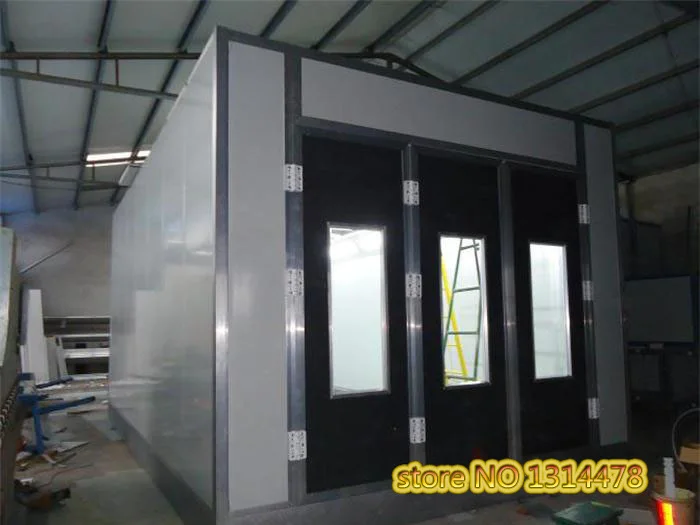

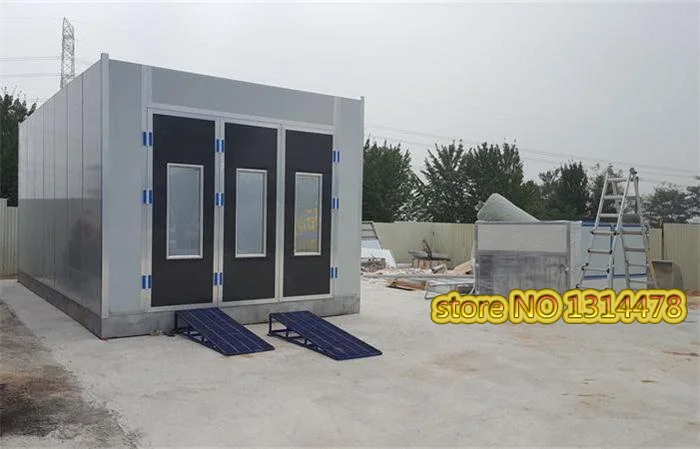

Booth Outside: 7000*5350*3300mm
Booth Inside:6900*3900*2600mm
Dimension of Entrance Door:2500*3000mm
Personnel Door:650*1900mm
Noise≤75db
Working temperature≤80 degree
Rate of temperature increase:3-5min(20-60 degree)
Power consumption≤ 24kw/h
Walls and amp; Ceiling:

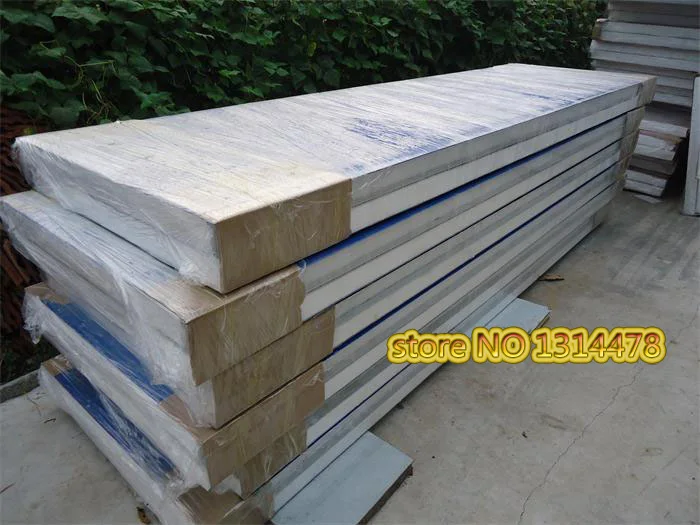

EPS antiflaming Panels 50 mm thick, with foam in the middle and color steel on both sides
Inlet Fan: YDW 4kw*2 air capacity 24000m³/h
Exhaust Fan: YDW 7.5kw
Heating system:

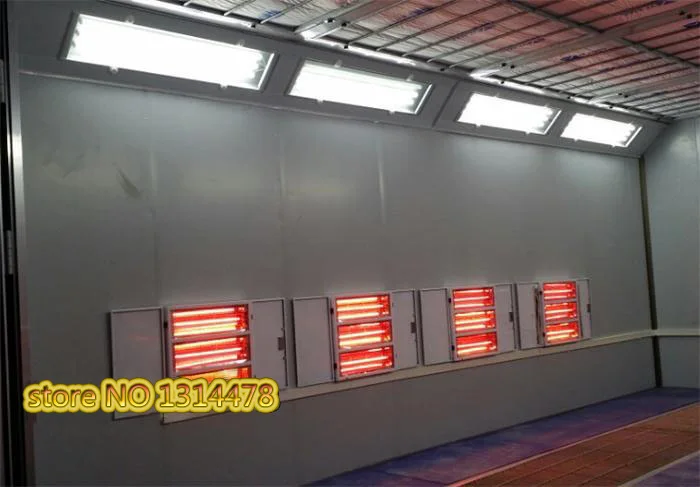

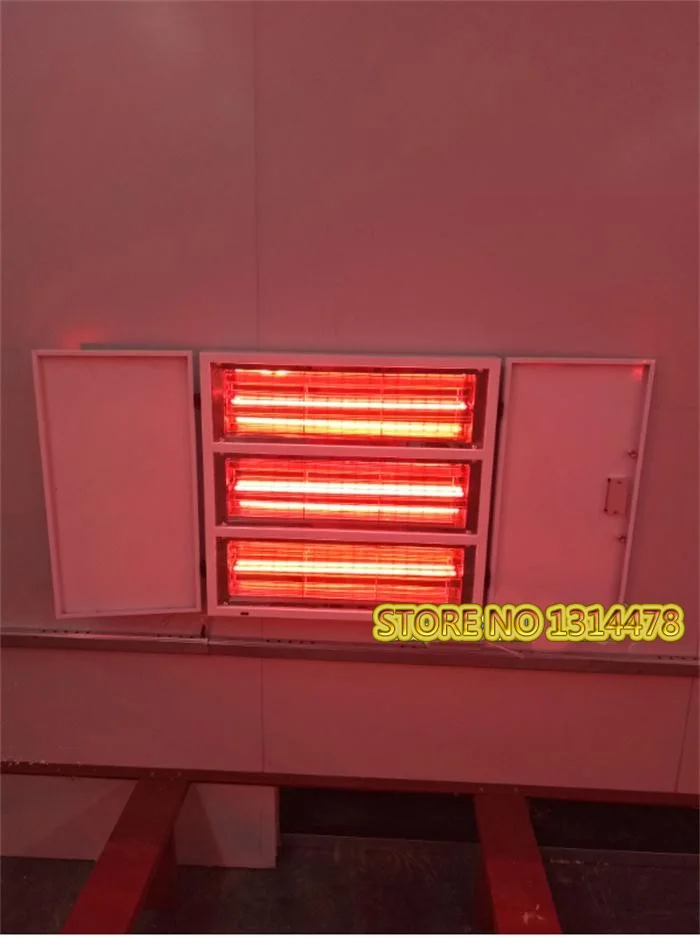

10 sets 3KW infrared baking lamps-max baking temperature is 80 degree
G10 Riello burner
Light system:
Ceiling lights: 8units*3 pieces=24pieces *16w
side lights: 6units*2pieces=12pieces*16w
Air filter efficiency: and gt;98%
Total power: 49kw
Voltage: 380v/220v 3phase 50hz/60hz
