After purchasing IM608, we will provide the use information of the machine for free. You don’t have to worry about how to use it.

Multi-Language Interface:

English, Spanish, French, German, Polish, Italian, Japanese, Korean, Dutch, Portuguese, Swedish, Russia

MaxiIM IM608：

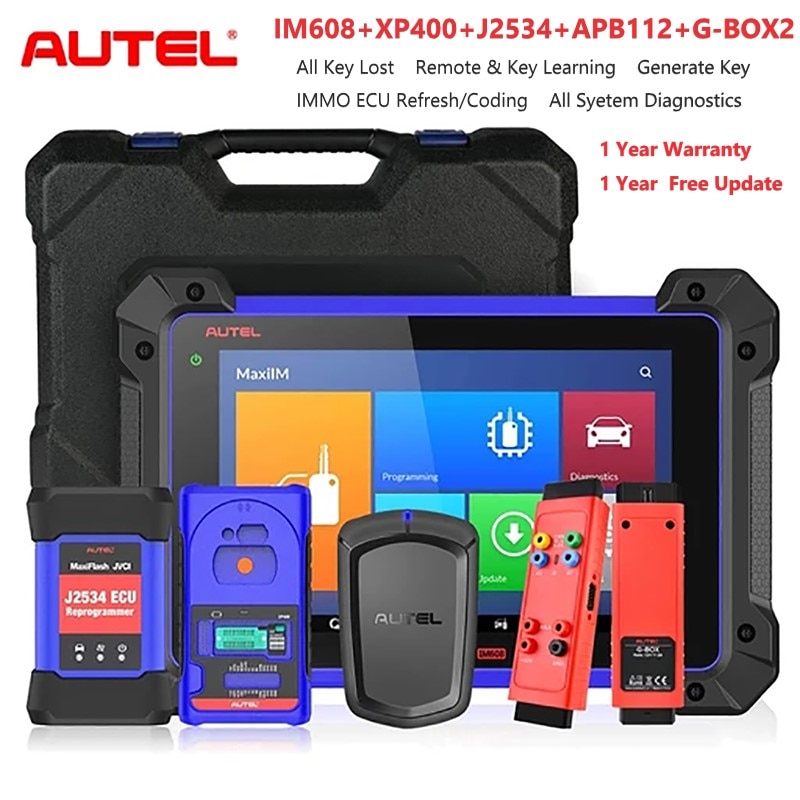

MaxiIM IM608 is the most advanced and the unique all in one key programming and diagnostic tool that combines advanced key programming, all systems diagnostics, and advanced services in one Android based 10.1-inch touchscreen tablet. It is equipped with XP400 key programmer and MaxiFlash ECU programmer to provide complete coverage of IMMO and programming functions. Together with the ability to quickly diagnose all modules of the majority of the makes and models on the market, IM608 provides you with all special functions. It is the unprecedented key programming and diagnostic tool that you ever wanted.

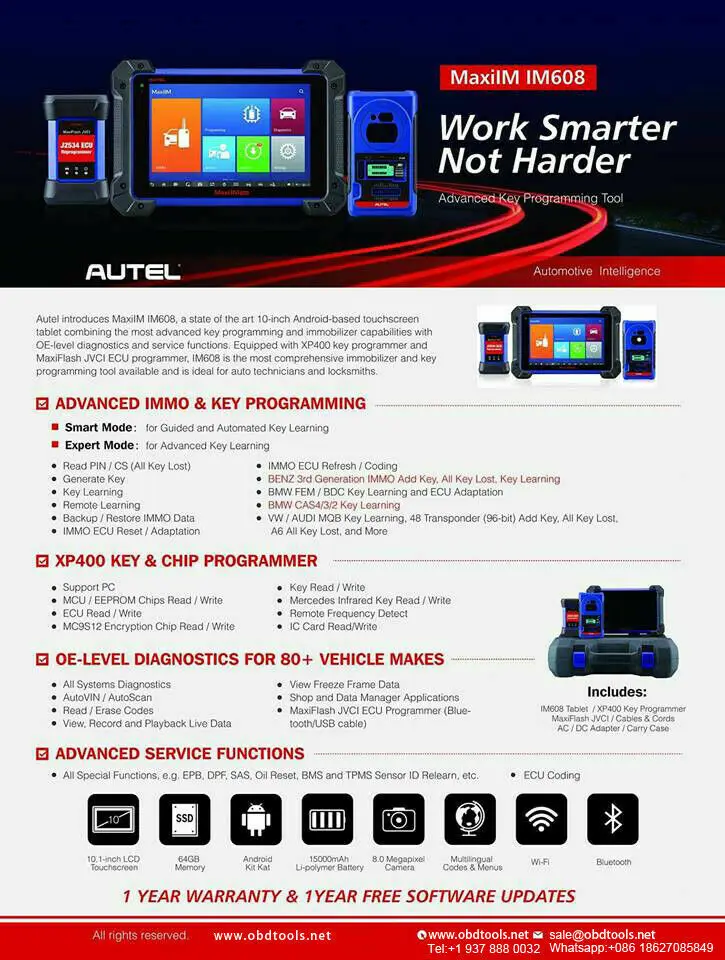

Autel MaxiIM IM608 Features :

-Extraordinarily powerful Cortex A7+A15 six-core processor-10.1-inch LED capacitive touch screen with 1920×1200 resolution-Internal reliable 64GB On-board Memory for better performance-Built-in 8-megapixel rear camera with autofocus and flashlight-802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources-Open source Android Operating System for fast boot-up and multitasking -Powerful combination of advanced key programming/all systems diagnostics/advanced maintenance services-Professional key programming equipped with XP400 key programmer and MaxiFlash ECU programmer for complete Immo coverage -Smart mode for guided and automated key learning-Expert mode for advanced key learning-Read PIN/CS (all key lost), generate key, key learning, remote learning-IMMO ECU reset/adaptation, refresh/coding -Read/write transponder data, ECU/MCU/EEPROM data (eg. 9S12 encryption chip), IC card, detect remote frequency -Powerful OE level diagnostics for more than 80 US, Asian and European makes and models -Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc. -All special functions, EPB, DPF, SAS, Oil reset, BMS, TPMS sensor ID relearn, etc.

DIAGNOSTIC FUNCTION OF MORE THAN 80 VEHICLES IN ADVANCED LEVEL

·All System Diagnostics·Auto Search / VIN Finding·Reading / Deleting Error Code·Viewing the Live Data Stream·View Records of Failure History·Store and Data Management Applications·MaxiFlash JVCI ECU Programmer (Bluetooth / USB Cable)

Specifications：

Operating System : AndroidTM 4.4.2, KitKatProcessor : Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)Memory : 2GB RAM and amp; 64GB On-board MemoryDisplay : 10.1-inch LED capacitive touch screen with 1920×1200 resolutionConnectivity : -Wi-Fi (802.11 a/b/g/n/ac)-USB: 2.0-BT v.2.1 + EDR-SD Card (Support up to 32GB)-HDMICamera (rear) : 8.0 Megapixel, AF with FlashlightSensors : Gravity Accelerometer, Ambient Light Sensor (ALS)Audio Input/Output : -Microphone-Dual Speakers-3-Band 3.5 mm stereo/standard headset jackPower and Battery : -15000 mAh 3.8 V lithium-polymer battery-Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°CInput Voltage : 12 V (9-24 V)Power Consumption : 6.5 WOperating Temp. : 0 to 50°C (32 to 122°F)Storage Temp. : -20 to 60°C (-4 to 140°F)Dimensions (W x H x D) : 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)Weight : -NW: 1.42 kg (3.13 lb.) -GW: 8.655 kg (19.08 lb.)Protocols : ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

Pay Attention :

If you want to change the language, please tell our customer service about the S/N code on the back of the machine. We will contact the engineer to authorize the language of your machine and update it as shown below. Thank you ! ! !

FAQ

Q: WHO WE ARE?

A: FWe have been engaged for many years in the line of automobile diagnosing instruments and our corporation is established for the purpose of trustworthiness.

Q: WHAT WE HAVE?

A: We have office in Shenzhen,China and 2 warehouses which are located in HongKong and US.We assure you not only good service but also to be ship as soon as possible.

Q: What if I have questions about the product?

A: If you are not satisfied with your purchase in any way please give us an opportunity to try and make it right before leaving feedback.We will answer your questions within 1 working days.

Autel MaxiIM IM608 Packling List:

1x Autel MaxiIM IM608 Main Unit1x APC101 USB Cable1x APA101 Signal Cable1x MaxiFlash JVCI1x APB101+APD101(EEPROM Adaptor+EEPROM Adapter Shell)1x APA103(EEPROM Clamp)1x XP4001x APB102 MB IR Cable1x APA104 ECU Clamp1x Main Cable1x APB104(MCU_FQFP64)1x APA105(MCU Clamp)1x USB Cable (2m)1x APB105 MCU_FQFP801x APA106(MC9S12 Clamp)1x Mini USB Cable1x APB106(MCU_FQFP144)1x APA107(Connect Cable)1x AC/DC 12V Adapter1x APB107(MCU_FQFP144)1x Quick Reference Guide2x Light Fuse 6*30mm1x APB108(MCU_FQFP176)1x Packing List1x Cigarette Lighter1x APA002(EEPROM Socket)1x Carrying Case 634*170*404mm1x AAC001

Autel APB112 Smart Key Simulate 46/4D Emulator Car Chip Decoding for IM608 IM508

Product Description:

Autel APB112 smart key simulator is used to collect the data sent from the ignition coil, aiming to identify the ignition coil troubles and decode the data of the vehicle key chip.It can also simulate the vehicle key chip.

AUTEL APB112 Function List:

1. Smart key simulator2. Compatible with IM608, IM508, and MX808IM3. Compact but would need to be used with the XP400 4. Cannot be used with the XP2005. 46, 4D data collection6. 46 smart key password calculation7. 46 chip simulation8. For T0yota 4D (94/ D4, 98) smart key simulation9.For T0yota H (88/ A8, A9, 39) smart key simulation10. Collects data from the ignition coil11. Identify ignition coil troubles12. Decode vehicle key chip data13. Simulate vehicle key chip (ex – 4D chip)14. Must be used with an Autel diagnostic tool15. For T0yota/ Lexus smart key all key lost16. Chip decoding (Hyundai 46)

AUTEL APB112 Smart Key Simulator Overviews:

1. Status Indicator – Indicates The Current Status1) Lights Solid Blue – the power supply is working properly and in default state;2) Falshes Green – the data interaction status;3) Flashes Red – the status of upgrading;4) Lights Solid Red – the boot status2. USB Interface – Provides power and data communication

How to Use Autel APB112?

1. Connect the APB112 Smart Key Simulator to Autel Diagnostic Device using the supplied USB cable.2. After connection, the status indicator lights solid blue,indicating that the APB112 Smart Key Simulator is working properly and then automatically communicates with the Diagnostic Device.3. The APB112 Smart Key Simulator application is automatically upgraded on Autel Diagnostic Device according to the selected vehicle system function.4. Place the Smart Key Simulator close to the ignition coil for data collection, which is used for decoding the chip.After decoding, the original car chip data can becopied.5. The emulator key chip can generate various types ofkey chips with subsequent upgrades according to requirements.

Notes:

1. Not work alone, but works together with any of the Autel Diagnostic Device i.e MaxiIM IM608, Autel MaxiIM IM508, and MX808IM2. Compact but would need to be used with the XP400, not with XP200.3. Do Not disconnect the USB Cable when use

AUTEL APB112 Package List:

1pc x APB112 Smart Key Simulator1pc x USB cable1pc x Quick Reference Guide

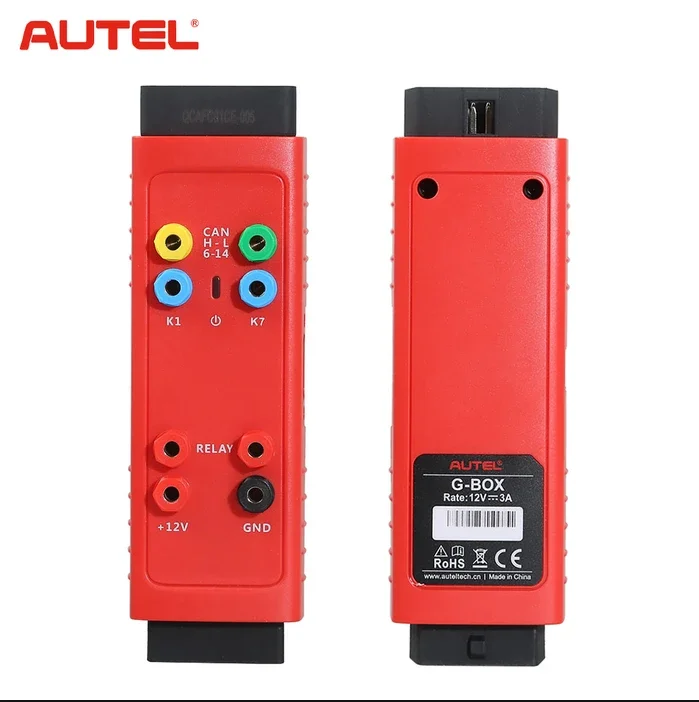

Autel G-BOX2 Programming Tool fit for Benz All Key Lost Work with MaxiIM IM608

Autel G-Box Main Features:

1.fit For Mercedes Benz All Keys Lost, Faster Password Calculation2. Used with IM6083. Used for Faster fit for Mercedes ECU data and EIS password calculation4. fit For Mercedes DAS3 can EIS / EZS all keys lost5. Reduce time reading W204 ECU data and amp; W207 EIS by over 85%6. No need to remove and reinsert the key for W221 and amp; W164 after 2009 models7.fit For BMW DME / DDE ISN reading and writing in boot mode8. G-Box is compatible with both the Autel MaxiIM IM 608 and IM508 with XP400, also compatible with Auro IM600 and Auro IM100 with XP400

Autel G-BOX2 Description:

The G-BOX2 realizes fast mode on vehicle and bench when all keys for Mercedes-Benz vehicles using ths DAS3 EIS/EZS are lost. The use of the G-BOX2 reduces the time needed and eliminates the process of insertion and removal. The G-BOX2 can read and access most engines manufactured by Bosch including EDS/ MEx17 series engines used in for BMW and for Volks wagen Vehicles. This capability supports the ability to perform adaptions when all keys are lost and engine is replaced. The G-BOX2 is compatible with the Autel’s advanced diagnostic tablets support IMMO and key programming functions.

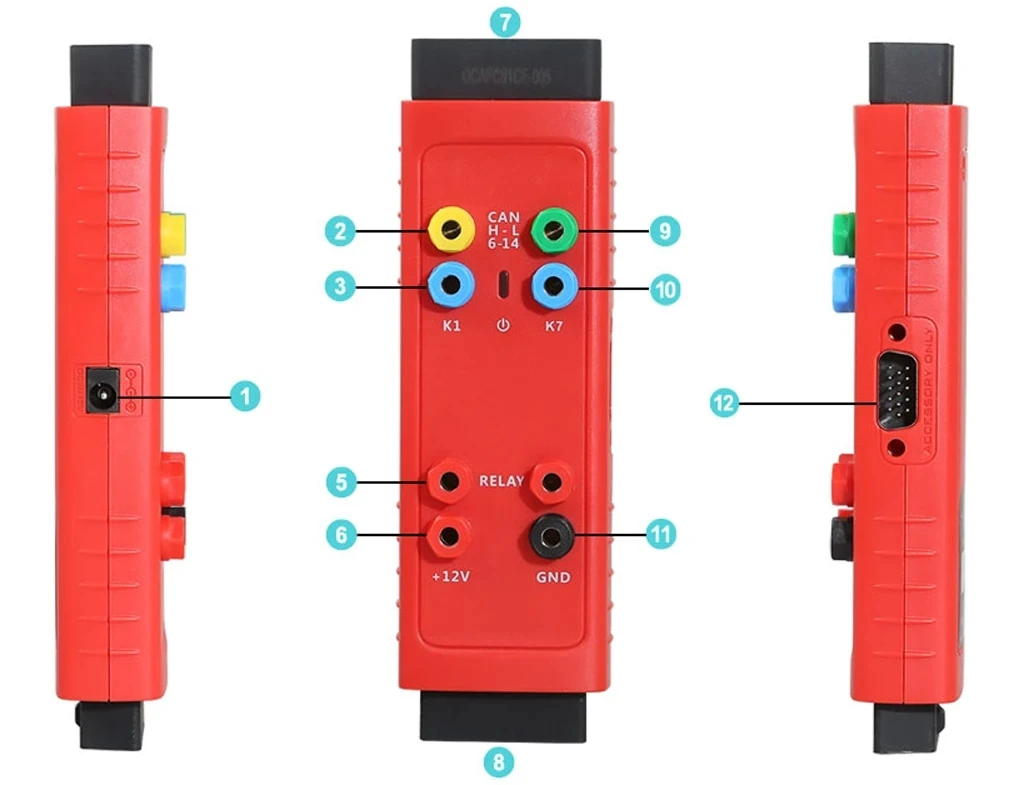

Autel G-BOX2 Product Display:

1.DC Port – Provides +12V DC power supply.2. CAN-H Port – Universal CAN bus interface, connects with OBDII Pin63. K1 Port – Universal K-Line interface, connects with OBDII Pin14. Status Indicator – Indicates the current operating status 5. Relay Ports – Connect with dedicated relay cables6. +12V Power Port – Universal power input/ output port7. OBDII Connector – Connects to the vehicle’s OBDII directly or via a dedicated extension cable 8. OBDII Female Connector – Connects to the main cable of Autel diagnostic tablet9. CAN-L Port – Universal CAN Bus interface, connects with OBDII Pin1410. K7 Port – Universal K-Line interface, connects with OBDII Pin711. GND Port – Universal power input/ output port12. DB15 Port – Used with dedicated DB15 cable for reading and writing multiple types of ECUs

Why Buy Autel G-BOX — Small is Smart!

1. fit for MERCEDES-BENZ ALL KEYS LOST, FASTER PASSWORD CALCULATION.8X TIMES FASTER PASSWORD CALCULATION FOR EIS W172, W204, W207;4X TIMES FASTER PASSWORD CALCULATION FOR EIS W209, W211, ETC.2. fit for MERCEDES-BENZALL KEYS LOST, NO MORE REPEATED INSERTIONS AND REMOVALS OF IR SIMULATORW164/-2008, W251/-2008, W164/2009-, W169, W251/2009, W216, W221(partial), W202(K)/W208(K)/W210(K), W203(K)/W463(K)3. fit for MERCEDES-BENZ ALL KEYS LOST, CAN BE PROGRAMMED ON THE VEHICLE WITHOUT REMOVING THE EISEXCEPT FOR EIS W164 / -2008, W251 / -2008, W221, W202 (K) / W208(K) /W210(K), AND W203 (K) / W463 (K), ALL OTHER EISS CAN BE PROGRAMMED ON THE VEHICLE DIRECTLY.4. fit for MERCEDES-BENZ ALL KEYS LOST, BMW DME / DDE ISN READING AND WRITING IN BOOT MODE

How to Use Autel G-BOX2 Work?

1. OBDII Operation when all keys for Mercedes-Benz vehicle are lost Use OBDII access on for Mercedes=Benz vehicles manufactured after 2009 with W204, W207, W216 and W164 EISs

1. How to do via OBD When All Keys fit for Mercedes-Benz Vehicle Are Lost

This method is suitable for Mercedes-Benz W204, W207, W216 and W164 EISs after the year 2009.23 CATEGORIES OF BOSCH ENGINE, INCLUDING MEVD/EDC17. 6 CATEGORIES OF SIMENS/CONTINENTAL ENGINE, INCLUDING MSD/MSV ENGINE.

How to do on Bench When All Keys for Mercedes-Benz Vehicle are Lost

This Method is suitable for Mercedes-Benz EISs that are already supported by Autel Diagnostic Tablet

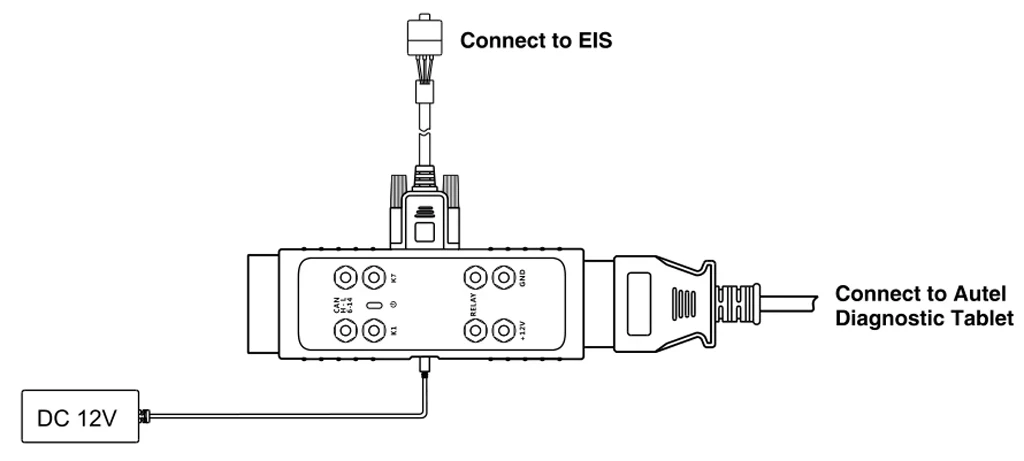

How to Connect Autel G-BOX2 Step by Step:

1. Plug the G-Box to for Mercedes-Benz EIS using the packed DB15 Cable2. Plug to the DC port of G-Box using a power adapter (DV 12V)3. Plug the G-Box to the Autel Diagnostic Tablet (MaxiIM IM608, IM508)

Autel G-BOX2 Package Included:

1pc x Autel G-BOX21pc x DB15 Cable1pc x K-Line Cable1pc x Fuse Cable2pcs x Fuse (5A)2pcs x Clamp Cable1pc x OBDII Extension Cable1pc x Quick Reference Guide
