Note1：

After purchasing IM608, we will provide the use information of the machine for free. You don’t have to worry about how to use it.

Note 2：

Multilingual：English, Spanish, French, German,Polish, Italian, Japanese, Korean,Dutch, Portuguese,Swedish, Russia

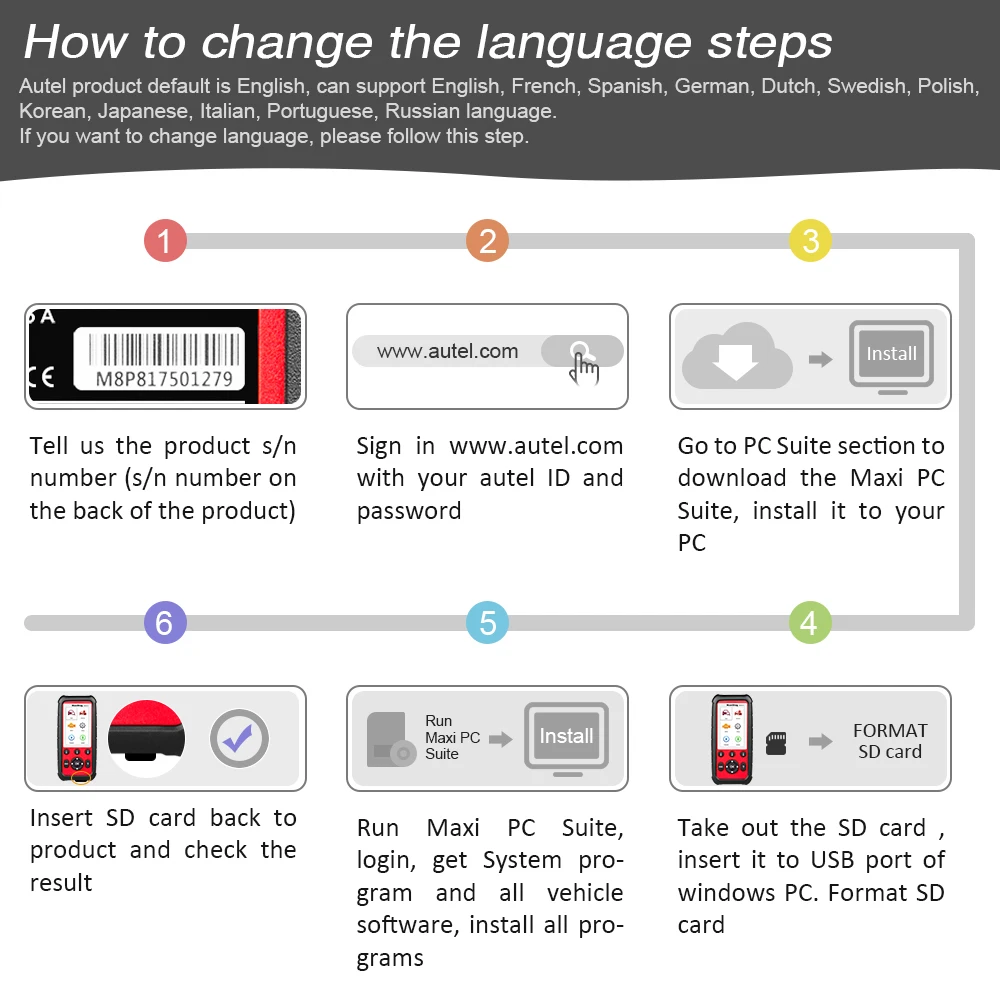

Pay Attention :

If you want to change the language, please tell our customer service about the S/N code on the back of the machine. We will contact the engineer to authorize the language of your machine and update it as shown below. Thank you ! ! !

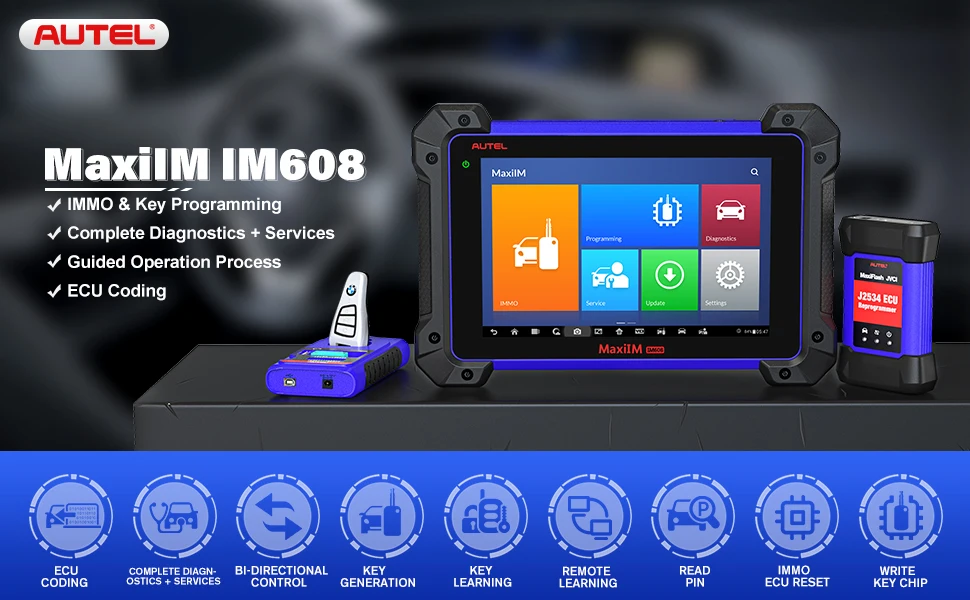

Autel MaxiIM IM608：

MaxiIM IM608 is the most advanced and the unique all in one key programming and diagnostic tool that combines advanced key programming, all systems diagnostics, and advanced services in one Android based 10.1-inch touchscreen tablet. It is equipped with XP400 key programmer and MaxiFlash ECU programmer to provide complete coverage of IMMO and programming functions. Together with the ability to quickly diagnose all modules of the majority of the makes and models on the market, IM608 provides you with all special functions. It is the unprecedented key programming and diagnostic tool that you ever wanted.

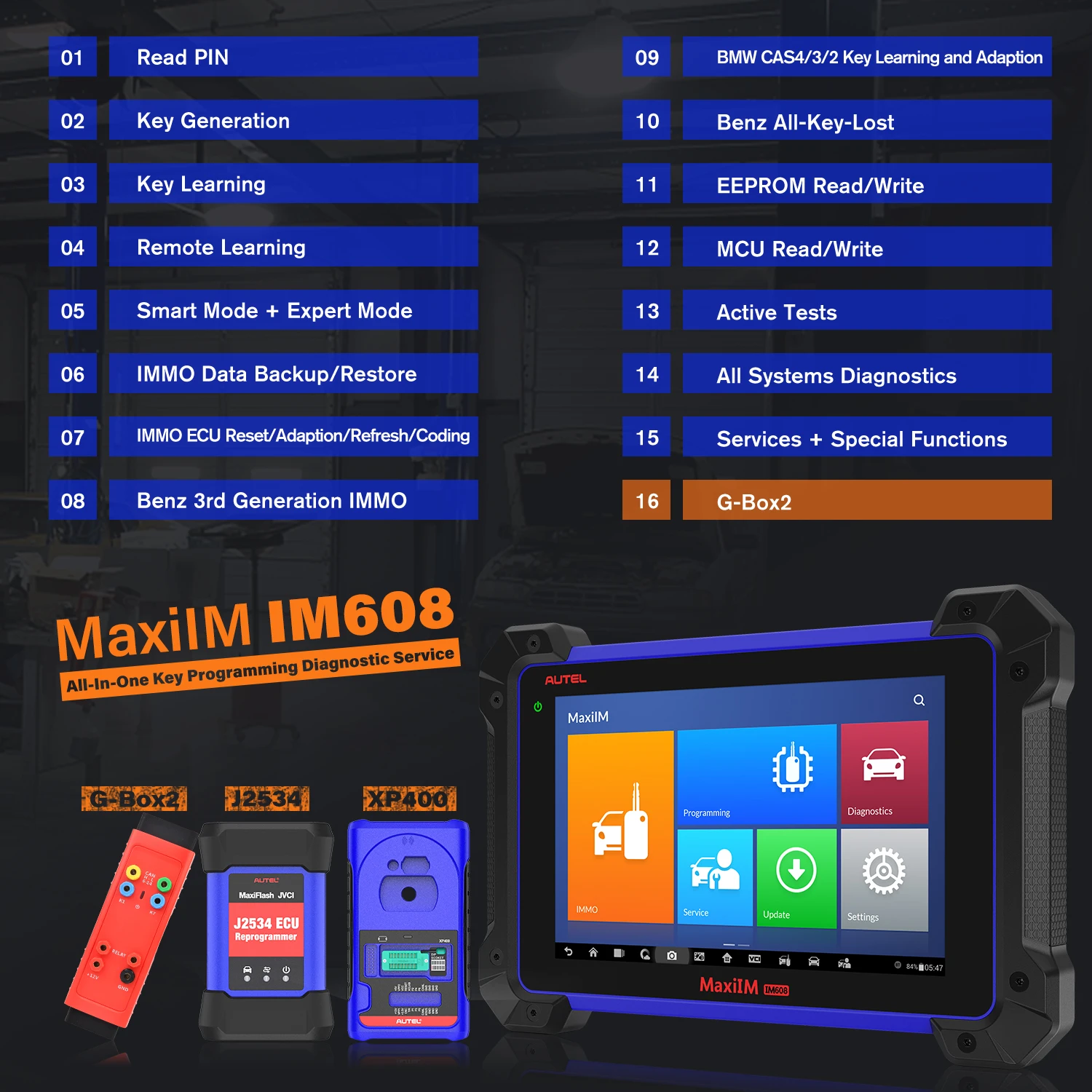

Autel MaxiIM IM608 Features :

-Extraordinarily powerful Cortex A7+A15 six-core processor-10.1-inch LED capacitive touch screen with 1920×1200 resolution-Internal reliable 64GB On-board Memory for better performance-Built-in 8-megapixel rear camera with autofocus and flashlight-802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources-Open source Android Operating System for fast boot-up and multitasking -Powerful combination of advanced key programming/all systems diagnostics/advanced maintenance services-Professional key programming equipped with XP400 key programmer and MaxiFlash ECU programmer for complete Immo coverage -Smart mode for guided and automated key learning-Expert mode for advanced key learning-Read PIN/CS (all key lost), generate key, key learning, remote learning-IMMO ECU reset/adaptation, refresh/coding -Read/write transponder data, ECU/MCU/EEPROM data (eg. 9S12 encryption chip), IC card, detect remote frequency -Powerful OE level diagnostics for more than 80 US, Asian and European makes and models -Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc. -All special functions, EPB, DPF, SAS, Oil reset, BMS, TPMS sensor ID relearn, etc.

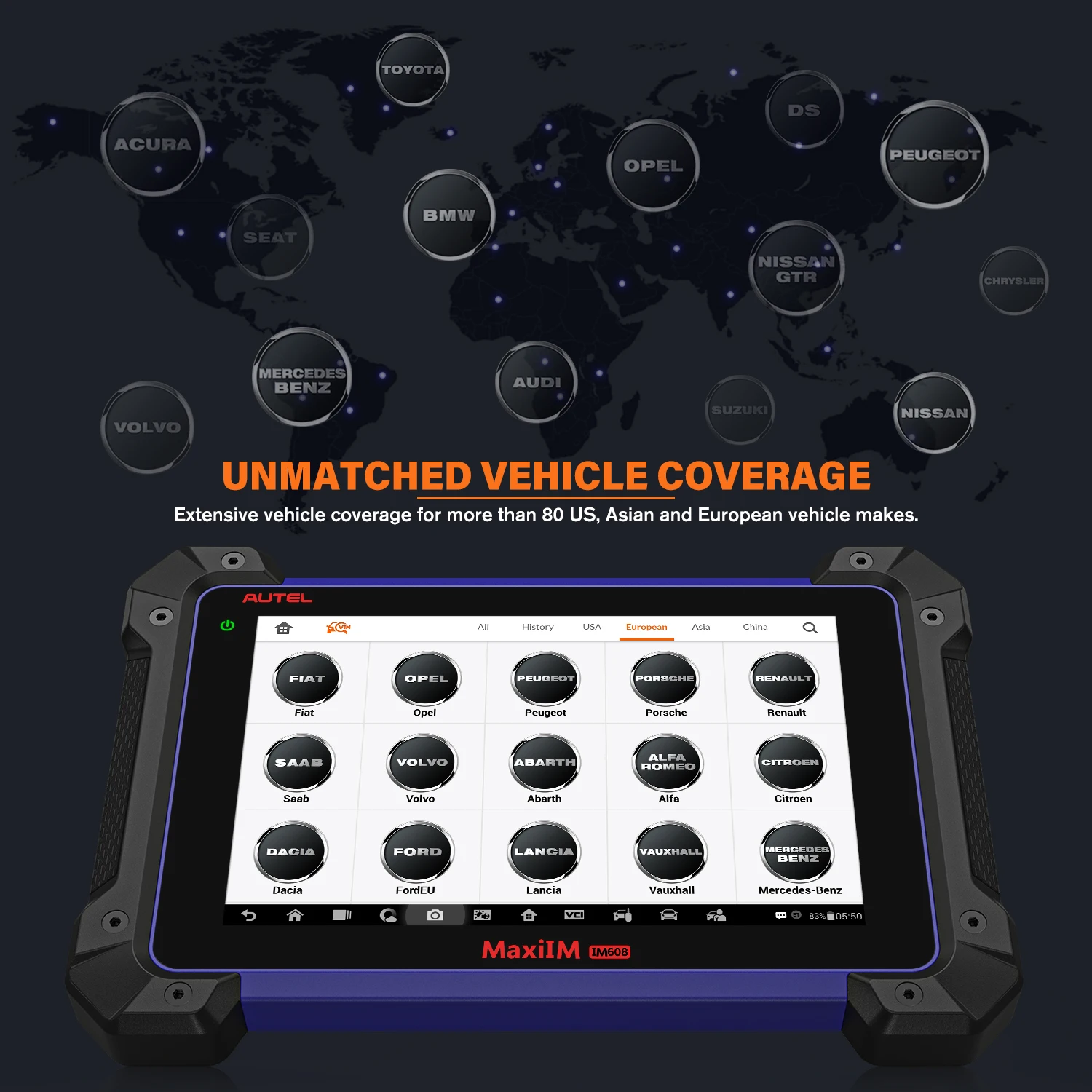

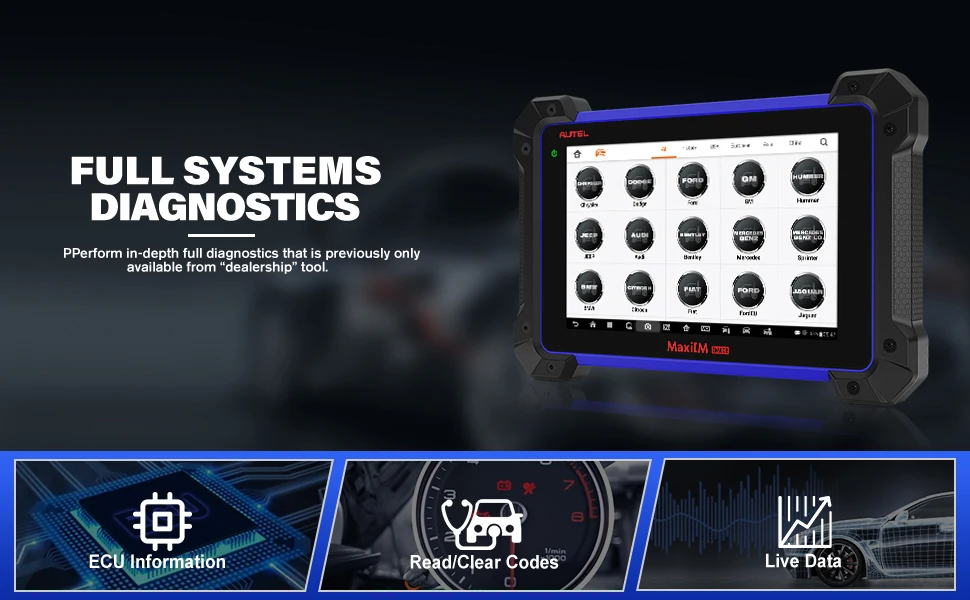

DIAGNOSTIC FUNCTION OF MORE THAN 80 VEHICLES IN ADVANCED LEVEL

·All System Diagnostics·Auto Search / VIN Finding·Reading / Deleting Error Code·Viewing the Live Data Stream·View Records of Failure History·Store and Data Management Applications·MaxiFlash JVCI ECU Programmer (Bluetooth / USB Cable)

Specifications：

Operating System : AndroidTM 4.4.2, KitKatProcessor : Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)Memory : 2GB RAM and amp; 64GB On-board MemoryDisplay : 10.1-inch LED capacitive touch screen with 1920×1200 resolutionConnectivity : -Wi-Fi (802.11 a/b/g/n/ac)-USB: 2.0-BT v.2.1 + EDR-SD Card (Support up to 32GB)-HDMICamera (rear) : 8.0 Megapixel, AF with FlashlightSensors : Gravity Accelerometer, Ambient Light Sensor (ALS)Audio Input/Output : -Microphone-Dual Speakers-3-Band 3.5 mm stereo/standard headset jackPower and Battery : -15000 mAh 3.8 V lithium-polymer battery-Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°CInput Voltage : 12 V (9-24 V)Power Consumption : 6.5 WOperating Temp. : 0 to 50°C (32 to 122°F)Storage Temp. : -20 to 60°C (-4 to 140°F)Dimensions (W x H x D) : 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)Weight : -NW: 1.42 kg (3.13 lb.) -GW: 8.655 kg (19.08 lb.)Protocols : ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

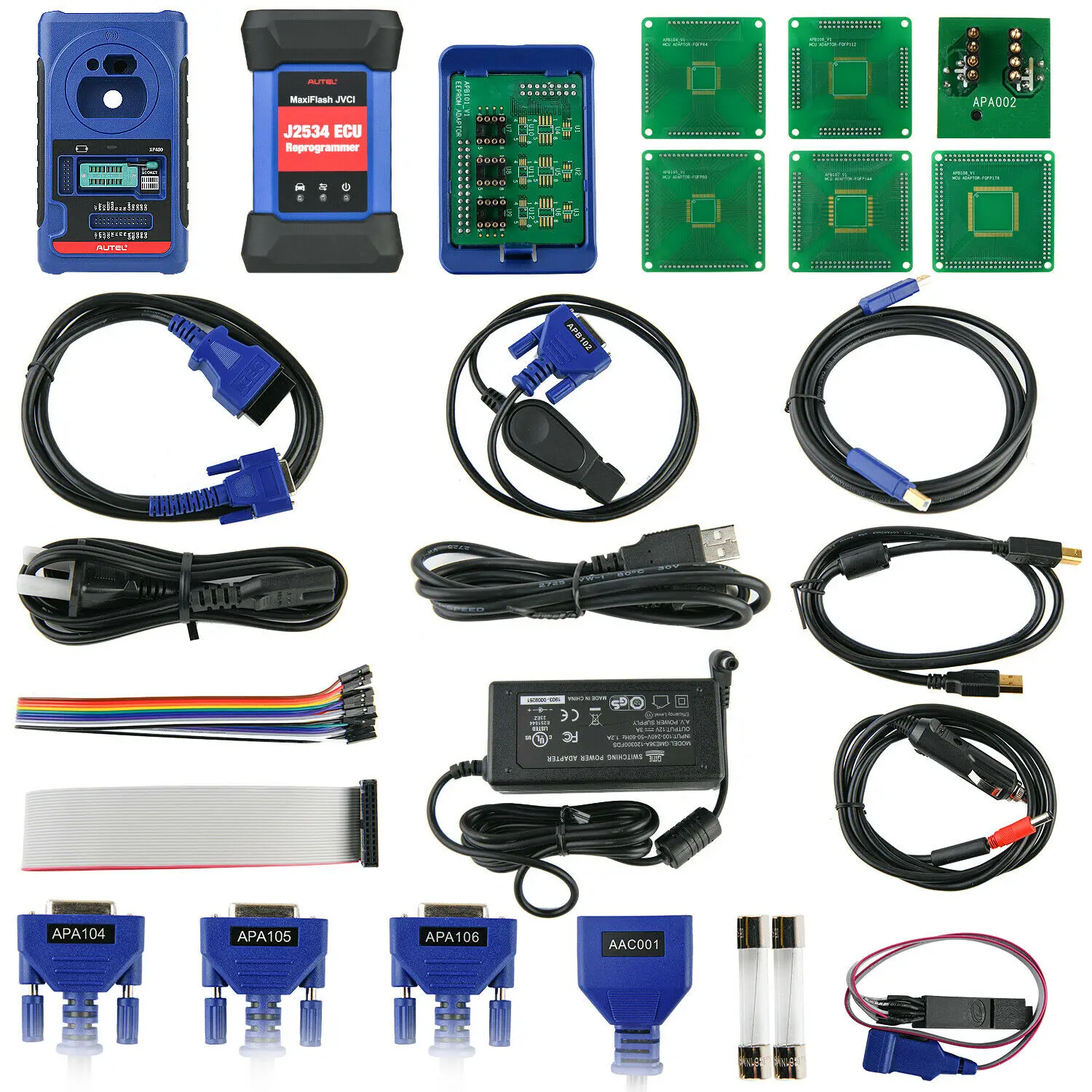

Autel MaxiIM IM608 Packling List:

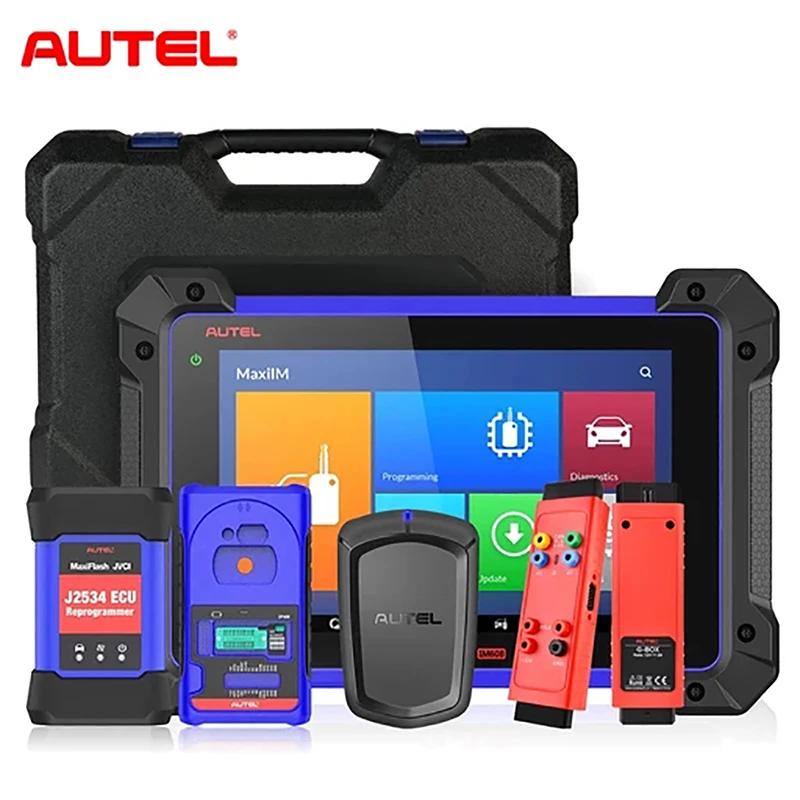

1x Autel MaxiIM IM608 Main Unit1x APC101 USB Cable1x APA101 Signal Cable1x MaxiFlash JVCI1x APB101+APD101(EEPROM Adaptor+EEPROM Adapter Shell)1x APA103(EEPROM Clamp)1x XP4001x APB102 MB IR Cable1x APA104 ECU Clamp1x Main Cable1x APB104(MCU_FQFP64)1x APA105(MCU Clamp)1x USB Cable (2m)1x APB105 MCU_FQFP801x APA106(MC9S12 Clamp)1x Mini USB Cable1x APB106(MCU_FQFP144)1x APA107(Connect Cable)1x AC/DC 12V Adapter1x APB107(MCU_FQFP144)1x Quick Reference Guide2x Light Fuse 6*30mm1x APB108(MCU_FQFP176)1x Packing List1x Cigarette Lighter1x APA002(EEPROM Socket)1x Carrying Case 634*170*404mm1x AAC001

Autel MaxiIM IM608+GBOX2 Packling List:

1x Autel MaxiIM IM608 Main Unit1x GBOX21x APC101 USB Cable1x APA101 Signal Cable1x MaxiFlash JVCI1x APB101+APD101(EEPROM Adaptor+EEPROM Adapter Shell)1x APA103(EEPROM Clamp)1x XP4001x APB102 MB IR Cable1x APA104 ECU Clamp1x Main Cable1x APB104(MCU_FQFP64)1x APA105(MCU Clamp)1x USB Cable (2m)1x APB105 MCU_FQFP801x APA106(MC9S12 Clamp)1x Mini USB Cable1x APB106(MCU_FQFP144)1x APA107(Connect Cable)1x AC/DC 12V Adapter1x APB107(MCU_FQFP144)1x Quick Reference Guide2x Light Fuse 6*30mm1x APB108(MCU_FQFP176)1x Packing List1x Cigarette Lighter1x APA002(EEPROM Socket)1x Carrying Case 634*170*404mm1x AAC001

Autel MaxiIM IM608+APB112 Packling List:

1x Autel MaxiIM IM608 Main Unit1x APB1121x APC101 USB Cable1x APA101 Signal Cable1x MaxiFlash JVCI1x APB101+APD101(EEPROM Adaptor+EEPROM Adapter Shell)1x APA103(EEPROM Clamp)1x XP4001x APB102 MB IR Cable1x APA104 ECU Clamp1x Main Cable1x APB104(MCU_FQFP64)1x APA105(MCU Clamp)1x USB Cable (2m)1x APB105 MCU_FQFP801x APA106(MC9S12 Clamp)1x Mini USB Cable1x APB106(MCU_FQFP144)1x APA107(Connect Cable)1x AC/DC 12V Adapter1x APB107(MCU_FQFP144)1x Quick Reference Guide2x Light Fuse 6*30mm1x APB108(MCU_FQFP176)1x Packing List1x Cigarette Lighter1x APA002(EEPROM Socket)1x Carrying Case 634*170*404mm1x AAC001

Autel MaxiIM IM608+APB112+GBOX2 Packling List:

1x Autel MaxiIM IM608 Main Unit1x APB1121x GBOX21x APC101 USB Cable1x APA101 Signal Cable1x MaxiFlash JVCI1x APB101+APD101(EEPROM Adaptor+EEPROM Adapter Shell)1x APA103(EEPROM Clamp)1x XP4001x APB102 MB IR Cable1x APA104 ECU Clamp1x Main Cable1x APB104(MCU_FQFP64)1x APA105(MCU Clamp)1x USB Cable (2m)1x APB105 MCU_FQFP801x APA106(MC9S12 Clamp)1x Mini USB Cable1x APB106(MCU_FQFP144)1x APA107(Connect Cable)1x AC/DC 12V Adapter1x APB107(MCU_FQFP144)1x Quick Reference Guide2x Light Fuse 6*30mm1x APB108(MCU_FQFP176)1x Packing List1x Cigarette Lighter1x APA002(EEPROM Socket)1x Carrying Case 634*170*404mm1x AAC001

One Year Global Warranty
