Note
The above quotations are all for 380V/50Hz/3Phase voltage, if you need other voltages, please contact us. Thank you
About Transportation:
Due to its large size, it can only be transported by sea.We can transport the machine to the port of the destination country. The above price does not include freight, please contact us for specific freight, we will verify the cheapest freight for you.We are very sorry for the inconvenience caused, and thank you for your understanding.
Details
YEL-7.5F
Model: YEL-7.5FTypes: Fixed SpeedVoltage: 380V/50HZ/3PhasePressure and displacement: 7bar(0.7Mpa) 42CFM(1.2m3/min)8bar(0.8Mpa) 39CFM(1.1m3/min)10bar(1.0Mpa) 35CFM(0.9m3/min)12bar(1.2Mpa) 25CFM(0.7m3/min)Gas tank: 300LSize: 950x670x1030mmWeight: 250kgPackage： Wooden Box
YEL-7.5V
Model: YEL-7.5VTypes: Permanent magnet frequency conversionVoltage: 380V/50HZ/3PhasePressure and displacement: 7bar(0.7Mpa) 42CFM(1.2m3/min)8bar(0.8Mpa) 39CFM(1.1m3/min)10bar(1.0Mpa) 35CFM(0.9m3/min)12bar(1.2Mpa) 25CFM(0.7m3/min)Gas tank: 300LSize: 950x670x1030mmWeight: 250kgPackage： Wooden Box
YEL-11F
Model: YEL-11FTypes: Fixed SpeedVoltage: 380V/50HZ/3PhasePressure and displacement: 7bar(0.7Mpa) 56CFM(1.6m3/min)8bar(0.8Mpa) 53CFM(1.5m3/min)10bar(1.0Mpa) 46CFM(1.3m3/min)12bar(1.2Mpa) 39CFM(1.1m3/min)Gas tank: 350LSize: 1150x820x1130mmWeight: 400kgPackage： Wooden Box
YEL-11V
Model: YEL-11VTypes: Permanent magnet frequency conversionVoltage: 380V/50HZ/3PhasePressure and displacement: 7bar(0.7Mpa) 56CFM(1.6m3/min)8bar(0.8Mpa) 53CFM(1.5m3/min)10bar(1.0Mpa) 46CFM(1.3m3/min)12bar(1.2Mpa) 39CFM(1.1m3/min)Gas tank: 350LSize: 1150x820x1130mmWeight: 400kgPackage： Wooden Box
YEL-15F
Model: YEL-15FTypes: Fixed SpeedVoltage: 380V/50HZ/3PhasePressure and displacement: 7bar(0.7Mpa) 87CFM(2.5m3/min)8bar(0.8Mpa) 81CFM(2.3m3/min)10bar(1.0Mpa) 73CFM(2.1m3/min)12bar(1.2Mpa) 66CFM(1.9m3/min)Gas tank: 350LSize: 1150x820x1130mmWeight: 400kgPackage： Wooden Box
YEL-15V
Model: YEL-15VTypes: Permanent magnet frequency conversionVoltage: 380V/50HZ/3PhasePressure and displacement: 7bar(0.7Mpa) 87CFM(2.5m3/min)8bar(0.8Mpa) 81CFM(2.3m3/min)10bar(1.0Mpa) 73CFM(2.1m3/min)12bar(1.2Mpa) 66CFM(1.9m3/min)Gas tank: 350LSize: 1150x820x1130mmWeight: 400kg

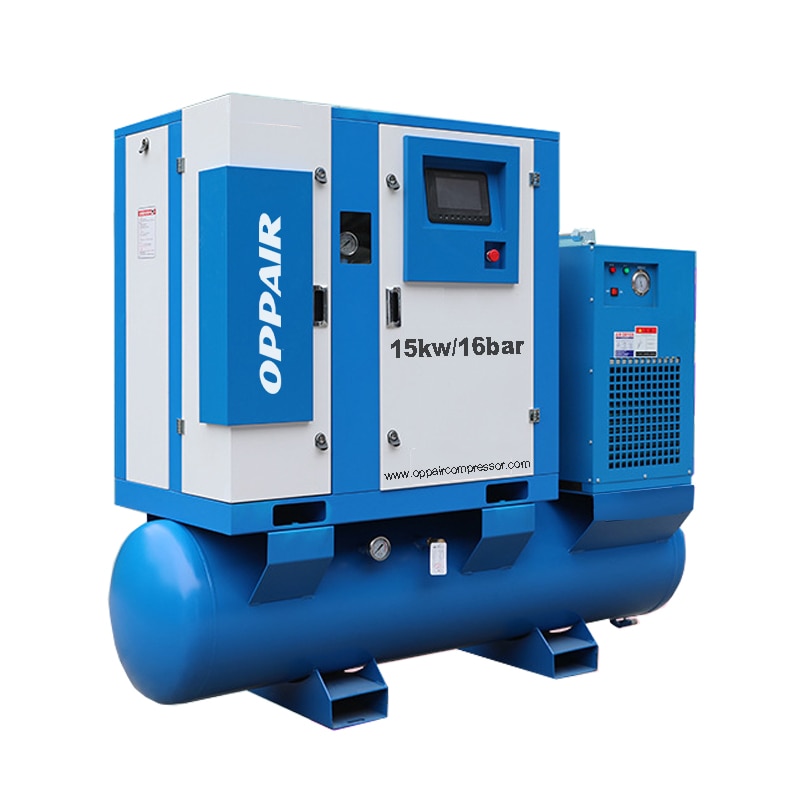

YELH-15F
Model: YELH-15FTypes: Fixed SpeedVoltage: 380V/50HZ/3PhasePressure and displacement: 16bar(1.6Mpa) 67CFM (1.9m3/min)Gas tank: 350LSize: 1150x820x1130mmWeight: 400kg
YELH-15V
Model: YELH-15VTypes: Permanent magnet frequency conversionVoltage: 380V/50HZ/3PhasePressure and displacement: 16bar(1.6Mpa) 67CFM (1.9m3/min)Gas tank: 350LSize: 1150x820x1130mmWeight: 400kg

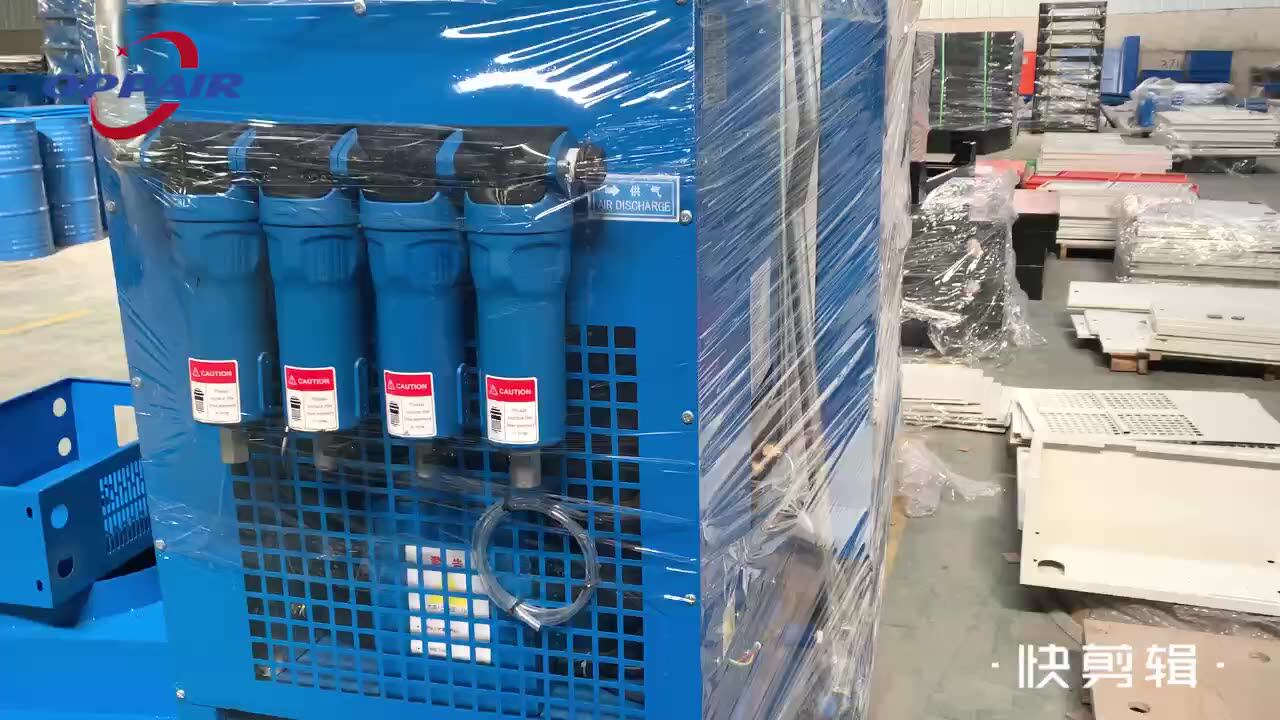

Package
We use high-quality wooden boxes for packaging, and strong wooden boxes can protect the machine from any damage to the destination.
Post-maintenance
We provide technical support for later maintenance. The air filter, oil filter, and oil separator need to be replaced regularly. For details, please refer to the following table. If you do not know how to operate, we can send you a video of the operation. At the same time, we also provide matching air filters, oil filters, and oil separators.
FAQ
1. How long is your product warranty?Usually the whole machine is guaranteed for one year2. Does your price above include transportation costs?The above prices do not include transportation costs. The air compressor is a large machine and cannot be transported by international express.3. What voltage can you provide?The above quotations are all default 380V/3P/50HZWe provide customized services for different voltages worldwide. E.g:380V/3P/50HZ380V/3P/60HZ220V/3P/60HZ440V/3P/50HZ4. How soon can I receive the machine?Different countries have different times. For example, South Korea can arrive in two days, but it takes about 30 days in South America. Please contact our customer service for the specific time, and we will give you a specific calculation.5. How long is the lead time?We have regular machines in stock and can ship them immediately. The delivery time of customized voltage is relatively long, about 10-20 days.6. How to pay?We support T/T wire transfer.7. What should I do after maintenance?Our machines are easy to maintain and operate in the later stages. We support the sale of later maintenance parts, and later customers only need to operate according to our prompts. For inexperienced customers, we can provide video guidance.8. How to transport?Generally by sea. Some countries in Central Asia need rail transportation.9. Do you have a website?Yes. www.oppaircompressor.comWe have been engaged in the air compressor business for more than 15 years. Quality is guaranteed.
Other Details
Delivery time: 15 days after receipt of payment (voltage: 380V/50HZ/3P). The delivery time for other voltages is: 25 days.Warranty: The whole machine is guaranteed for 12 months.Customs clearance information: We will do our best to assist customers in completing customs clearance at the destination port. Within two weeks of the machine leaving the Chinese port, we will send the relevant customs clearance information via Fedex or DHL.Whether to provide a certificate of origin: You can provide a certificate of origin, if necessary, please inform us in advance. Thank you. We must fully cooperate with customers in customs clearance.Welcome Inquiry!
