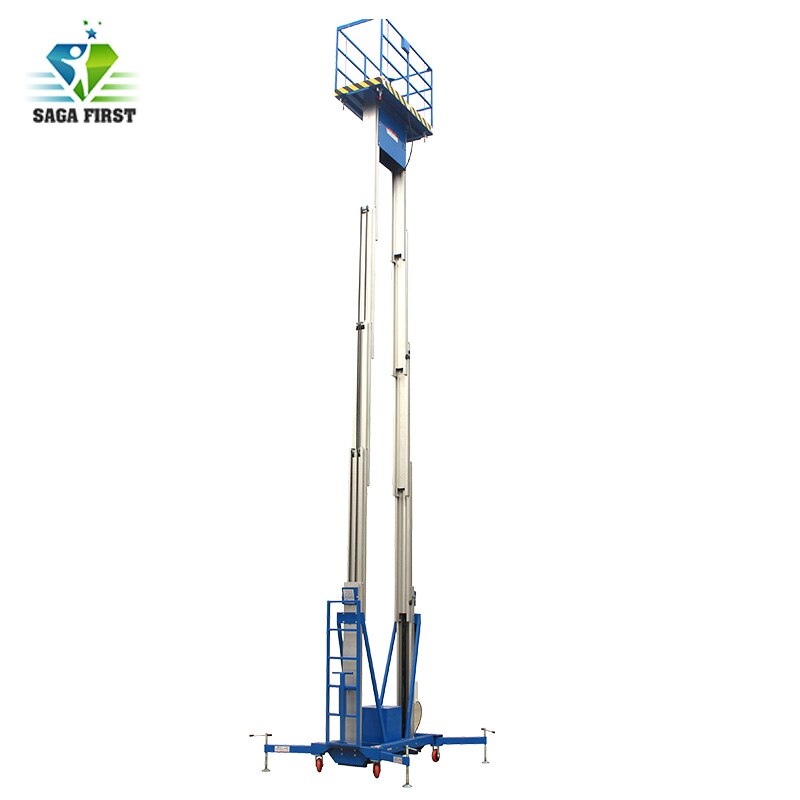

6M Dual Mast Adjustable Work Platform Aluminum
– OEM and amp; ODM Service –
| Name | Model No. | Max.Platform Height(M) | Load Capacity(KG) | Platform Size(M) | Voltage(V) | Power(KW) | Net Weight(KG) | Overall Size(M) |
| Single Mast | SMA6-1 | 6 | 125 | 0.62*0.62 | Customized | 0.75 | 300 | 1.3*0.82*2.0 |
| SMA8-1 | 8 | 125 | 0.62*0.62 | 0.75 | 320 | 1.3*0.82*2.0 | ||
| SMA9-1 | 9 | 100 | 0.62*0.62 | 0.75 | 345 | 1.3*0.82*2.2 | ||
| SMA10-1 | 10 | 100 | 0.62*0.62 | 0.75 | 370 | 1.3*0.82*2.2 | ||
| Dual Mast |
DMA6-2 | 6 | 250 | 1.38*0.6 | 1.5 | 480 | 1.45*0.88*1.75 | |
| DMA8-2 | 8 | 250 | 1.38*0.6 | 1.5 | 560 | 1.55*0.88*2.05 | ||
| DMA9-2 | 9 | 250 | 1.38*0.6 | 1.5 | 620 | 1.55*0.88*2.05 | ||
| DMA10-2 | 10 | 200 | 1.38*0.6 | 1.5 | 680 | 1.55*0.88*2.05 | ||
| DMA12-2 | 12 | 200 | 1.48*0.6 | 1.5 | 780 | 1.65*0.88*2.05 | ||
| DMA14-2 | 14 | 200 | 1.58*0.6 | 1.5 | 980 | 1.75*0.88*2.25 | ||
| THREE MAST | TMA14-3 | 14 | 200 | 1.58*0.8 | 1.5 | 1060 | 1.9*1.2*2.5 | |
| TMA15-3 | 15 | 200 | 1.58*0.8 | 1.5 | 1120 | 1.9*1.2*2.5 | ||
| TMA16-3 | 16 | 200 | 1.58*0.8 | 1.5 | 1200 | 2.0*1.2*2.5 | ||
| FOUR MAST | FMA14-4 | 14 | 200 | 1.58*0.8 | 2.2 | 1350 | 2.1*1.2*2.25 | |
| FMA15-4 | 15 | 200 | 1.58*0.8 | 2.2 | 1420 | 2.1*1.2*2.55 | ||
| FMA16-4 | 16 | 200 | 1.58*0.8 | 2.2 | 1520 | 2.1*1.4*2.68 | ||
| SIX MAST | SMA16-6 | 16 | 160 | 1.58*0.88 | 2.2/1.5 | 1580 | 2.26*1.4*2.3 | |
| SMA18-6 | 18 | 160 | 1.58*0.88 | 2.2/1.5 | 1680 | 2.26*1.4*2.3 | ||
| SMA20-6 | 20 | 160 | 1.58*0.88 | 2.2/1.5 | 1780 | 2.26*1.4*2.3 | ||
| SMA21-6 | 21 | 160 | 1.58*0.88 | 2.2/1.5 | 1880 | 2.26*1.4*2.3 | ||
| TILTABLE FOUR MAST | TFMA18-4 | 18 | 160 | 1.6*0.88 | 3.0/1.5 | 1680 | 3.1*1.4*2.2 | |
| TFMA20-4 | 20 | 160 | 1.6*0.88 | 3.0/1.5 | 1850 | 3.9*1.4*2.2 | ||
| TFMA22-4 | 22 | 160 | 1.6*0.88 | 3.0/1.5 | 1900 | 3.9*1.4*2.2 | ||
| TFMA24-4 | 24 | 160 | 1.6*0.88 | 3.0/1.5 | 2200 | 4.3*1.4*2.3 |
SAGA FIRST Aerial Work Platforms are high-quality lifting platform with capacity 100kg~250kg, the working height 6M~24M. We can also provide customer two types option like wireless controller and durable battery and we will try to fulfill all customers’ need.
Product Description
Aerial Work Platforms is famous for its light weight and high lift. Aerial Work Platforms are widely use in outdoors and indoors working, such as warehouse, home, hotel, airport and so on. It becomes a ideal equipment for aerial working.
Advantage:
1. AC power, DC power and AC and amp; DC power.
2. Made by aluminum alloy material, light weight is suitable for one man operation.
3. Special mast and roller device between the mast. the stability is good.
4. Support legs structure of dual protection, make the working more security.
5. Equipped with emergency stop button, prevent accidents from happening when using.
6.Equipped with Emergency Decline Valve, Overflow Valve, One Way Valve, Adjustment Valve to guarantee the complete safety of the lift platform.
Detailed Images
Safety Precautions:
1. One Way Valve 2. Adjustment Valve
3. Emergency decline valve 4. Overflow Valve
5. Emergency Stop Button 6. Support Legs Lock
Options:
SAGA FIRST can also provide customer many options like wireless controller, DC with Battery, rubber wheels,inclined portable structure,driving wheels and so on, customer can provide their need to SAGA FIRST, and we will try to fulfill all customers’ need.
Applications:
Man Lift Work Access Platforms is widely used for the equipment installations and maintenance such as construction sites workshops, warehouse, granary, theatre or museum, bus/railway stations, hotels, airports, gas station and aerial pipeline. Non-trace universal polyurethane wheels used will be no damage to ground. AC power or battery power make the low noise when using.
Certifications:
All of Access Platforms are approved by European certificates and meet the international standards.
