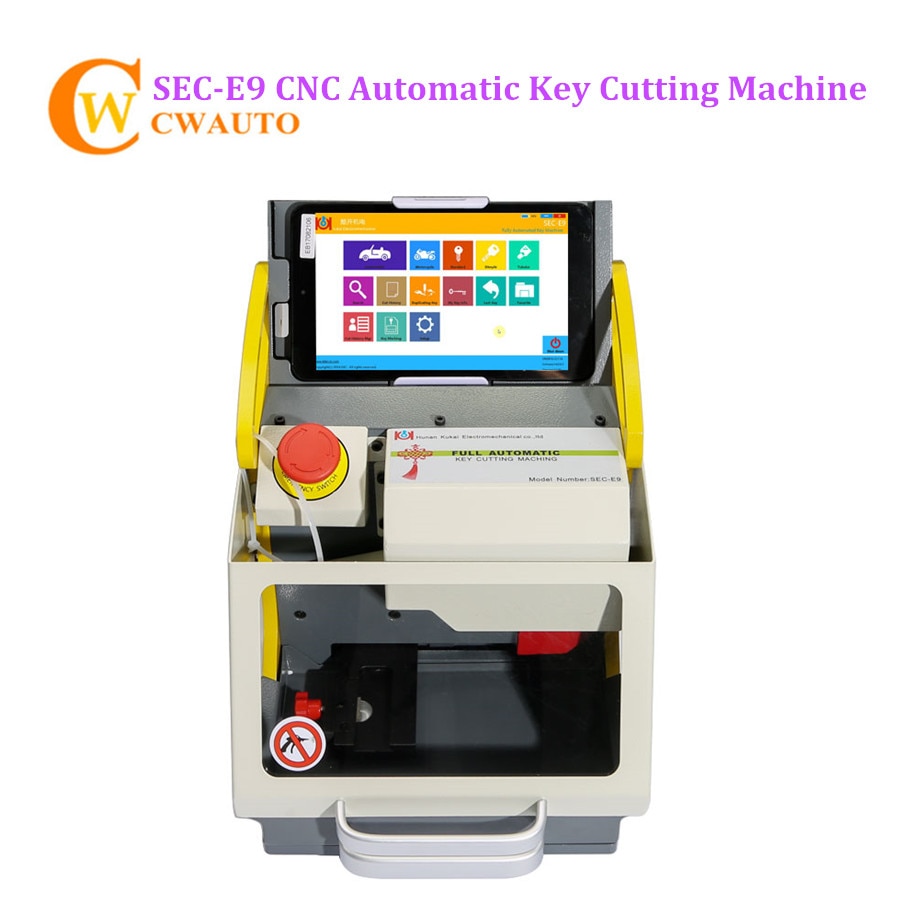

SEC-E9 CNC Automatic Key Cutting Machine

Top 10 Reasons to Get SEC-E9 CNC Automatic Key Cutting Machine:
1. Can directly search key bitting number by key code for some keys. No need to search from Instacode
2. Can cut a new key by bitting number, when original key is lost.
3. Support 10 languages including English, Spanish,French,German,Italian,Korean,Portuguese,Russian, Turkish, Czech.
4. Can cut veritcal milling, flat milling, internal milling and external milling.
5. Can cut automobile keys,motorcycle keys ,dimple keys, tubular keys, and single-sided standard keys.
6. Can cut Tibbe keys and LDV keys
7. Auxiliary Clamp is available
8. CE Approved
9.  Work on Car, Truck, Motorcycle, House Key, Dimple and amp; Tubular Keys
10. Update Online for Free

SEC-E9 Key Cutting Machine Update Guide

1. Click “Setup”

2. Click”Wifi”

3. Connect Wifi

4. Press “UpdateCheck” after the wifi is connected successfully.
( Please notice that you just need to click the “UpdateCheck” once, no need to click it repeatedly)

5. Click “Upgrade” button

6. After upgrading successfully, the tablet PC will automatically jump to the main page.

Notice
1. Please keep the Wifi conncted when upgrade
2. Please keep the network smooth
3. Please do not turn off tablet PC when upgrading
4. Please do not operate the tablet PC when downloading the upgrade files.
5. Please disconnect Wifi after upgrade is done. ( otherwise the system will generate garbage when tablet PC updates automatically . Also cause the system to run slowly.)


SEC-E9 CNC Automatic Key Cutting Machine
Built-in database, support key missing teeth inquiry;
Light weight, small size, easy to work out;
Equipped with two spindle belts, decoder and cutter;
Interpretation and cutting can be completed at one time;
Support plain milling key, face milling key, Allen key(F021), Stiletto key andCylinders key;
Repair the wear keys to recover the original precision.

SEC-E9 Automated Key Cutting Machine Specification:

Product name: SEC-E9 Fully Automated Key Cutting Machine
Product No.: SEC-E9
Dimension: 255(W) * 360(H) * 340(D)m
Weight: 19.5KG
Resolution: XY: 0.005mm   Z: 0.0015mm
Spindle Revolution: 16000+rp
Temperature: 0- 40
Humidity: 10-90
Usage : The duplicating and cutting of automobile keys and domestic key.

HOW TO USE SEC-E9 Key Cutting Machine:

DETAILS PARAMETER:


DETAILS OF DISPLAY:

Embedded 8-inch Tablet PC
Embedded 8-inch Tablet PC offers easier   key cutting capability with graphical user interface.

Equipped with both decoder and cutter
Quick and easy duplication of key is available.

Various types of key cutting supported
-Automobile key (including ford tibbe)
-Dimple key
-Single-sided domestic key
-Tubular key

Replaceable vise
Various kinds of replaceable clamps are available for easy key cutting.

Spindle driven by two spindle belts
Supplied with two spindle belts to ensure high-torque key cutting without loss of cutting speed.

Wide and brighter LED light
long-life imported lamp beads

SEC-E9 Clamp Replacement Cautions:
When you fix the clamp by pressing the lever,the clamp origin may be changed or the clamp may get shaken.Make sure to turn the lever to fix the clamp.


                  Never fix the clamp by pressing                     Make sure to fix the clamp by turning

SEC-E9 Key Fixation

SEC-E9 is a key cutting machine to cut the vehicle key,as well as various kinds of keys.It provides the clamp and stopper to fix various kinds of keys easily and quickly.The key fixing method is as follows.

Top and Botton Clamp:
The key can be held on top or botton of clamp depending on the type of key.Edge or double sided non laser keys are always held on top clamp.Laser key can be held on either,but using bottom clamp is recommended.

          Fixing a Key on Top Clamp:(Mostly Edge or Double-Sided Non Laser Keys)


          Fixing a Key on Bottm Clamp:(Mostly Laster Keys)


SEC-E9 Key Cutting   Machine   Stopper:
Stopper shown in the left figure is used to align key correctly.Insert the stopper into proper groove.
The place a key making its shoulder or tip touch this stopper.

Use Right-to-Left Stopper Block to hold laser key with short length.

Standard Key:(Single and amp; Double-Sided Key)


1.Put the stopper in the stip of Shoulder Align Stop.
2.Place the key shoulder to touch the stopper and fasten the clamp tighten han

SEC-E9 Key Cutting Machine Standard Package
