Name:  2018 Hot Skylab Wifi Module Mqtt Web Server Sdk At Commands Programmed Firmware Library Pinout Esp8266 Wifi For Arduino Ide

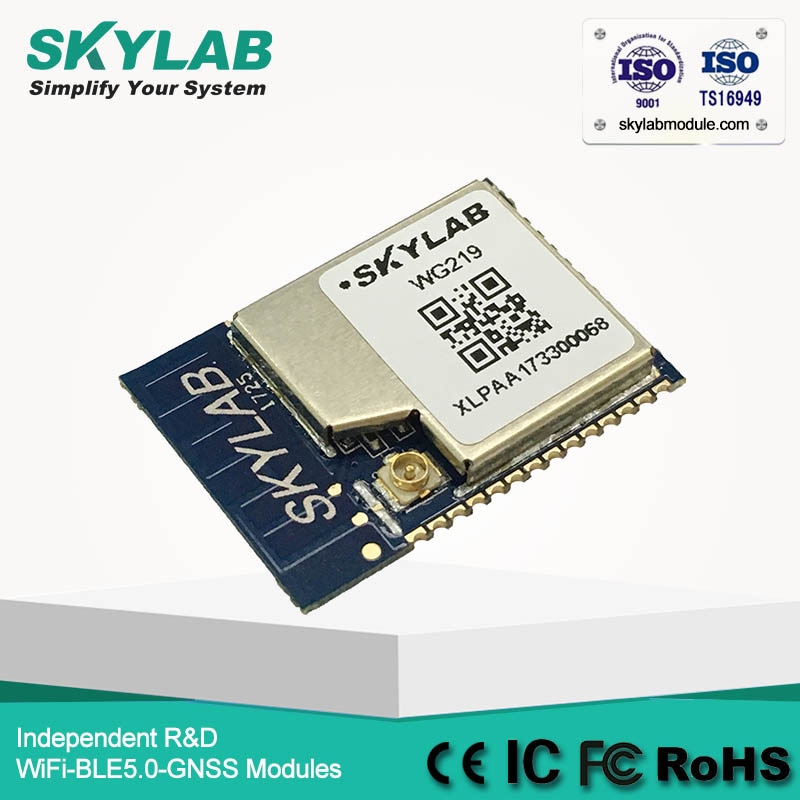

Model No.:  WG219

The WG219 Wi-Fi Module is a small form-factor, single stream, 802.11b/g/n WiFi module with on-board low power application processor. It is a low cost serial WiFi module, support UART-WiFi – Ethernet data transmission.

The WG219 has been optimized for client applications in the home, enterprise, smart grid, home automation and control that have lower data rates and transmit or receive data on an infrequent basis. The WG219 Wi-Fi Module also enables rapid application development of ultra low power devices with the complete application SW on-chip . This combination makes the WG219 Wi-Fi Module an ideal solution for low power automation and sensor solutions because of its high efficiency and low power consumption.

The WG219 Wi-Fi Module can be used to design applications using 802.11b/g/n communication protocols. All features are enhanced by a built-in antenna, external antenna connector and an interface port to the carrier board. This interface port includes power supply pins, GPIO ports and UART ports.



◆802.11 b/g/n/e/i

◆802.11 n (2.4 GHz), up to 72.2  Mbps

◆802.11 e: QoS for wireless multimedia technology

◆AT Set, Cloud Server, App

◆A-MPDU and A-MSDU aggregation

◆Network Protocols: IPv4, TCP/UDP/HTTP/FTP

◆Fragmentation  and  defragmentation

◆Automatic Beacon  monitoring/scanning

◆802.11 i security features: pre-authentication and TSN

◆Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS)

◆Infrastructure BSS Station mode/Soft  AP mode

◆Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management

◆UMA compliant and certified

◆Antenna diversity and  selection

◆RoHS compliance (Lead-free)

◆FCC,CE  compliance



Applications

◆  IoT (internet of things)

◆  Network Consumer Device

◆  Metering

◆  Building Automation

◆  Home Automation

◆  Smart Home Gateway

◆ Smart Lighting

◆  Smart Plugs and Lights

◆  Baby Monitors

◆  Mesh Network

◆  Sensor Network

◆ Industry Control



Dimesion:  25.5mm*18.0mm*3.2mm



●  RoHS compliant(Lead -free)

●  Qualification according to ISO9001:2008

●  Manufactured in ISO9001,TS16949 certified production sites
