WIFI Smart Touch Thermostat LCD Screen Backlight Water Heating Electirc Floor Heating Water Gas Boiler Temperature Controller Wireless Remote Voice Control Tuya Smart Life App work with Amazon Alexa Google Assistant

Note:

Model: BHT-600-GA/BHT-002-GB/BHT-002-GC Do not include Wi-Fi Function.Model: BHT-600-GALW/BHT-002-GBLW/BHT-002-GCLW/ Include Wi-Fi Function.Sensor is not included for GA/GC. If needed, choose sensor also.

Model Definition:

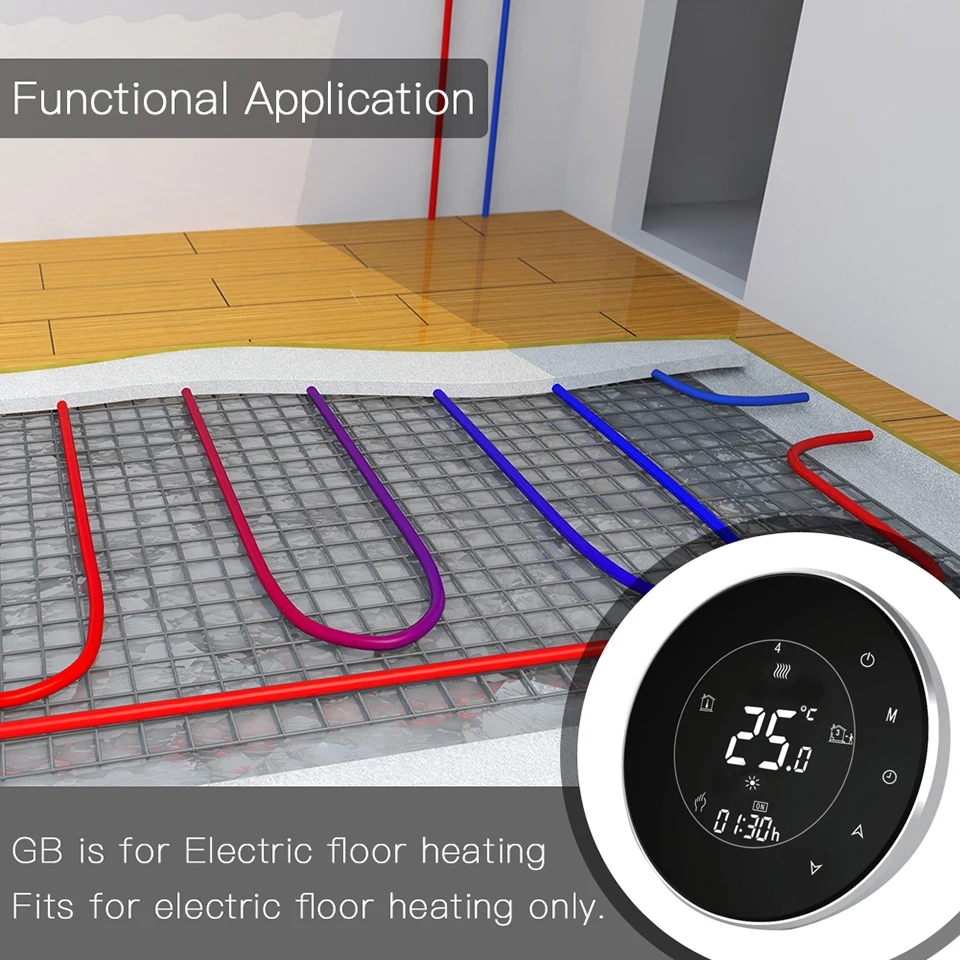

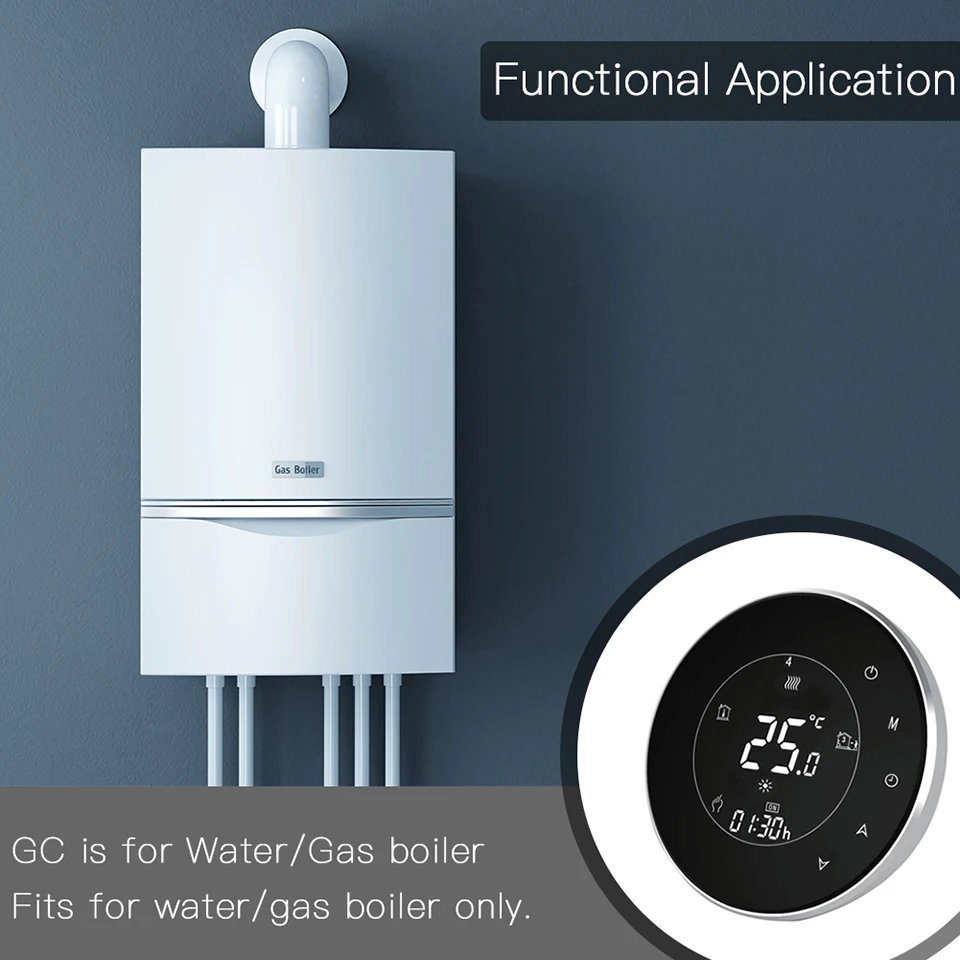

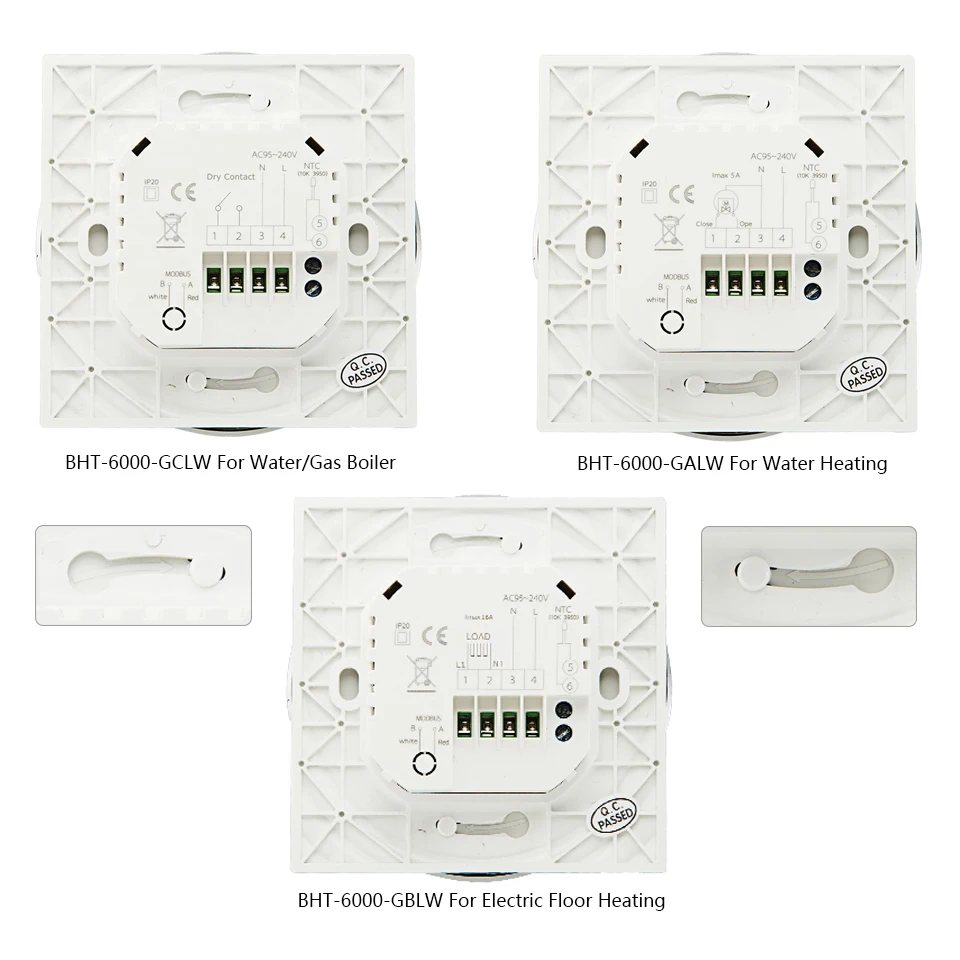

[BHT-6000-GA]: Water Heating 3A[BHT-6000-GB]: Electric Floor Heating 16A[BHT-6000-GC]: Water/Gas Boiler 3A[BHT-6000-GALW]: Water Heating Wifi Voice Contorl 3A[BHT-6000-GBLW]: Electric Floor Heating Wifi Voice Control 16A[BHT-6000-GCLW]: Water/Gas Boiler Wifi Voice Control 3AModbus or RS485 is Optional. If needed, contact us.

On Functionality

1. Powerful Functions Are Available Such as BACnet/Modbus/Wifi etc.2. 0.5℃ Accuracy Keeps temperature within the level you set3. Data Memory when power is off4. 5+2 Six periods Programmable Maximize Comfort and Economy

Technical Data

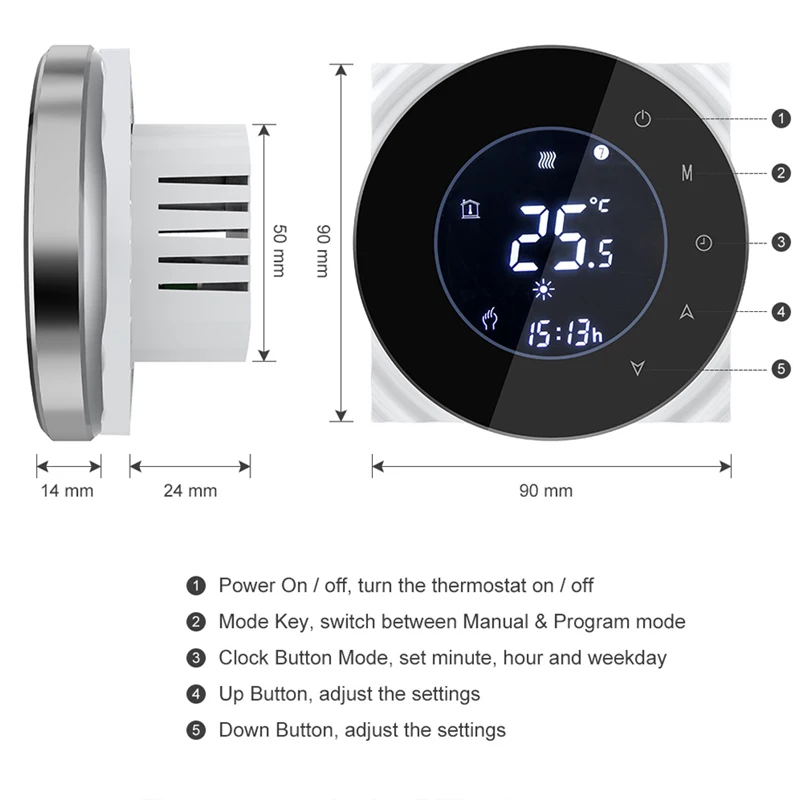

Type: Water Heating/Electric Heating/Water Gas BoilerSensor: NTC, 10KAccuracy: ±0.5℃ or ±0.1℉Set Temp. Range: 5-35℃Room Temp. Range: 5-99℃Power Consumption: ＜1.5WTiming Error: ＜1%Power Supply: 95-240VAC, 50-60HzCurrent Load: 3A(Water heating, water/gas boiler) | 16A(Electric heating)Shell Material: PC+ABS(Flame retardant)Dimension: 86x86x13.3mmAmbient Temp.: 0-45℃, 5-90% RH (non-condensing)Storage Temp.: -5-45℃Installation Hole Distance: 60mmProtection Level: IP30Buttons: Capactive Touch ButtonsWire Terminals: Wire 2*1.5mm² or 1*2.5mm²

Packing List

Thermostat x1 + Screw x2 + English Manual x1Floor Sensor is included for Electric floor heating thermostat. GA and GC is not included, if needed, choose together when place order.

What He Can Offering

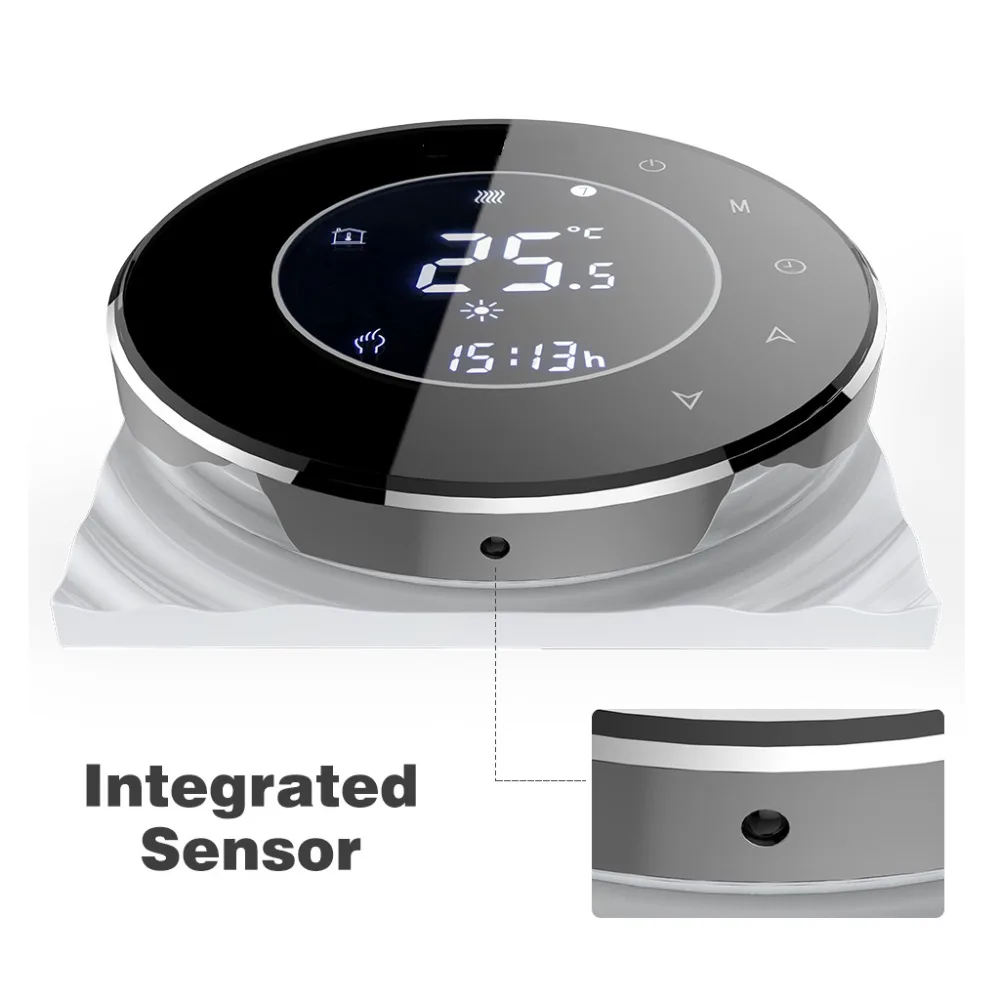

1. [Energy Saving]: Low consumption and energy saving. Help you save money2. [ Program]: Thermostat works automatically during holidays in programmable mode.3. [Kid Lock]: Kids lock function avoid kids mis-operate the thermostat4. [Dual Sensor]: Integrated Sensor to measure air temperature5. [Memory]: Built-in Battery, setting can be recovery even cutting electric power or power failure

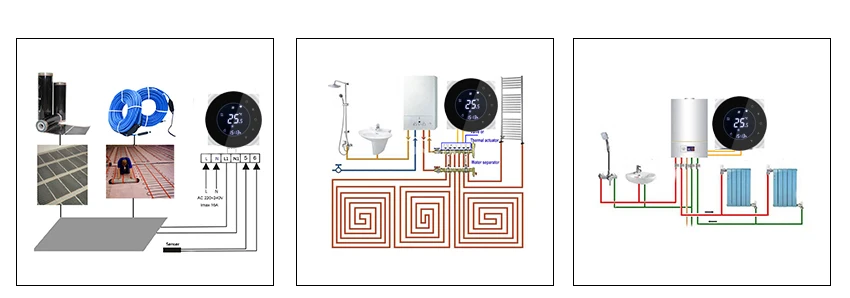

GB GA GC

Smart Life Tuya APP Remote Control

remotely control your devices where you are even when you are outside.

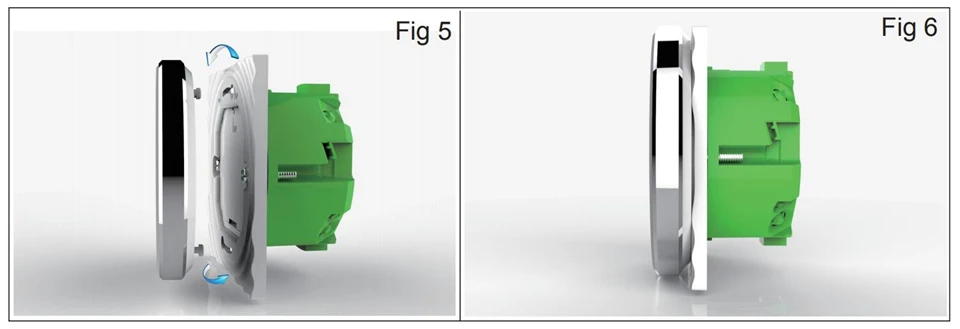

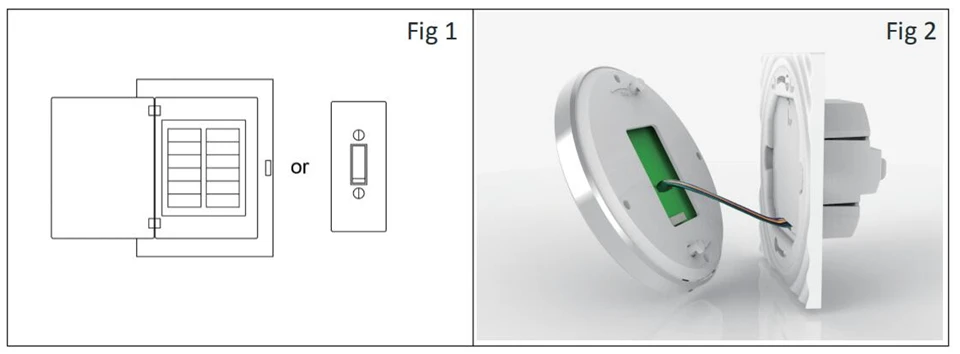

INSTALLATIONYour thermostat is suitable foe installation within a standard 86mm pattress box or European 60mm pattress boxStep 1. Keep power off. See Fig 1Step 2. Remove the mounting Plate by rotating the LCD part. See Fig 2.Step 3. Connect power supply, load into the appropriate terminals. (see “Wiring your thermostat” for details and Fig 3).Step 4. Fix the mounting plate into the wall with screws in the box. See Fig 4.Step 5. Fasten body of the thermoatat and the mounting plate through rotating. See Fig 5.Step 6. Installation complete. See Fig 6.
